CDD6B Martin Audio · Passive Loudspeakers
6" Passive Coaxial Differential Dispersion On-wall Loudspeaker
The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.
Overview
CDD6B at a Glance
6.5'' CDD Speaker Black
Description
About the CDD6B
Manufacturer detail for the CDD6B by Martin Audio.
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD6 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
Specifications
Technical Specifications
Full published figures for the CDD6B by Martin Audio.
- TYPE
- Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5)
- 80Hz-20kHz ± 3dB, -10dB @ 70Hz
- DRIVER
- LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system
- RATED POWER (2)
- 150W AES, 600W peak
- SENSITIVITY (8)
- 91dB
- MAXIMUM SPL (9)
- 113dB continuous, 119dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110˚-80˚ horizontal, 80˚ vertical (user-rotatable)
- CROSSOVER
- 2.5kHz passive
- ENCLOSURE
- 9 litre, composite material
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
Show all 18 specifications Show fewer specifications
- CONNECTORS
- Low profile 13A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link +
- FITTINGS
- 4 x M6 inserts for wall/ceiling brackets

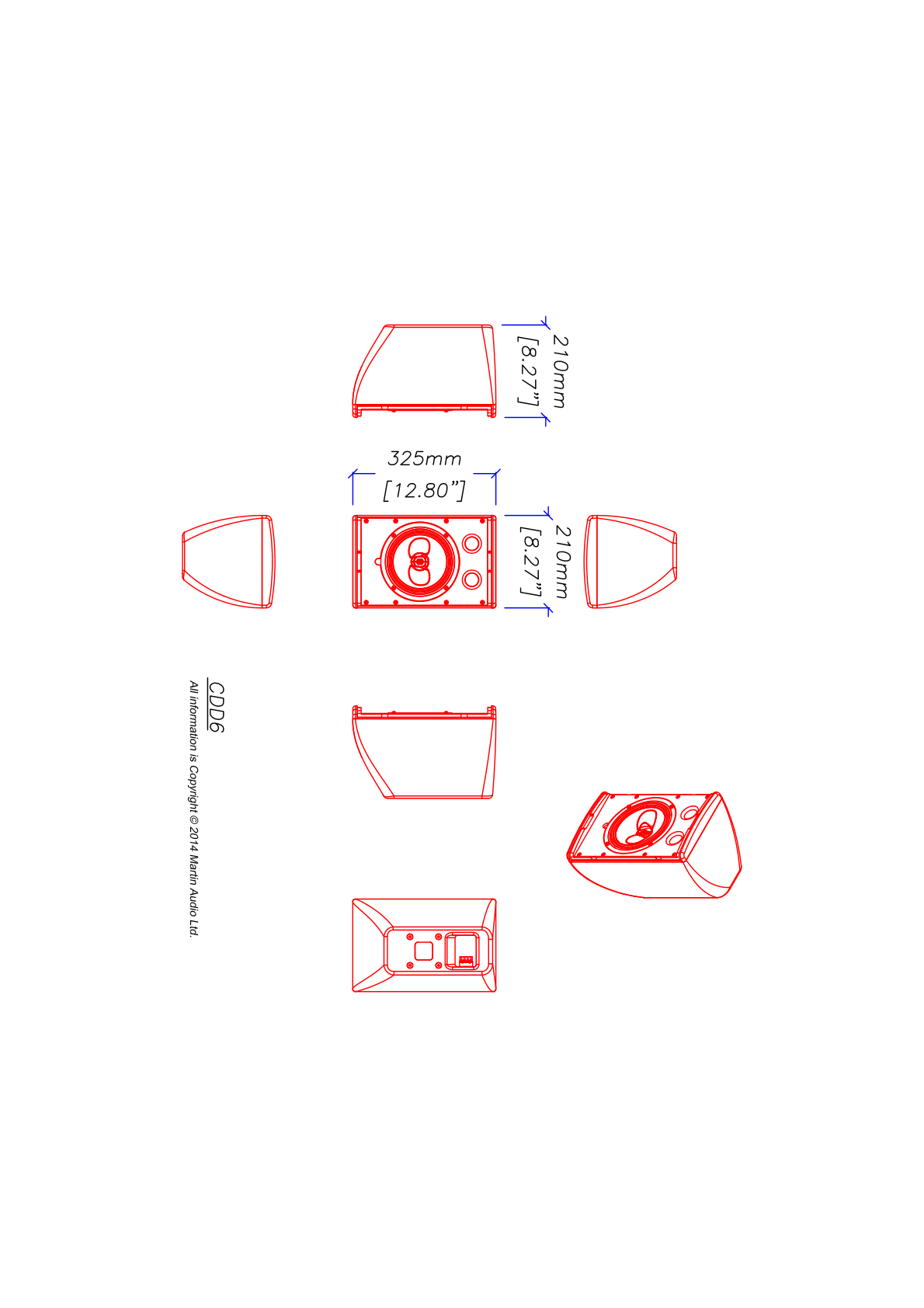

- DIMENSIONS
- (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
- WEIGHT
- 5.69kg (12.54lbs)
- Power Consumption
- 150 W
