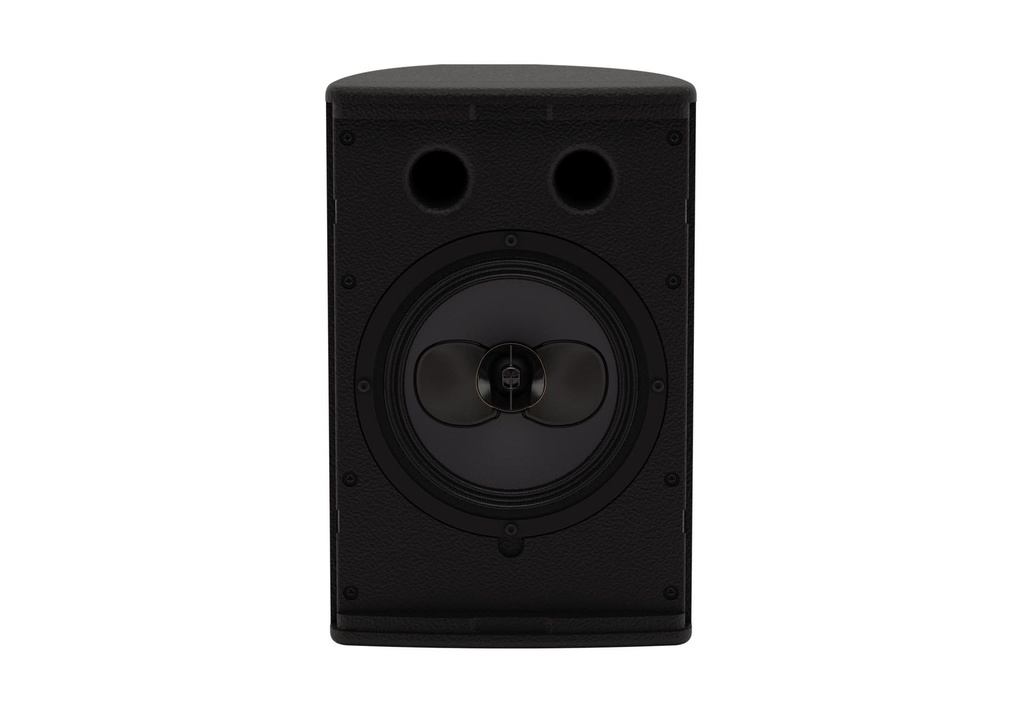

CDD6W - Professional Passive Loudspeakers Equipment Description
Detailed information about the CDD6W by Martin Audio
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD6 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
CDD6W Technical Specifications
Complete technical specifications and documentation for the CDD6W by Martin Audio

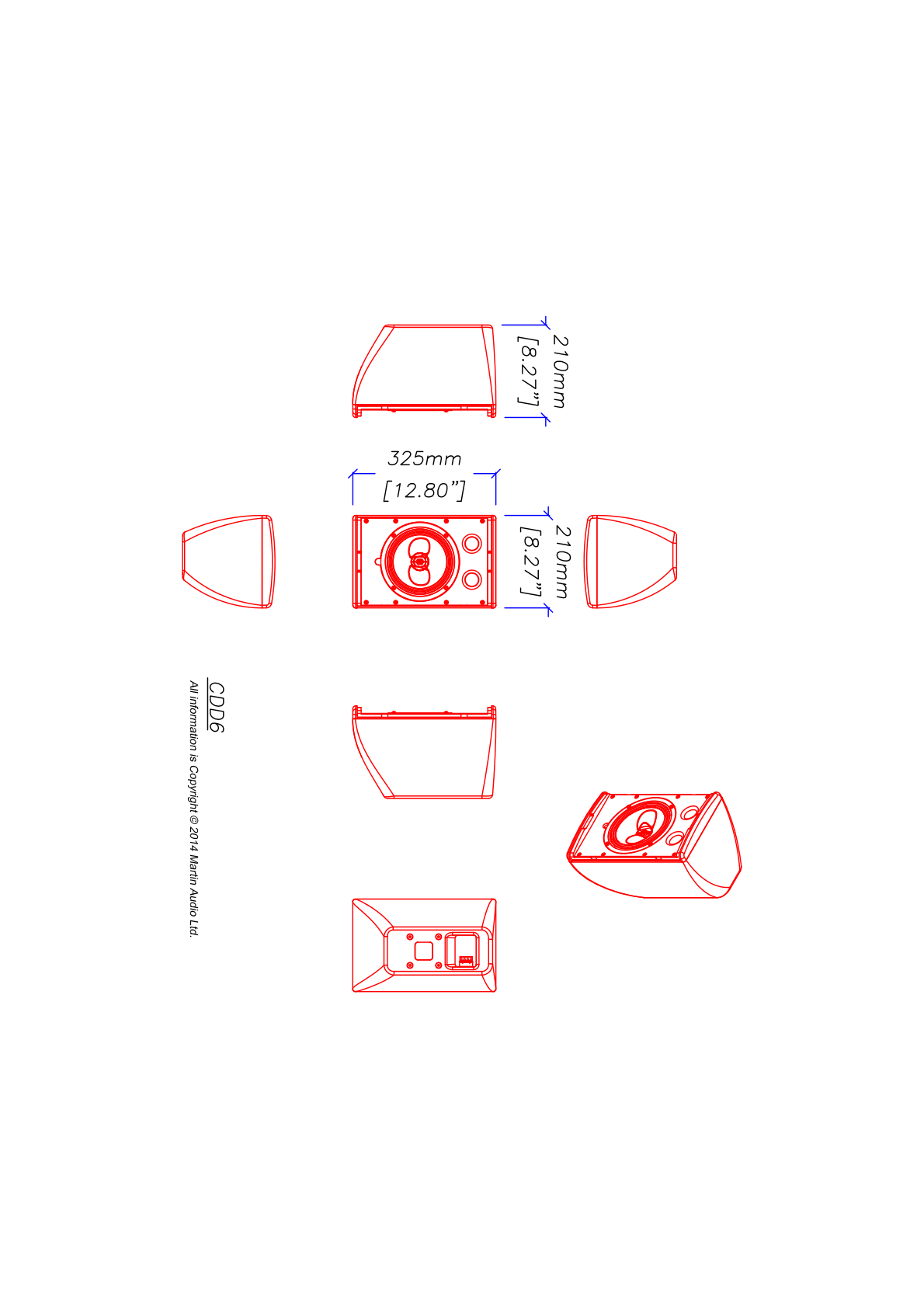

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 80Hz-20kHz ± 3dB, -10dB @ 70Hz |
| DRIVER | LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 150W AES, 600W peak |
| SENSITIVITY (8) | 91dB |
| MAXIMUM SPL (9) | 113dB continuous, 119dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110˚-80˚ horizontal, 80˚ vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 9 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 4 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins |
| WEIGHT | 5.69kg (12.54lbs) |
