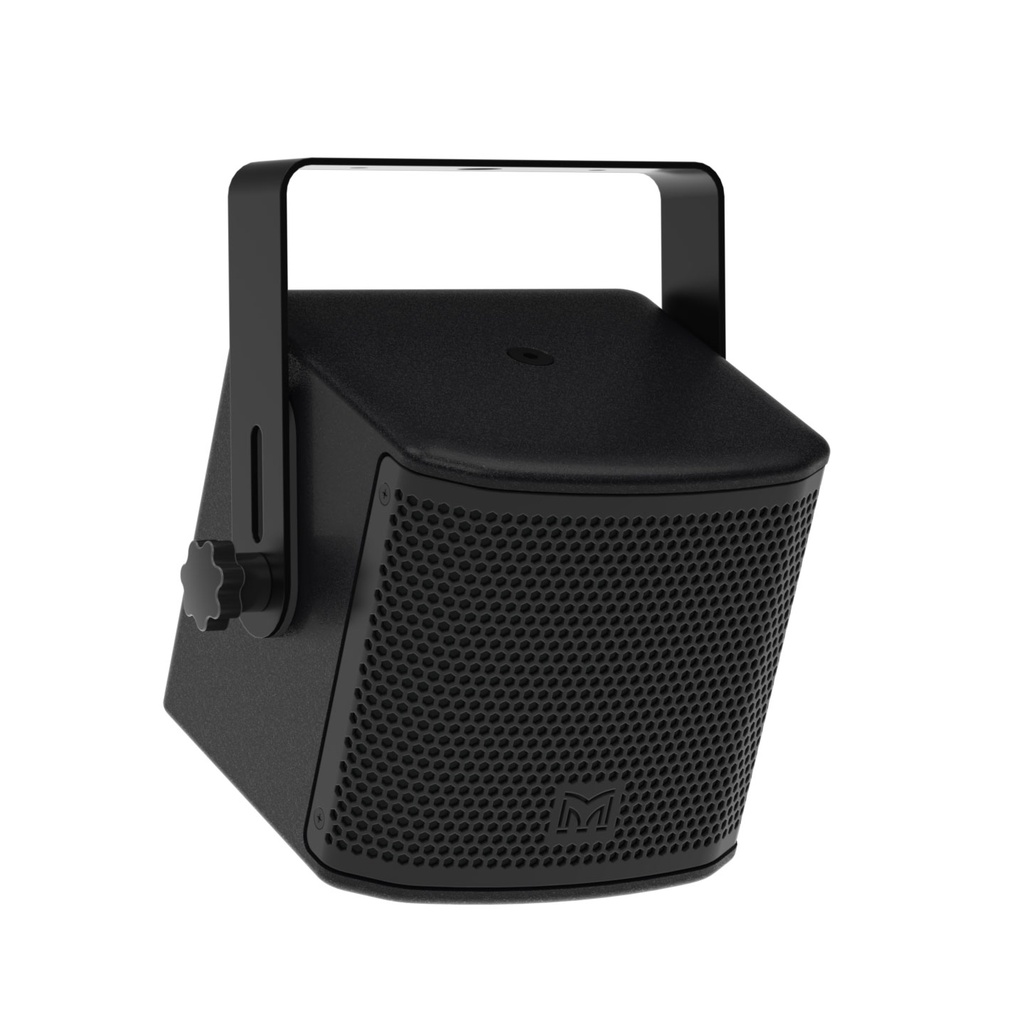

FP4 | Martin Audio Professional Passive Column Speakers Equipment
Professional Passive Column Speakers solution by Martin Audio - Available throughout the Middle East
Its miniature size and flexible mounting options, including mic stand, make for discreet integration within any setting — from small stages, churches, museums and galleries to theatres, bars and restaurants. Being both portable and surprisingly powerful for its size, it can also be used for corporat
Martin Audio
4'' Passive 2 way FlexPoint enclosure
Description
Detailed information about the FP4 by Martin Audio
Technical Overview
Its miniature size and flexible mounting options, including mic stand, make for discreet integration within any setting — from small stages, churches, museums and galleries to theatres, bars and restaurants. Being both portable and surprisingly powerful for its size, it can also be used for corporat
Technical Specifications
Complete technical specifications and documentation for the FP4 by Martin Audio

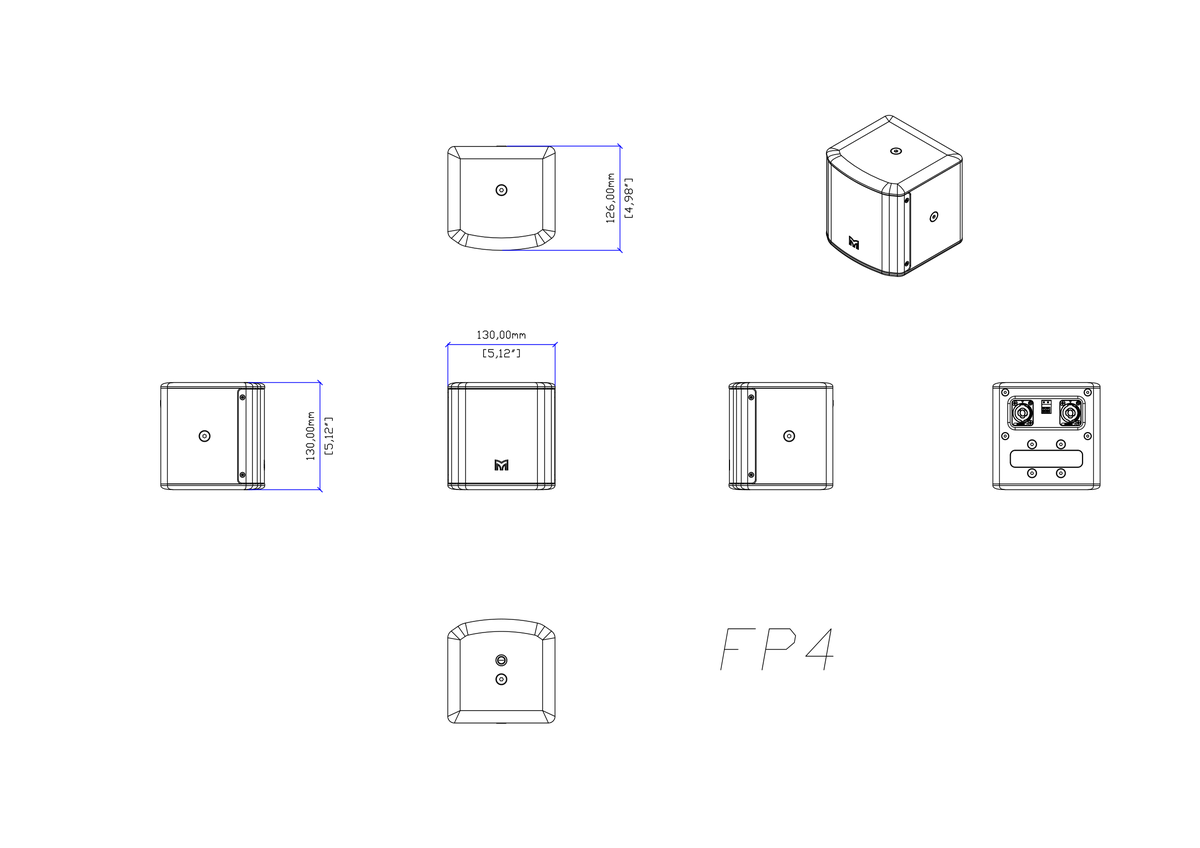

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| PRODUCT NAME | FP4 |
| TYPE | Coaxial passive 2-way |
| CROSSOVER FREQUENCY | 2.6kHz |
| FREQUENCY RESPONSE - 4 π (5) | 142Hz - 18kHz ± 3dB , -10dB @ 103Hz with preset |
| DRIVERS | LF: 4", 1.25" Voice coil, Ferrite Motor HF: 0.7" exit, 1" Voice coil, Coaxial HT polymer dome compression driver |
| SENSITIVITY (4V 1m free-field) | 84dB |
| NOMINAL IMPEDANCE | 16 Ohms |
| RATED POWER | 60W AES, 240W peak |
| MAXIMUM SPL | 102dB Cont, 108dB Peak (6dB) |
| DISPERSION (-6dB) | 110° conical |
| CONNECTORS | NL4MPXX speakons (pair), Pheonix terminal block 1725302 |
| PIN CONNECTIONS (INPUT) | 1+ / 1- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| ENCLOSURE | Durable birch plywood |
| FINISH | Black hardwearing paint |
| GRILLE | Steel grille with triple-layer polyester backing |
| FITTINGS | 4 x M6 inserts, 1 x 3/8” (mic stand) fixing point |
| DIMENSIONS | (W) 130mm, (H) 130mm, (D) 126mm (W) 5.1ins, (H) 5.1ins, (D) 5.0ins |
| WEIGHT | 1.9kg (4.2lbs) |
| VOLUME | 0.8L |
Downloads & Documentation
Access technical documentation, manuals, and resources for the FP4 by Martin Audio
