Description

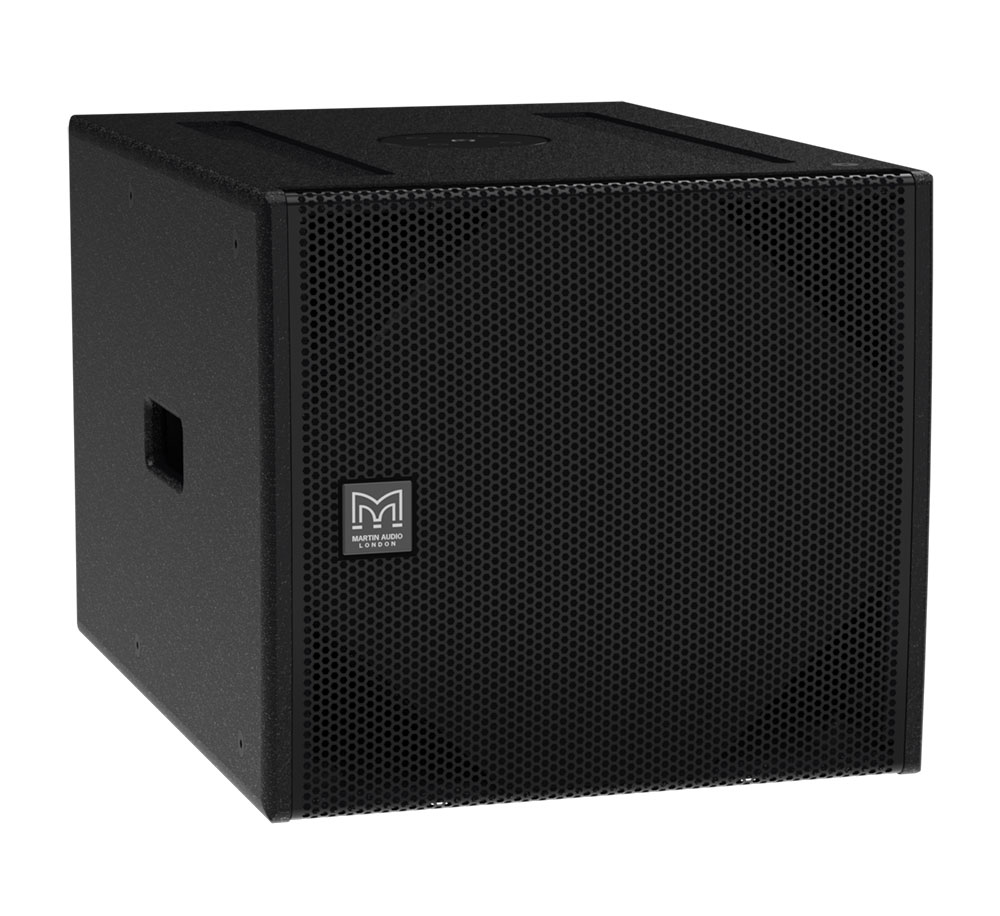

Detailed information about the SX115 by Martin Audio
Technical Overview
The durable plywood enclosure is finished in hardwearing textured paint and incorporates threaded inserts for eyebolt suspension of a single enclosure, as well as safety points. Inserts are also provided for the attachment of side rigging strips to assemble a flown installed array of up to four encl
Technical Specifications
Complete technical specifications and documentation for the SX115 by Martin Audio

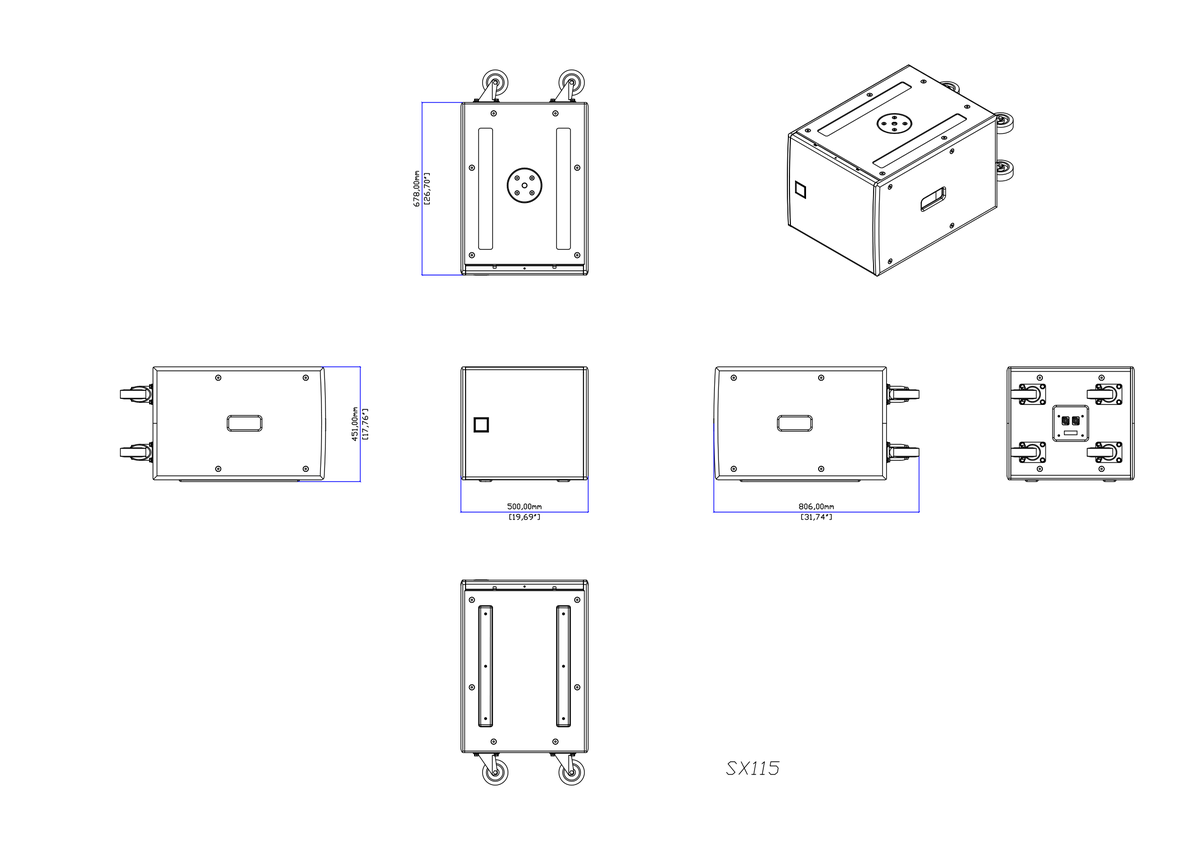

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Direct radiating subwoofer |
| Crossover Frequency | 100Hz |
| FREQUENCY RESPONSE 4 π (5) | 45Hz - 100Hz ± 3dB, -10dB @ 36Hz |
| DRIVERS | LF: 15” with 4” Voice coil, Ferrite Motor |
| SENSITIVITY | (2.83V 1m half space) 100dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | AES 800W, PEAK 3200W |
| MAXIMUM SPL (SYSTEM) | 130dB continuous, 136dB peak, 142dB peak (12dB) |
| DISPERSION | Omni-Directional/ or Cardioid (paired) |
| Connectors | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 1+/- or 2+/- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| FITTINGS | Two skids on base, with mating channels on top M20 top-mounted thread plate for pole mounting Two pocket handles 24 x M10 mounting points 16 x M8 inserts for optional castors |
| DIMENSIONS | (W) 500 mm, (H) 451 mm, (D) 678mm ( 806mm with Casters) (W) 19.69 ins, (H) 17.76 ins, (D) 26.69 ins ( 31.73 ins with Casters) |
| WEIGHT | 36.5kg (80.5lbs) |
