Description
Detailed information about the X115B by Martin Audio
Technical Overview
TheBlackline X115enclosure is constructed from plywood and finished in black textured paint. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the e
Technical Specifications
Complete technical specifications and documentation for the X115B by Martin Audio

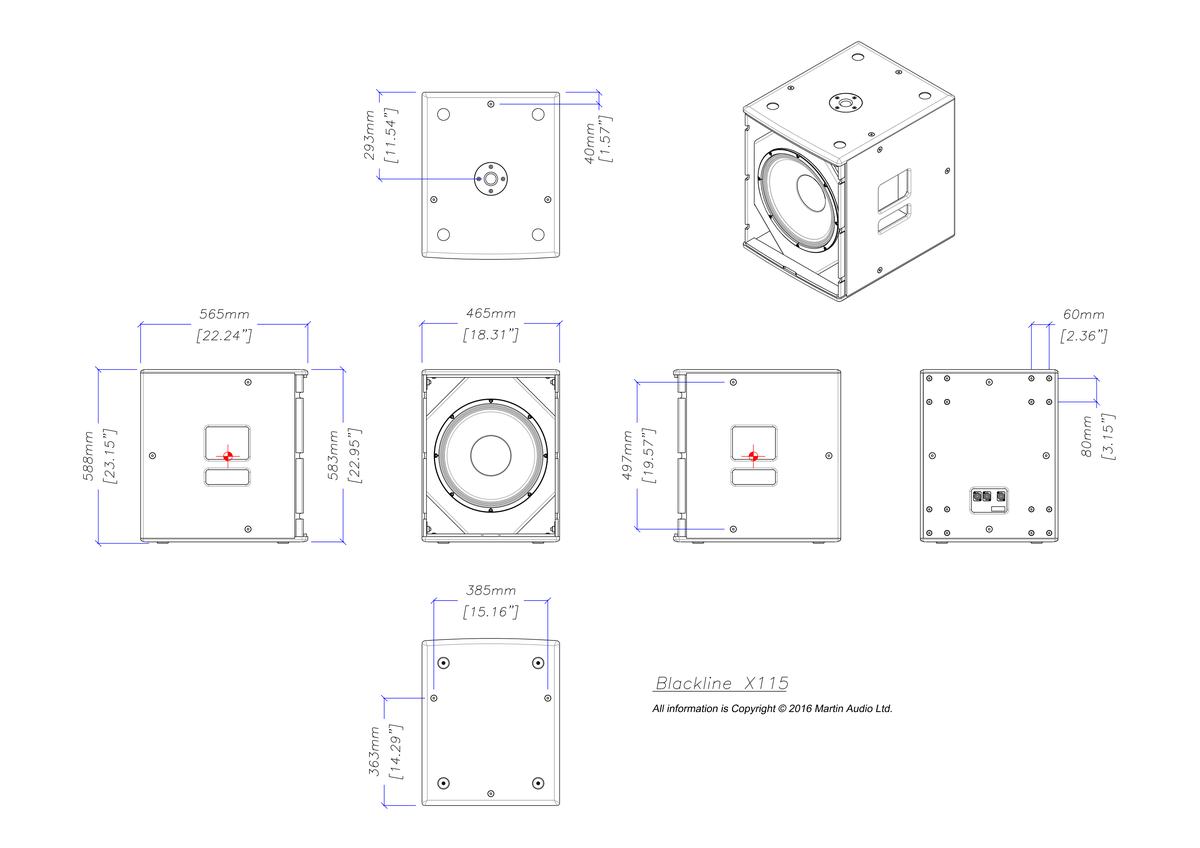

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Compact, direct radiating subwoofer |
| FREQUENCY RESPONSE (5) | 45Hz-150Hz ± 3dB, -10dB @ 40Hz |
| DRIVER | 15” (380mm)/3” (75mm) voice coil, long excursion, ferrite magnet |
| RATED POWER (2) | 500W AES, 2000W peak |
| SENSITIVITY (8) | 102dB |
| MAXIMUM SPL (9) | 129dB continuous, 135dB peak (half space) |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | Birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel |
| CONNECTORS | 3 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | A: 1+/- to 1+/-, B: 2+/- to 1+/- |
| FITTINGS | 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors |
| DIMENSIONS | (W) 465mm x (H) 590mm x (D) 565mm (W) 18.3ins x (H) 23.2ins x (D) 22.2ins |
| WEIGHT | 27kg (59.5lbs) |
