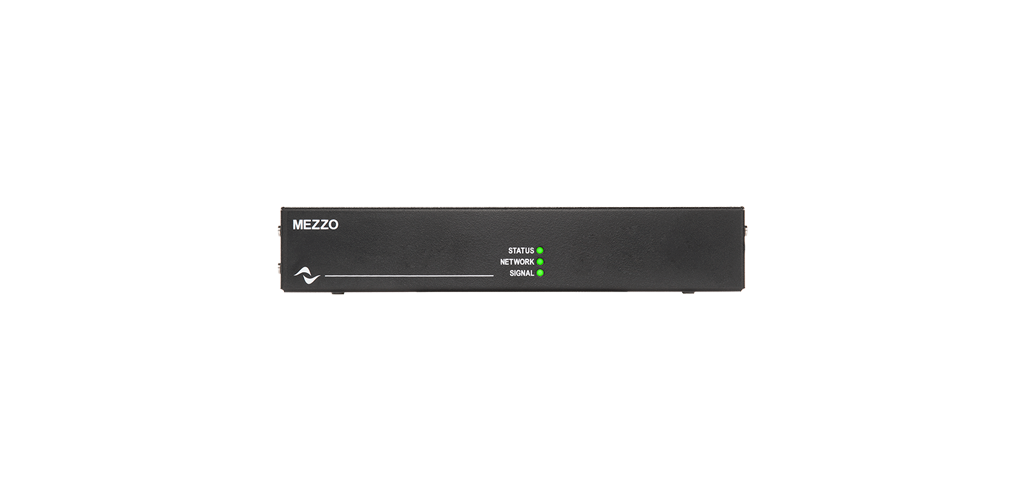

Mezzo 602 AD Powersoft · Installation Amplifiers
600W/2-channel Compact Amplifier with DSP
Mezzo 322 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. The 320 W versions of Mezzo can also be mounted in air handling spaces, such as ceilings or wall boxes. Two-channel versions of Mezzo also feature 2 line-level outputs, further extending routing options
MyPowersoft services are available for this product.
Overview
Mezzo 602 AD at a Glance
Mezzo 602 AD
Specifications
Technical Specifications
Full published figures for the Mezzo 602 AD by Powersoft.
- Output power per channel
- 160 W @ 2 Ω
- Maximum power-sharing capacity per channel
- 320 W @ 4 Ω
- Maximum unclipped output voltage
- 142 Vpeak
- Maximum output current
- 15.6 Apeak
- Power supply
- Universal, regulated switch mode with PFC (Power Factor Correction)
Documentation
Downloads
Datasheets, manuals and drawings for the Mezzo 602 AD.
Case studies
Projects using the Mezzo 602 AD
Real installations across the Middle East built with this product.
