Description
Detailed information about the B15 by TW Audio
Technical Overview
One size up, yet still compact: Like our B10, the B15 is a true all-rounder. Equipped with a 1 × 15" bass reflex system, it is designed for bi-amp operation with our M- and C-Series loudspeakers. With a tonally balanced response, it allows every low-frequency note to resonate naturally, without artificially emphasizing a specific frequency range. Its focus is on precise reproduction, delivering outstanding performance even at high sound pressure levels.
Technical Specifications
Complete technical specifications and documentation for the B15 by TW Audio

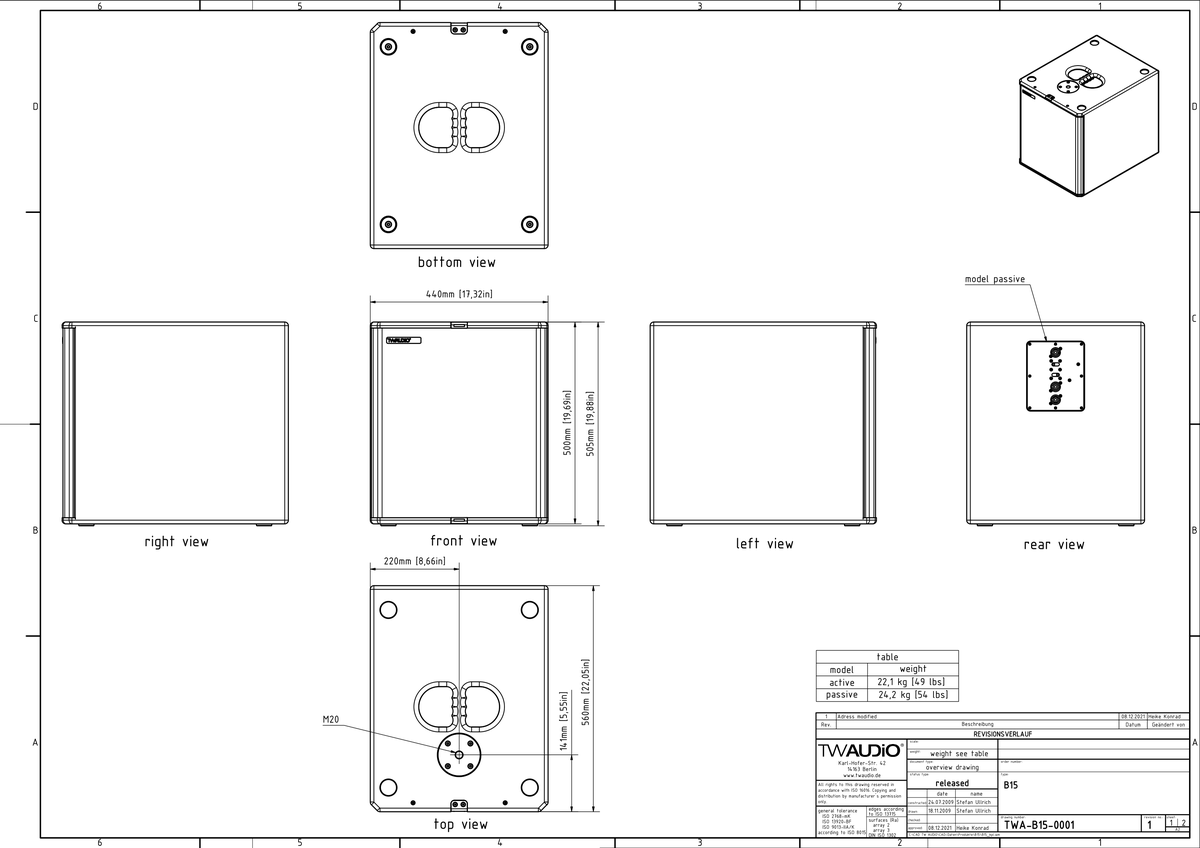

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Drivers | 1 × 15" |
| Frequency range | 40 Hz - 1500 Hz |
| Power capacity program / peak | 1200 / 2400 W |
| Impedance B15A | 4 Ω |
| Impedance B15P | Active: 4 Ω | Passive: 4 Ω |
| Coverage | omni |
| Sensitivity 1 W / 1 m | 94 dB |
| SPLmax / 1 m | 127 dB |
| Connection B15A | speakON® NL4 2± |
| Connection B15P | Active: speakON® NL4 2± Passive: speakON® NL4 1± |
| Dimensions (H × W × D) | 506 × 440 × 560 mm [19.92 × 17.32 × 22.05 in] |
| Weight B15A | 22.1 kg [49 lbs] |
| Weight B15P | 24.2 kg [53 lbs] |
| Finish | Polyurea coating, black |
| Accessories | FDB15, CoverB15 |
| Options | PWB15 passive crossover Warnex texture paint, RAL Colors |
