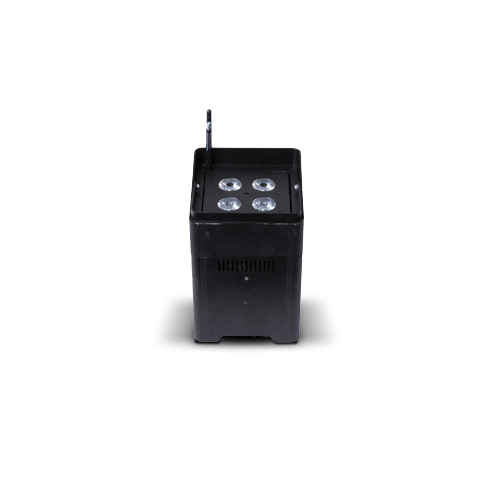

VBAT-684 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision
4-in-1 12W RGBW light source chips with 15° beam angle, 50,000 hours rated life and IP grade 20
Technical Specifications
Complete technical specifications and documentation for the VBAT-684 by Vision

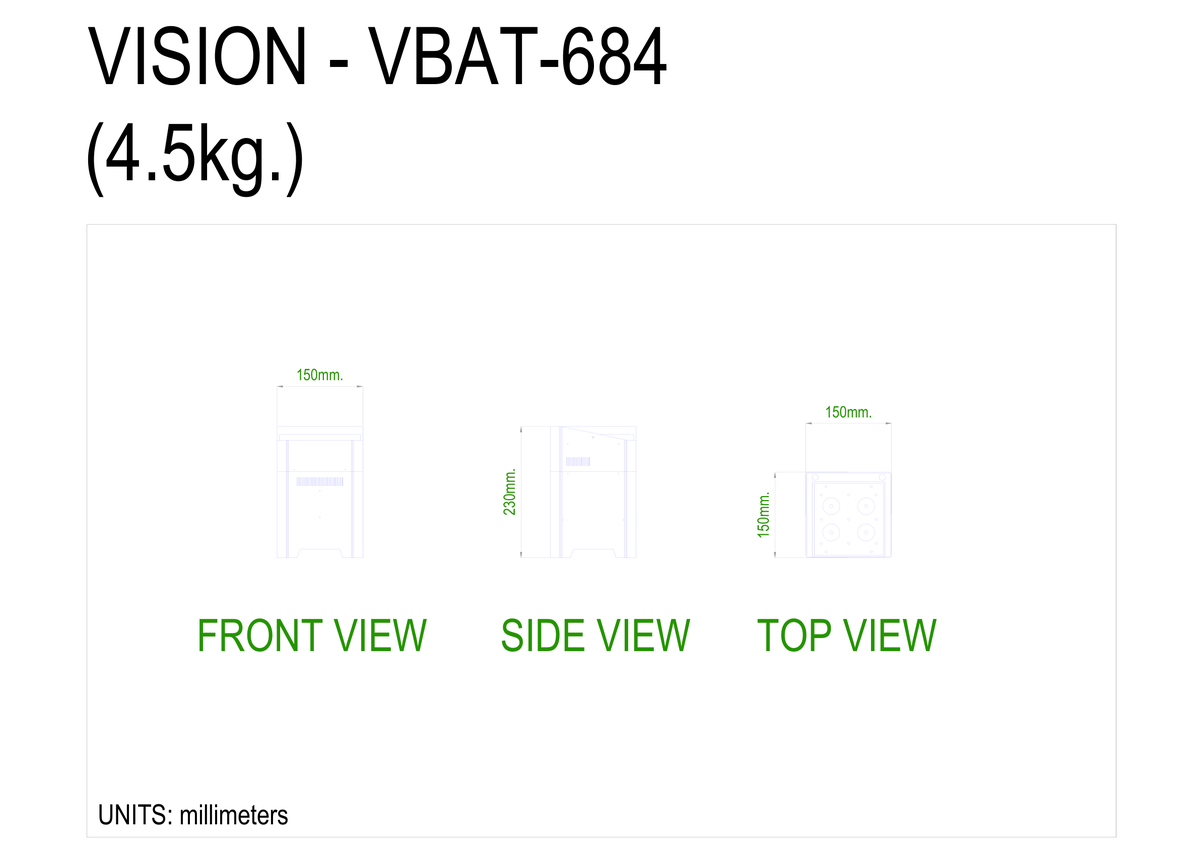

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Beam angle | 15° |
| Light source chips | 4-in-1 12W RGBW |
| LED quantity | 4 |
| Rated life | 50,000 hours |
| Color mixing | RGBW |
| Channel number | 4/6/8 channels |
| Data protocol | DMX 512 |
| Display function | LED |
| DMX input/output | 3-pin |
| Style | Fan+ radiator |
| IP rating | IP 20 |
| Permitted ambient temperature | -20 - +450C |
| Permitted ambient humidity | 75% |
| Max power (100V) | 68W |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VBAT-684 by Vision
