VEF 4.00 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision

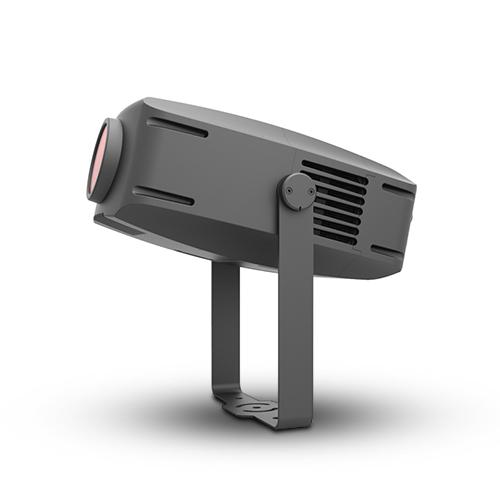

IP-65 rated 400W cool white LED outdoor light radiating 10,500 lumens with 6+1 rotating gobo, gobo shake and gobo bi-directional rotation, and patterns and colors that create a rainbox flow effect
Technical Specifications
Complete technical specifications and documentation for the VEF 4.00 by Vision

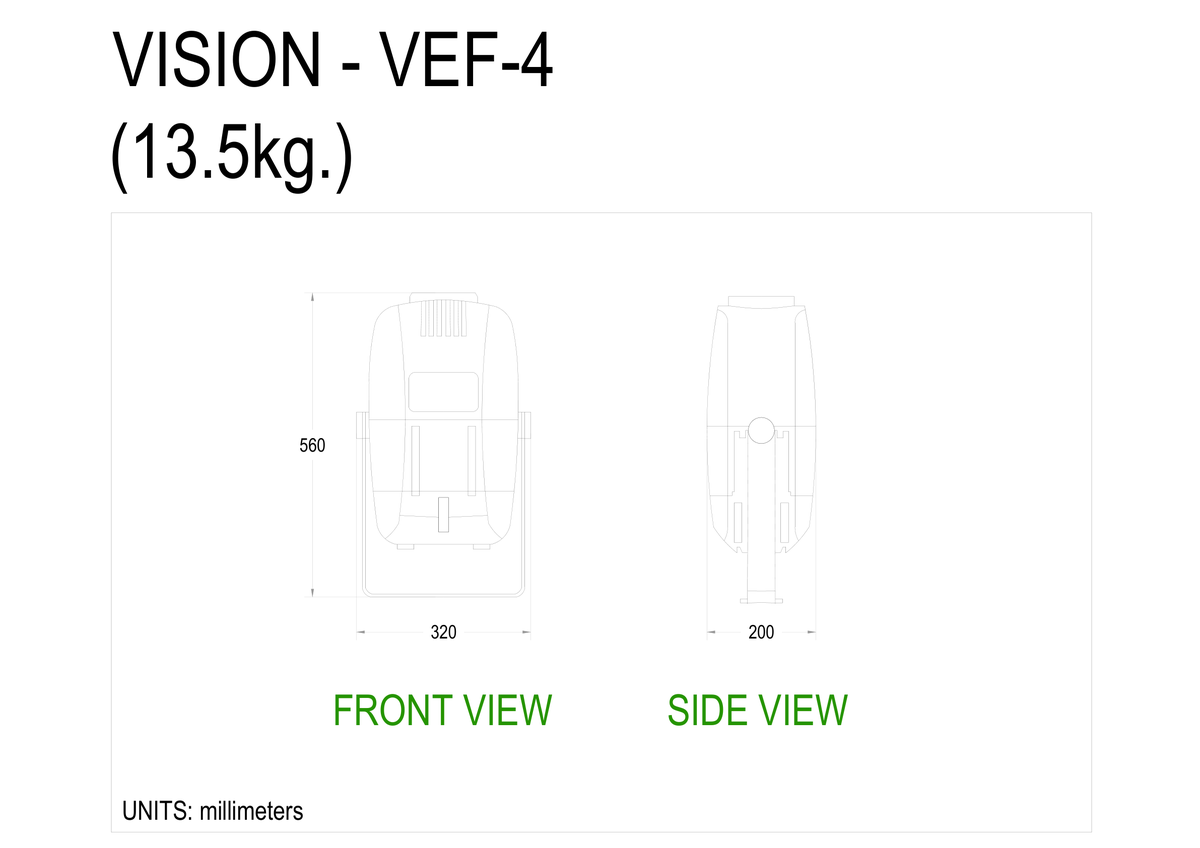

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | Imported 400W cool white module |
| Lumen | 10500 lumens |
| IP grade | IP 65 |
| CCT | 7500K |
| Beam angle | 15°, 30°, 55° |
| Rotating wheel | 1 (6+1 rotating gobo, gobo shake, gobo bi-directional rotation, gobo can be customized) |
| Function | Patterns and colors create a rainbox flow effect |
| Control mode | DMX512, RDM |
| DMX channels | 5, 6 channels |
| Colors | Red, green, blue, yellow, light blue, magenta, orange |
| Focus | Electronic |
| Cooling | Natural heat dissipation + fan |
| Housing material | Die-casting magnesium alloy |
| Housing color | Grey / black |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VEF 4.00 by Vision
