VFR100WW-1555 | Vision Professional Fresnel Equipment
Professional Fresnel solution by Vision - Available throughout the Middle East
Vision

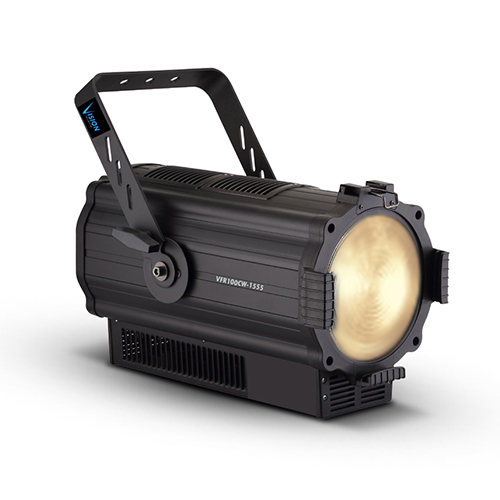

100W COB LED lamp enabling 1-20 flashes per second with up to 8,000 lumens and more than 50,000 hours lifetime
Technical Specifications
Complete technical specifications and documentation for the VFR100WW-1555 by Vision

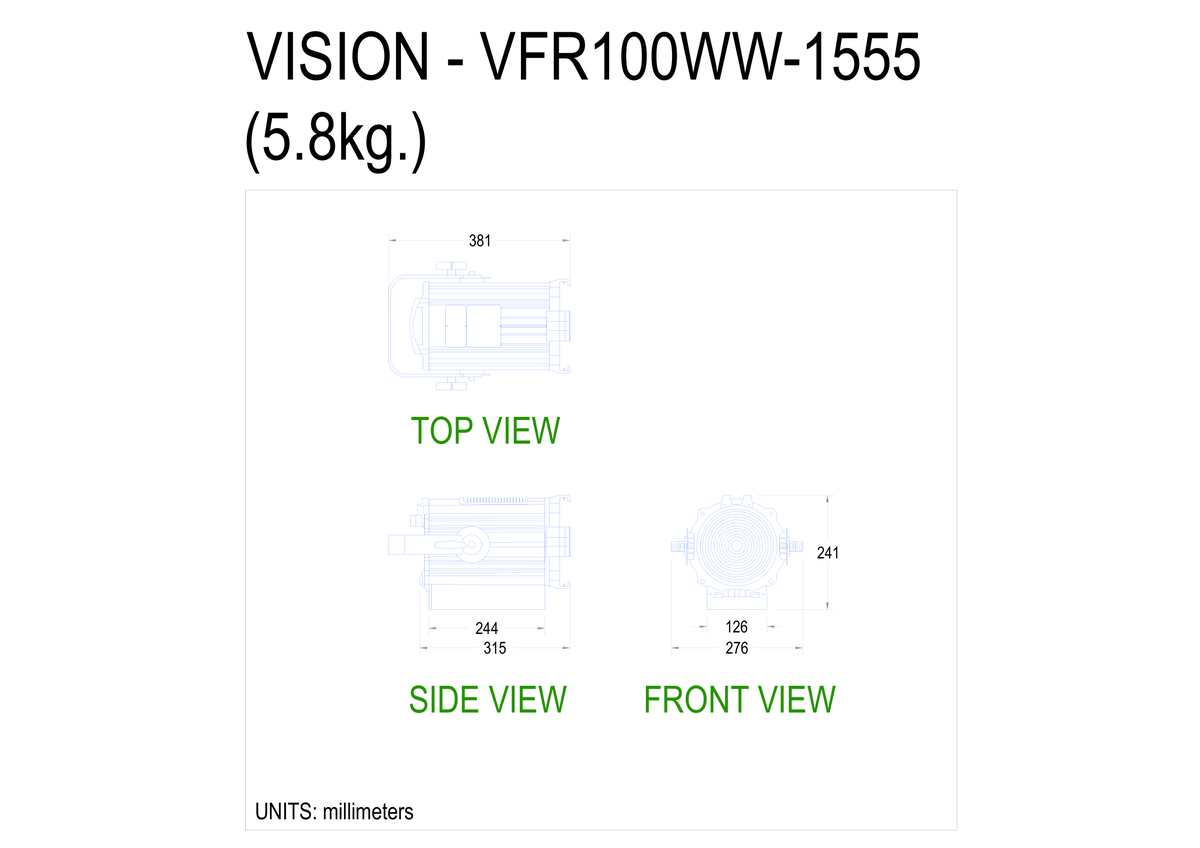

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Lamp | COB LED 100W, white |
| Luminous flux | 7,000 - 8,000 lumens |
| LED lifetime | More than 50,000 hours |
| Color temperature | Available 3200K and 5600K |
| CRI | ≥85Ra or ≥95Ra |
| Dimmer | 0-100% linear dimmer |
| Beam angle | 15° - 55° |
| Strobe | 1-20 flash per second |
| Display | LCD |
| Cooling | High quality radiator, fan without noise |
| Control mode | International standard DMX 512 signal, with XLR 3PIN and XLR 5PIN connectors |
| Channel mode | 1, 2 channels |
| Protection grade | IP 20 |
| Environment temperature | -20°C-45°C |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VFR100WW-1555 by Vision
