VLED-603 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision
18* tri-3W RGB LED with auto-running and built-in programs, M/S, DMX 512, and 40° beam angle with IP66 rating
Technical Specifications
Complete technical specifications and documentation for the VLED-603 by Vision

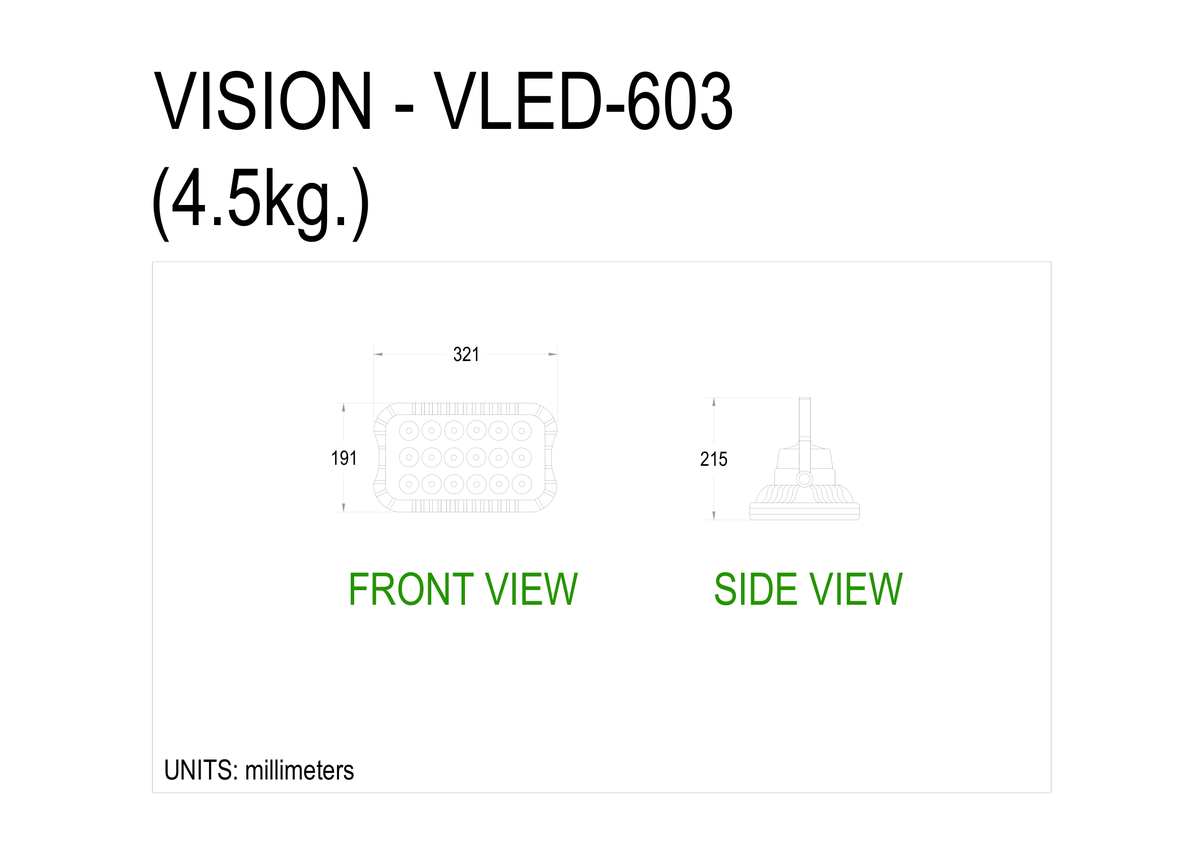

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 18* tri-3W RGB |
| Control mode | Auto running, built-in programs, M/S, DMX 512, static color |
| Operation mode | LED display |
| Lumen | R611,G694, B815, RGB2150 lux at 2 meters |
| Beam angle | 40° |
| DMX channels | 1, 3, 4, 6 channels |
| IP rating | IP 66 |
| Voltage | AC 100V-240V, 60Hz/50Hz |
| Power consumption | 60W |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VLED-603 by Vision
