VW 1.5 K4 | Vision Professional Architectural Lighting Equipment
Professional Architectural Lighting solution by Vision - Available throughout the Middle East
Vision
IP65-rated 4-in-1 RGBW LED consisting of 18 LEDs radiating 35000 lumens with versatile beam angles and DMX512, RDM control protocol
Technical Specifications
Complete technical specifications and documentation for the VW 1.5 K4 by Vision

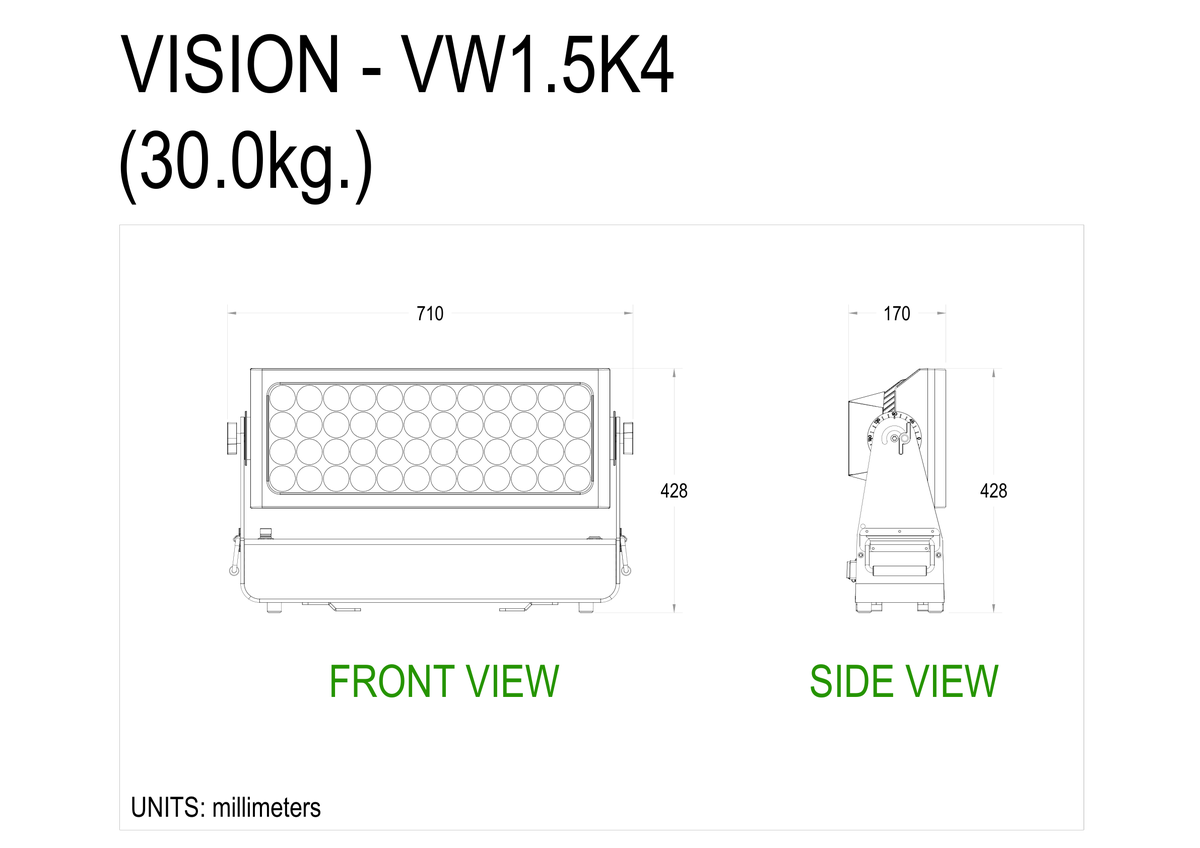

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 48 x 40W 4-in-1 RGBW |
| Lumen | 35000 lumens |
| IP grade | IP 65 |
| Beam angle | 4.5°, 8°, 20° |
| Cooling | Fan cooling |
| Control protocol | DMX512, RDM |
| DMX channels | 4, 6, 9, 24 , 29 channels |
| Housing material | Die -cast magnesium alloy |
| Housing color | Black |
| Permitted ambient temperature | 20 to +45°C |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VW 1.5 K4 by Vision
