Visual Productions B-Station2
Visual Productions

B-Station2 Visual Productions

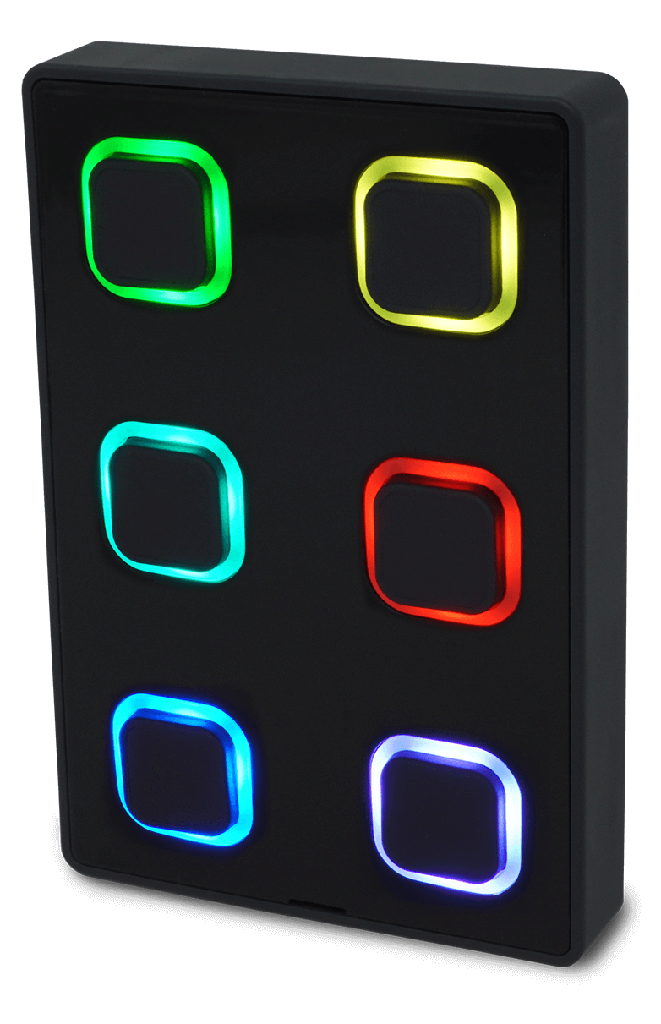

The B-Station is a wall-mount button panel with 6 push-buttons. It can remote control any function within the CueCore. The buttons are back-lit and can provide visual feedback, for example, to indicate the selected cue or active show. Multiple B-Stations can be networked together.

PoE

Designed to offer a user-interface to your lighting project, the B-Station2 is a wall-mount panel with 6 push-buttons. The buttons can be configured to send out a multitude of control messages via DMX, UDP, OSC, Art-Net or sACN. The B-Station2 is the ideal device for triggering your lighting scenes stored in a CueCore2 or LPU-2 controller.The push-buttons are fitted with RGB LED rings. The LEDs can be freely programmed to create an intuitive user experience, for example by indicating which button or lighting scene is active, or representing the real-time colour of the fixture.Messages from protocols such as DMX, UDP, OSC, Art-Net or sACN can be used to control the feedback to the LED rings.

Request a Quote Data Sheet Manufacturer
Reference B-Station2 Brand Visual Productions

Description

About the B-Station2

Manufacturer detail for the B-Station2 by Visual Productions.

Technical Overview

B-Station2
Wall-mount button panel
B-Station2
B-Station2
B-Station2
Wall-mount button panel
Designed to offer a user-interface to your lighting project, the B-Station2 is a wall-mount panel with 6 push-buttons. The buttons can be configured to send out a multitude of control messages via DMX, UDP, OSC, Art-Net or sACN. The B-Station2 is the ideal device for triggering your lighting scenes stored in a CueCore2 or LPU-2 controller.

The push-buttons are fitted with RGB LED rings. The LEDs can be freely programmed to create an intuitive user experience, for example by indicating which button or lighting scene is active, or representing the real-time colour of the fixture.
Messages from protocols such as DMX, UDP, OSC, Art-Net or sACN can be used to control the feedback to the LED rings.
Remote control CueCores
The B-Station2 seamlessly integrates with other devices from the Visual Productions family of control products e.g. CueCore2, QuadCore, DaliCore, LPU-2, TimeCore and IoCore2.

Multiple B-Stations can be networked together.
B-Station2
Stand-alone lighting controller
For small lighting projects, the B-Station2 is a clever, compact and complete stand-alone solution. Fitted with a DMX port, the B-Station2 can be programmed via the web-interface. It features a patch for 32 fixtures, 6 playbacks, many cues and even a basic FX-engine.

The bi-directional DMX port is RDM capable. This enables the B-Station2 to discover and commission RDM fixtures.
B-Station2
Control third-party equipment
The B-Station2 speaks many protocols that are popular amongst AV equipment and systems integration. This makes the B-Station2 compatible with a wide range of third-party equipment like audio players, media servers and show controllers, etc.
B-Station2
Show Control programming
The web-interface of the B-Station2 allows you to program triggers and actions based on incoming signals from any of the supported protocols such as UDP, OSC and Art-Net. Likewise, it is possible to send out messages or call internal software functions in the event of any trigger.
B-Station2
Combine with other products from the family
The B-Station2 can easily be combined with the CueCore2, LPU-2 and DaliCore lighting engines. Or the IoCore2, a GPI, GPO & RS-232 interface module. And the RdmSplitter, a DMX signal booster/splitter.
Download the software tools
The B-Station2 comes with the vManager software tool. vManager, allows you to discover B-Stations on the network, backup their internal data and upgrade firmware. There is also a simple program for creating custom touch-screen user-interfaces called Kiosc.

Please read more about the CueCore2, QuadCore, IoCore2, RDMSplitter and Kiosc.

Specifications

Technical Specifications

Full published figures for the B-Station2 by Visual Productions.

-
6 Push Buttons
-
RGB LED rings
-
Web-interface for programming
-
DMX-512 (ANSI E1.11) opto-isolated
-
RDM (ANSI E1.20)
-
Art-Net output and input
-
sACN output and input
-
UDP output and input
-
OSC output and input
-
TCP Input
-
Compatible with Kiosc
-
Power over Ethernet (class I)
Show all 17 specifications Show fewer specifications
-
32 fixtures in stand-alone
-
6 playbacks/zones in stand-alone
-
FX Generator
Power Connection
POE
Power over Ethernet
Yes

Documentation

Downloads

Datasheets, manuals and drawings for the B-Station2.

Data Sheet PDF Operation & Maintenance Manual PDF

Compatible

Accessories for the B-Station2

Add-ons and spares that fit this product.

Visual Productions Rackmount B - 19 inch adapter for B-Station 2 Visual Productions Rackmount B - 19 inch adapter for B-Station 2 19? rackmount adapter fits one piece B-Station2
