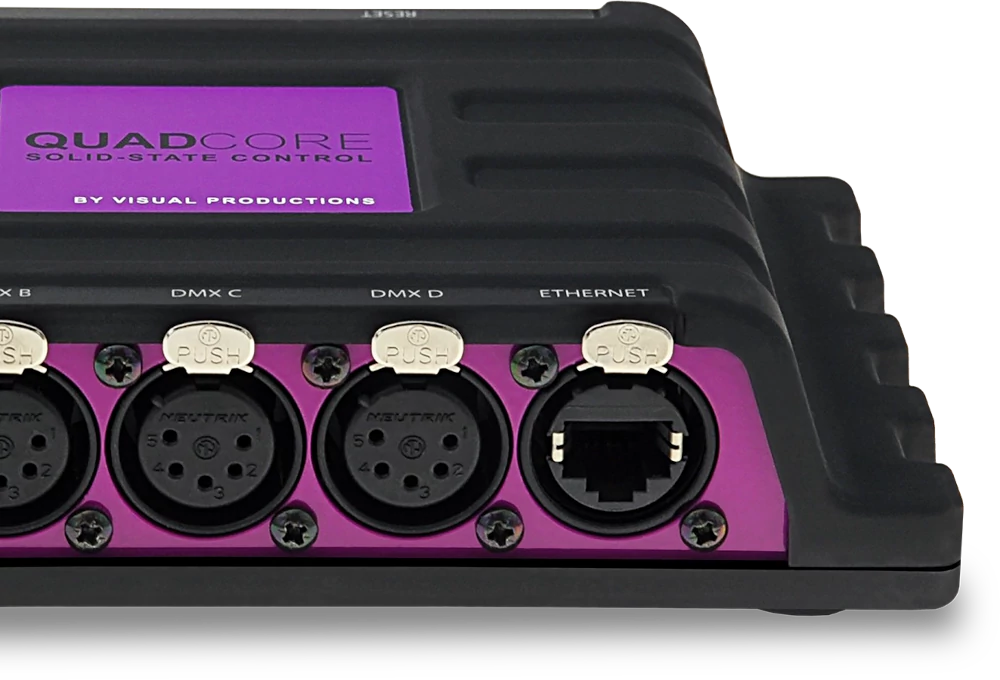

The QuadCore is a compact form-factor lighting controller for (semi-)permanent installations and architectural lighting. Part of the CueCore family, this unit is designed for channel-heavy lighting projects such as pixel mapping. Intended for non-stop operation, the QuadCore has no moving parts; the unit is completely solid-state and achieves a remarkable level of reliability that allow lighting engineers to ‘fit and forget’ this stand-alone device.
Description
Detailed information about the QuadCore - 4-universe solid-state architectural lighting controller by Visual Productions
Technical Overview
QuadCore
4-universe solid-state architectural lighting controller
QuadCore
4-universe solid-state architectural lighting controller
The QuadCore is a compact form-factor lighting controller for (semi-)permanent installations and architectural lighting. Part of the CueCore family, this unit is designed for channel-heavy lighting projects such as pixel mapping. Intended for non-stop operation, the QuadCore has no moving parts; the unit is completely solid-state and achieves a remarkable level of reliability that allow lighting engineers to ‘fit and forget’ this stand-alone device.
Control the lighting
First of all the QuadCore is a lighting controller. It can playback lighting shows, static scenes and dynamic effects through its four DMX-512 universes. Featuring six independent playbacks, the QuadCore can handle lighting in multiple zones or challenging HTP/LTP requirements. The playbacks come with all the bells and whistles so you can accommodate your client’s wishes.
Record from an external DMX source
Lighting shows designed on third-party consoles can easily be recorded inside the CueCore2. It even offers features to help create seamless loops in your recording. Recording external shows can be through DMX, Art-Net or sACN.
Communicate through a range of protocols
Lighting shows designed on third-party consoles can easily be recorded inside the QuadCore. It even offers features to help create seamless loops in your recording. Recording external shows can be through DMX, Art-Net or sACN.
Program show-control automation
The autonomous behaviour of the QuadCore can be customised by flexible show-control programming. This functionality enables you to automate the show playback. You can define triggers based on any incoming protocol or scheduled time or day. Furthermore, you can convert signals from one protocols into another.
Apply QuadCores to small and large installs
The scalable design of the QuadCore allows for deployment in small and large projects. The autonomous operation of a single QuadCore is often sufficient for a small installation. Whereas a grid of multiple QuadCores, all networked together, meets the capacity required by large lighting systems. The QuadCore is fitted with a fluent master-slave protocol for synchronising multiple units.
Combine with other products from the family
The QuadCore is member of the product family that comprises the CueCore2, for an even wider range of protocols that include SMPTE, MIDI, MTC and GPI. The IoCore2, for additional GPI, GPO and RS-232 ports. The B-Station, a wall-mount button panel. And the RdmSplitter, a DMX signal booster/splitter.
Download the software tools
We have bundled the QuadCore with various software tools that you are free to use.
CueluxPro is software-based lighting console that enables you to create lighting content that
can be uploaded to the QuadCore's internal memory. vManager, allows you to discover
QuadCores
on the network, backup their internal data and upgrade firmware. There is also a simple
program for creating custom touch-screen user-interfaces called Kiosc.
Please read more about the CueCore2, IoCore2,
B-Station, RdmSplitter and Kiosc.
Please read more about the CueCore2, IoCore2,
B-Station, RdmSplitter and Kiosc.
Technical Specifications
Complete technical specifications and documentation for the QuadCore - 4-universe solid-state architectural lighting controller by Visual Productions
Specifications
| Name | Value |
|---|---|
| - | 4 x DMX-512 opto-isolated port (bi-directional)) |
| - | Art-Net (in & out) |
| - | sACN (in & out) |
| - | KiNet (out) |
| - | TCP (in) |
| - | UDP & OSC (in & out) |
| - | Scheduling with Real-Time clock, weekdays and sunrise/sunset |
| - | NTP time synchronisation |
| - | Art-Net timecode |
| - | Show Control function (connect any input to any output) |
| - | Master/slave protocol for synchronising multiple units |
| - | Compatible with Kiosc |
| - | Desktop or DIN Rail mounted |
| - | Optional 19″ rackmount adapter |
| - | Kensington lock |
| - | Locked power cable protection |
| - | PoE Class I |
| - | Compliance CE, ROHS, UKCA, EAC, FCC, UL62368-1, CSA C22.2 62368-1:19 |
