Martin Audio
A55W Martin Audio
5.25" Passive Two-way on-wall Loudspeaker
The ADORN A55 is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.
Power
50 W
Weight
2.21 kg
Dimensions
140 x 152 x 245 mm
Description
About the A55W
Manufacturer detail for the A55W by Martin Audio.
Technical Overview
The A55 is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such asCDDorBlacklineX. Comprising a 5.25”
Specifications
Technical Specifications
Full published figures for the A55W by Martin Audio.
- TYPE
- Ultra-Compact passive two-way system, front ported bass reflex
- FREQUENCY RESPONSE (1)
- 90Hz-17kHz ± 3dB -10dB @ 65
- DRIVERS
- LF: 5.25” /1” high-temp voice coil, coated paper, cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- RATED POWER (2)
- 50W AES, 200W peak
- RECOMMENDED AMPLIFIER
- VIA2004
- SENSITIVITY (4)
- 90dB/1W/1m
- MAXIMUM SPL (9)
- 113dB peak
- NOMINAL IMPEDANCE
- 16Ω
- DISPERSION (-6dB)
- 110° H x 80° V
- CROSSOVER
- 3.5kHz passive (LF and HF auto-resetting fuses)
- RECOMMENDED HIGH-PASS FILTER
- 60Hz 24dB/oct
- ENCLOSURE
- ABS, UL 94V-0 rated
Show all 21 specifications Show fewer specifications
- FINISH
- Black or white
- GRILLE
- Perforated steel
- IP RATING
- IP54 when fitted with optional weatherised connector cover
- CONNECTORS
- Push terminals
- FITTINGS
- Wall bracket included

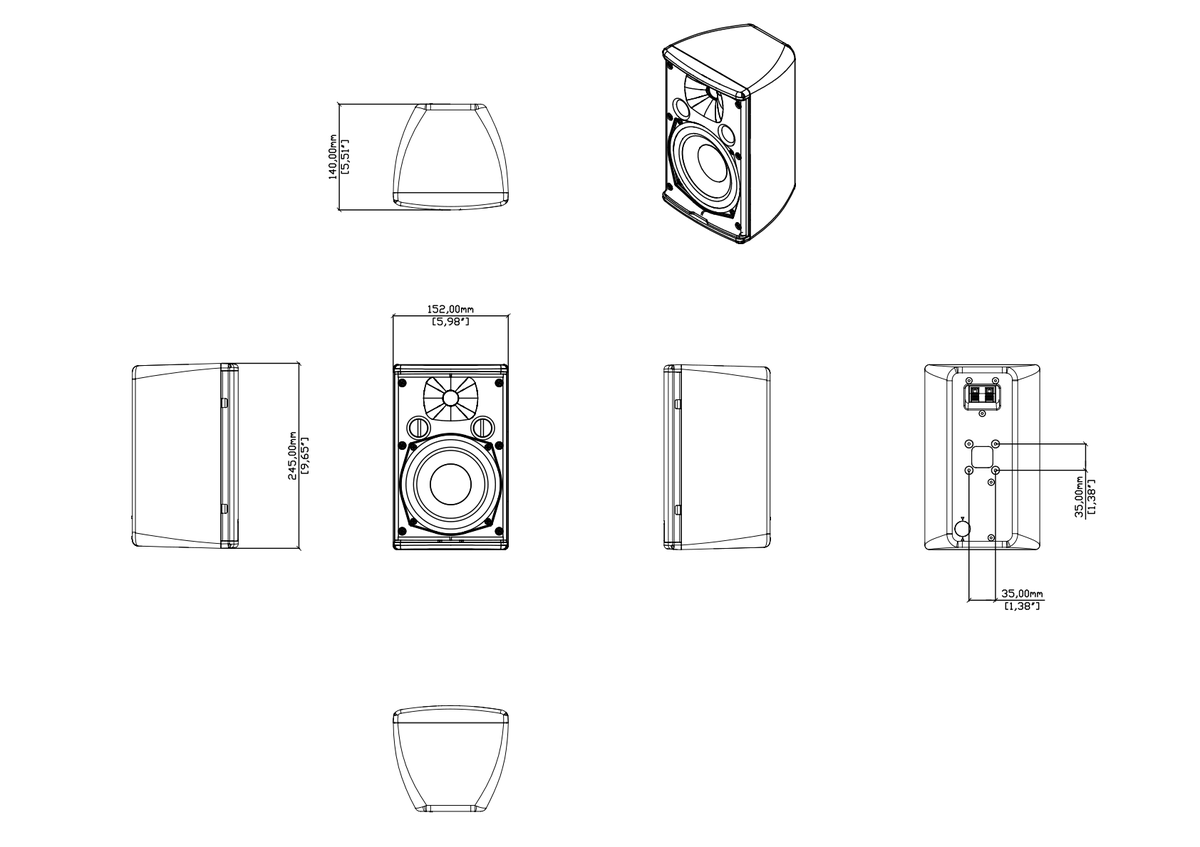

- DIMENSIONS EXCL. BRACKET
- (W) 152mm x (H) 245mm x (D) 140mm (W) 6in x (H) 9.6in x (D) 5.5in
- WEIGHT
- 2.21kg (4.9lbs)
- Dimensions (L x W x H)
- 140 x 152 x 245 mm
- Power Consumption
- 50 W
