Martin Audio
FP12 Martin Audio · Passive Loudspeakers
12" Compact Point Source Loudspeaker
The FP12 is a premium, point-source loudspeaker designed for short-throw applications which require superb sonic performance, high output, and coverage consistency from a compact enclosure. Its small size and portability extend its range of applications from live sound and permanent installations to corporate events, gigging musicians and DJ’s.
Power
350 W
Weight
17.5 kg
Dimensions
346 x 521 x 390 mm
Overview
FP12 at a Glance
12'' Passive 2 way FlexPoint enclosure
Description
About the FP12
Manufacturer detail for the FP12 by Martin Audio.
Technical Overview
With a multi-angle enclosure and a wide range of mounting options, the FP12 is the perfect high-power solution for rental companies and professional applications which benefit from flexibility and speed of deployment. When supplemented by a subwoofer, it is an excellent choice for premium, short-th
Specifications
Technical Specifications
Full published figures for the FP12 by Martin Audio.
- PRODUCT NAME
- FP12
- TYPE
- Coaxial passive 2-way
- CROSSOVER FREQUENCY
- 1.5kHz
- FREQUENCY RESPONSE - 4 π (5)
- 55Hz - 20kHz ± 3dB , -10dB @ 44Hz with preset
- DRIVERS
- LF: 12", 3" Voice coil, Neodymium Motor with flux stabilising rings HF: 1.4" exit, 3" Voice coil, Coaxial titanium dome compression driver
- SENSITIVITY (2.83V 1m free-field)
- 97dB
- NOMINAL IMPEDANCE
- 8 Ohms
- RATED POWER
- 350W AES, 1400W peak
- MAXIMUM SPL
- 122dB Cont, 128dB Peak (6dB)
- DISPERSION (-6dB)
- 90° H, 60° V
- CONNECTORS
- NLT4MPXX-BAG speakons (pair)
- PIN CONNECTIONS (INPUT)
- 1+ / 1-
Show all 22 specifications Show fewer specifications
- PIN CONNECTIONS (LINK)
- 1+/- and 2+/-
- ENCLOSURE
- Durable birch plywood
- FINISH
- Black hardwearing paint
- GRILLE
- Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver
- IP RATING
- IP54 when fitted with two speakON NLT4FXX connectors
- FITTINGS
- 4 x M10, 17 x M8 fixing points, dual pole-mount socket, 2 x handle pockets

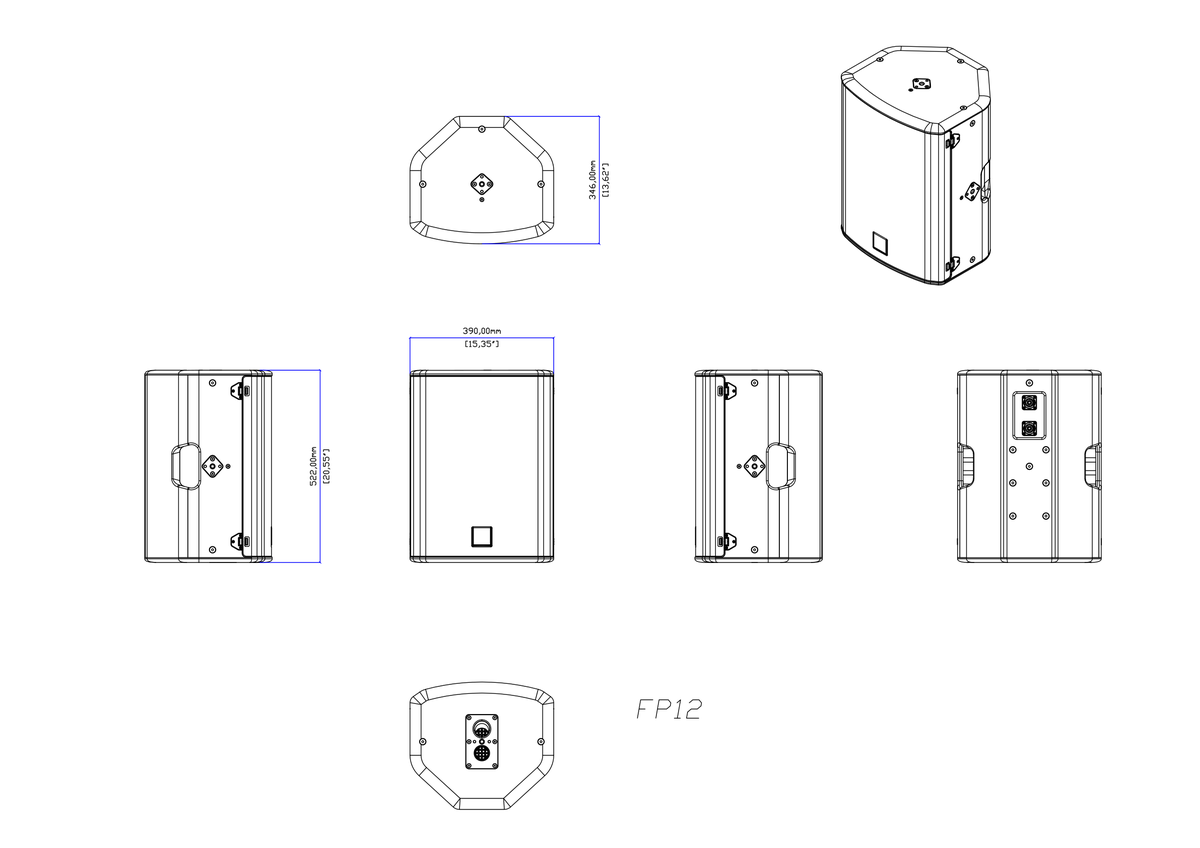

- DIMENSIONS
- (W) 521mm, (H) 390mm, (D) 346mm (W) 20.5ins, (H) 15.4ins, (D) 13.6ins
- WEIGHT
- 17.5kg (38.6lbs)
- VOLUME
- 33.5L
- Power Consumption
- 350 W
Documentation
Downloads
Datasheets, manuals and drawings for the FP12.
Compatible
Accessories for the FP12
Add-ons and spares that fit this product.
