LE100 Martin Audio · Passive Loudspeakers

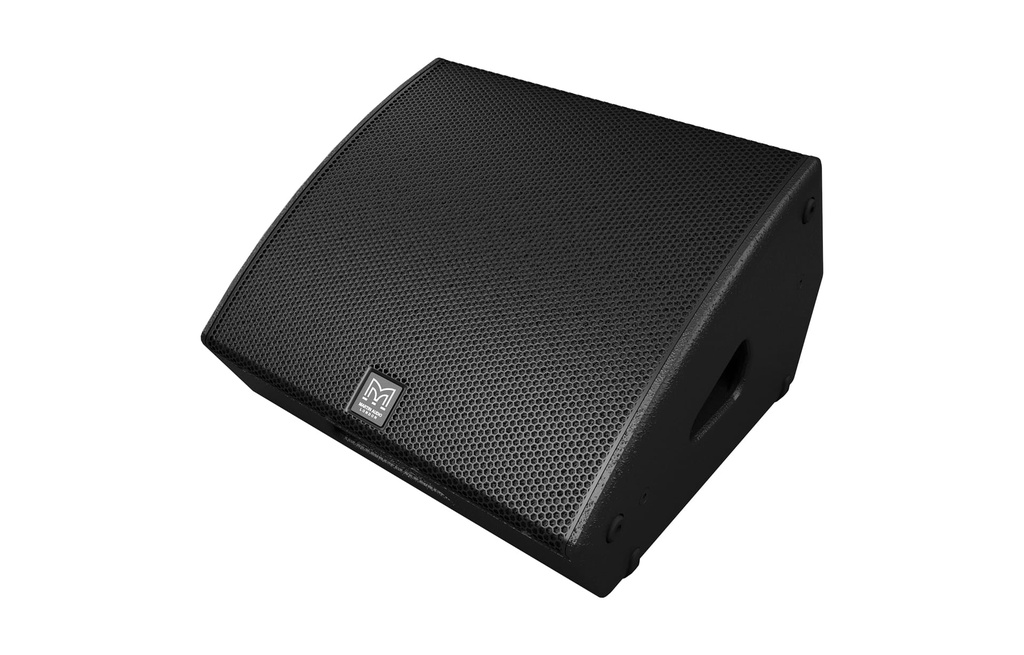

12" Passive Coaxial Differential Dispersion Stage Monitor
The LE100 is an extremely compact, two-way passive monitor. It features a 12” (300mm) LF /1” (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5” (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75” (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.
Power
300 W
Overview
LE100 at a Glance
High Power 12'' Passive Monitor With CDD Technology
Description
About the LE100
Manufacturer detail for the LE100 by Martin Audio.
Technical Overview
The unique Coaxial Differential Dispersion technology employed in the LE100 produces a horizontal coverage pattern which varies from a wide 110° directly over the monitor, reducing to 60° further back. This tapering produces a near-rectangular coverage plane at head-height to maintain the sound leve
Specifications
Technical Specifications
Full published figures for the LE100 by Martin Audio.
- TYPE
- Two-way passive, Coaxial Differential Dispersion stage monitor
- FREQUENCY RESPONSE (5)
- 78Hz-20kHz ± 3dB, -10dB @ 58Hz
- DRIVERS
- LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
- RATED POWER (2)
- 300W AES, 1200W peak
- SENSITIVITY (8)
- 97dB
- MAXIMUM SPL (9)
- 129dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6dB)
- 110°-60° horizontal, 60° vertical
- CROSSOVER
- 1.6kHz passive
- ENCLOSURE
- Birch/poplar ply
- FINISH
- Black textured paint
- PROTECTIVE GRILLE
- Black perforated steel with scrim cloth backing
Show all 20 specifications Show fewer specifications
- BAFFLE ANGLE
- 27˚
- CONNECTORS
- 5 x NL4 type
- PIN CONNECTIONS
- 1+/1-
- FITTINGS
- 2 x pocket handles Protective rubber feet on base and sides 4 x M8 inserts Pole-mount socket

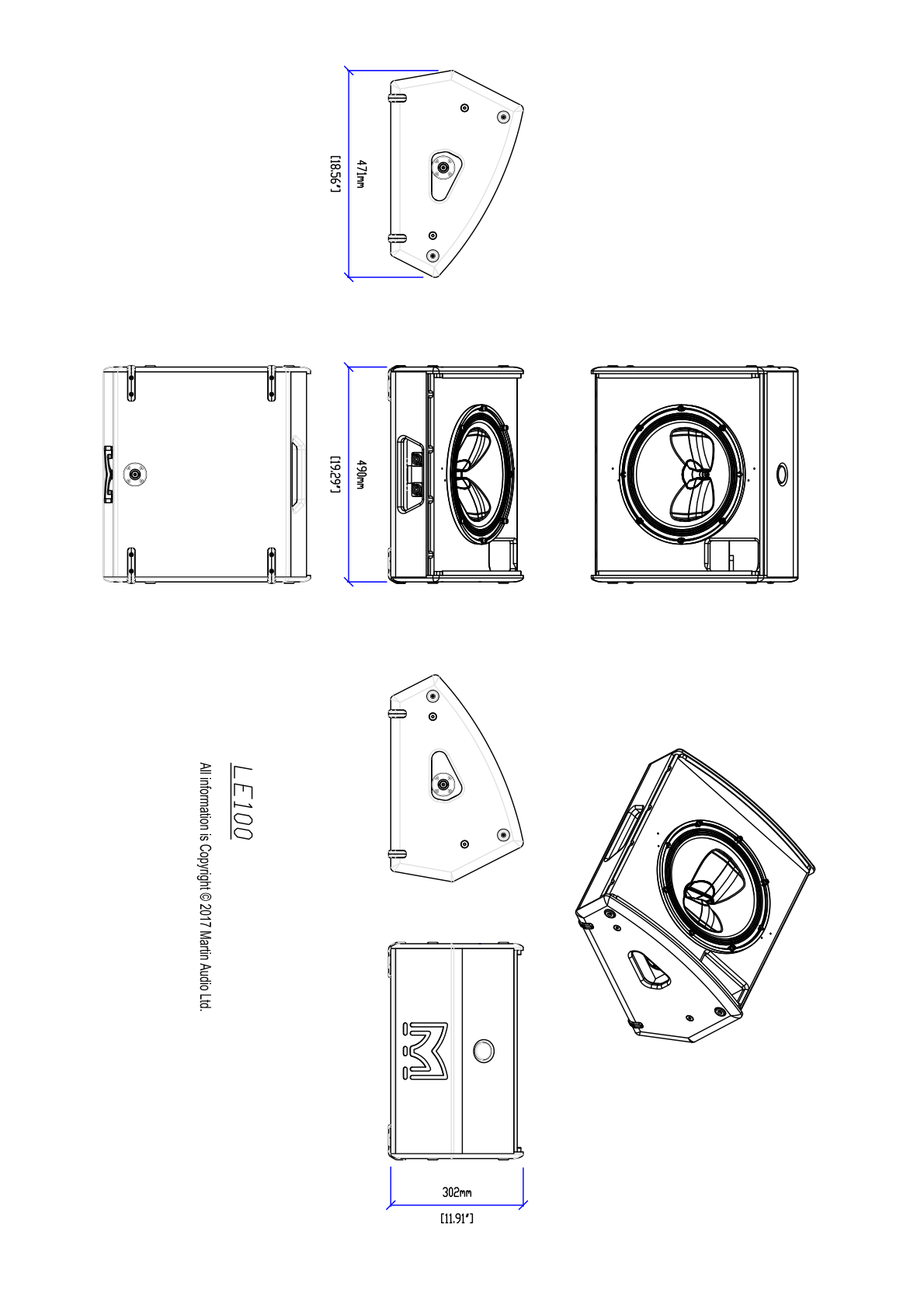

- DIMENSIONS
- (W) 490mm x (H) 302mm x (D) 472mm (W) 19.3ins x (H) 11.9ins x (D) 18.6ins
- DIMENSIONS INCL FEET
- (W) 496mm x (H) 305mm x (D) 472mm (W) 19.5ins x (H) 12.0ins x (D) 18.6ins
- WEIGHT
- 18kg (39.7lbs)
- Power Consumption
- 300 W
