The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels — either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12” (300mm) LF driver unit and a 1” (25mm) exit compression driver on a user-rotatable horn, its 80° x 50° disp
Martin Audio
The Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels ? either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12? (300mm) LF driver unit and a 1? (25mm) exit compression driver on a user-rotatable horn, its 80? x 50? dispersion pattern is ideal for medium throw applications.

Description

Detailed information about the X12B - 12" Passive Two-way Portable Loudspeaker by Martin Audio


Technical Overview

TheBlackline X12LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement


Technical Specifications

Complete technical specifications and documentation for the X12B - 12" Passive Two-way Portable Loudspeaker by Martin Audio

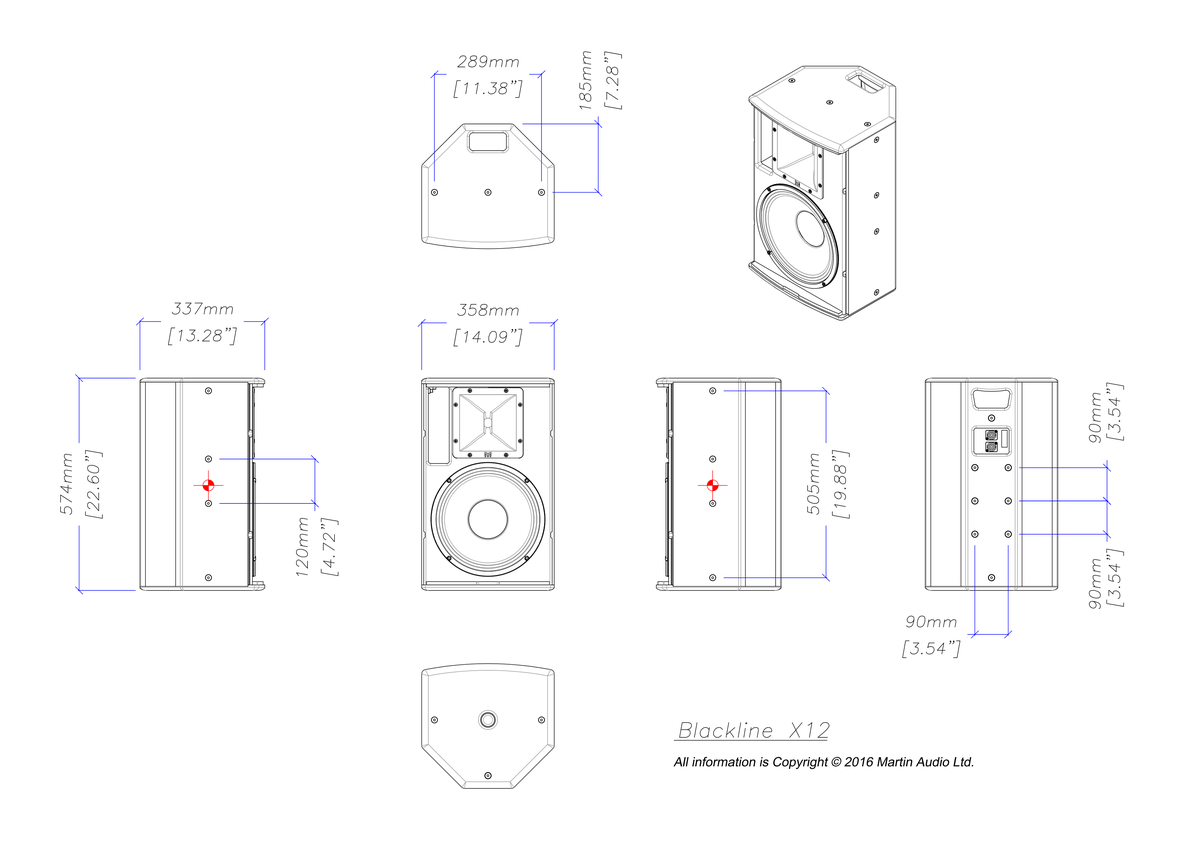

Technical Drawing
Technical drawing for X12B - 12" Passive Two-way Portable Loudspeaker
Download PDF
Product Specifications
Name Value
TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2) 300W AES, 1200W peak
SENSITIVITY (8) 97dB
MAXIMUM SPL (9) 122dB continuous, 128dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION (-6dB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.3kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 358mm x (H) 574mm x (D) 337mm (W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT 17kg (37.5lbs)
ACCESSORIES Wall bracket, eyebolts

Downloads & Documentation

Access technical documentation, manuals, and resources for the X12B - 12" Passive Two-way Portable Loudspeaker by Martin Audio

Data Sheet
PDF
OM Manual
PDF
Drawing (DWG)
AutoCAD
Drawing (PDF)
PDF
