CURV 500 D SAT | LD Systems Professional Passive Column Speakers Equipment
Professional Passive Column Speakers solution by LD Systems - Available throughout the Middle East
Description
Detailed information about the CURV 500 D SAT by LD Systems
Technical Overview

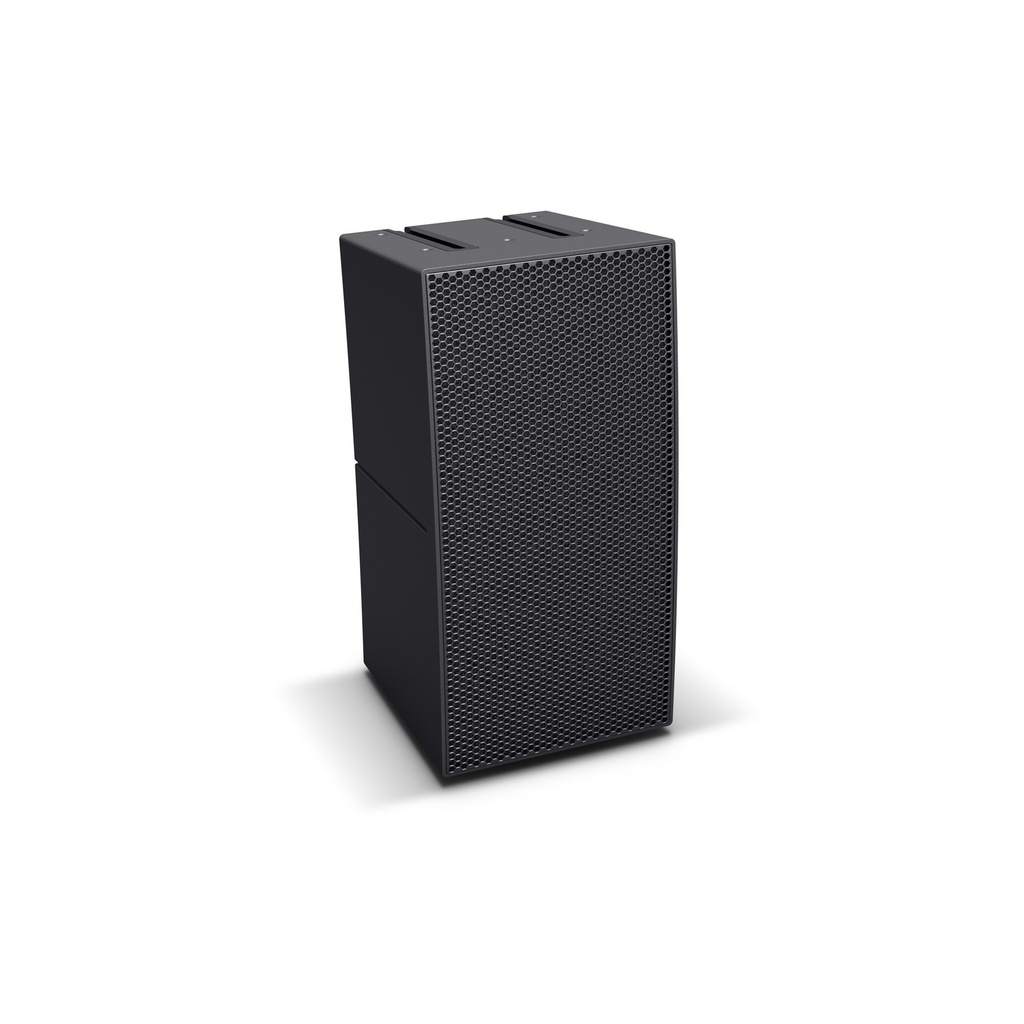

Providing tightly focused long-throw coverage, the CURV 500® Duplex Satellite expands the system’s configuration options in on-stage applications and fixed installations. The unique unibody enclosure of die cast aluminium features two 4" midrange drivers and six 1" high frequency drivers with patented WaveAhead® technology delivering balanced high-definition audio. The Duplex is primarily intended for creating spiral arrays in combination with multiple standard satellites making up the bottom curvature. This allows you to configure the system for optimum coverage throughout the listening area from front to rear. The CURV 500® Duplex is ready for cableless SmartLink® plug-and-play connection and available in black (LDCURV500DSAT) or white (LDCURV500DSATW).
Technical Specifications
Complete technical specifications and documentation for the CURV 500 D SAT by LD Systems
Specifications
| Name | Value |
|---|---|
| Product type | Installation Loudspeakers |
| Type | Array Satellites, Wall-mounted Loudspeaker |
| Midrange dimensions | 2 x 4 " |
| Tweeter dimensions | 6 x 1 " |
| Load rating (RMS) | 80 W |
| Peak power | 160 W |
| Dispersion | 110° horizontal, vertical 7 ° |
| Impedance | 8 Ohm(s) |
| SPL (1W/1m) | 91 dB |
| Max. SPL | 110 dB |
| Material | Die-cast aluminium |
| Surface | Powder coated |
| Color | Black |
| Width | 122 mm |
| Height | 240 mm |
| Depth | 126 mm |
| Weight | 3,3 kg |
