LD Systems DAVE 8 XS W
LD Systems

DAVE 8 XS W LD Systems · Active Loudspeakers

Compact active PA system white

DAVE 8 XS W - Compact active PA system white
Power
350 W
Weight
29 kg
Dimensions
170 x 144 x 350 mm
Request a Quote Manufacturer
Audio Active Loudspeakers
Reference LDDAVE8XSW Brand LD Systems
  • Description
  • Specifications
  • Downloads
  • Accessories
  • Related

Description

About the DAVE 8 XS W

Manufacturer detail for the DAVE 8 XS W by LD Systems.

Technical Overview

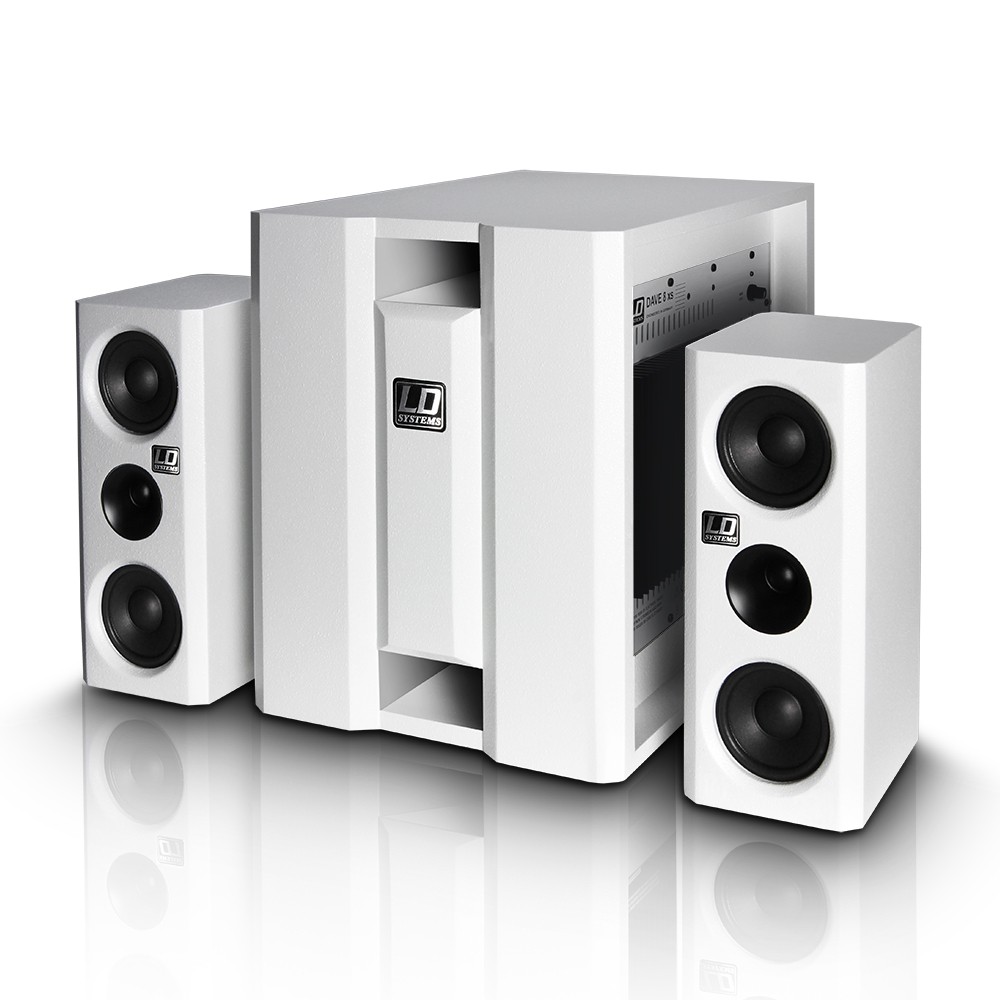

The new LD Systems DAVE8 XS W is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE8 XS W has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2. The front grille is included in delivery

Specifications

Technical Specifications

Full published figures for the DAVE 8 XS W by LD Systems.

Weight
29 kg
Product type
PA Complete Systems
Color
white
Max. SPL (continuous)
117 dB
Frequency response
45 - 19000
Dispersion (H x V)
60 x 60 °
Low/mid Woofer dimensions
8 "
Woofer dimensions (mm)
203.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Cabinet construction
Bandpass
Cabinet material
15 mm MDF
Show all 49 specifications Show fewer specifications
Cabinet surface
texture paint
Subwoofer width
352 mm
Subwoofer height
430 mm
Subwoofer depth
434 mm
Midrange dimensions
2 x 4 "
Midrange dimensions (mm)
2 x 101.6 mm
Midrange magnet
Ferrite
Midrange brand
Custom-made
Tweeter dimensions
1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Ferrite
Tweeter brand
Custom-made
Mid/Hi system impedance
4 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
12 mm MDF
Mid/Hi system cabinet surface
texture paint
Mid/Hi system width
144 mm
Mid/Hi system height
350 mm
Mid/Hi system depth
170 mm
Mid/Hi system features
16 mm flange, 2 x M6 mounting points for wall mounting, Grilles for satellites included
Amplifier
Class A/B
Amplifier output system (RMS)
350 W
Amplifier output system (peak)
1400 W
Protection circuits
limiter, overload, Short circuit
Cooling
Aluminium heat sink
Controls
Power, Sub level, Subwoofer Phase Reverse, volume
Indicators
Power
Power supply
transformer
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Line inputs
2
Line input connectors
6.3 mm jack, RCA, XLR
Loudspeaker outputs
2
Speaker output connections
Speakon compatible Left/Right
Dimensions (L x W x H)
170 x 144 x 350 mm
Power Consumption
350 W

Documentation

Downloads

Datasheets, manuals and drawings for the DAVE 8 XS W.

Operation & Maintenance Manual PDF

Compatible

Accessories for the DAVE 8 XS W

Add-ons and spares that fit this product.

LD Systems LDD8SUBBAG LD Systems LDD8SUBBAG Protective Cover for DAVE 8 Subwoofer LD Systems LDFX300 LD Systems LDFX300 2-Channel Pedal with 16 Digital Effects LD Systems LDSATWMB10W LD Systems LDSATWMB10W LD Systems SAT WMB 10 W - Wall Mount for Speakers, White
