Martin Audio X8B
Martin Audio

X8B Martin Audio · Passive Loudspeakers

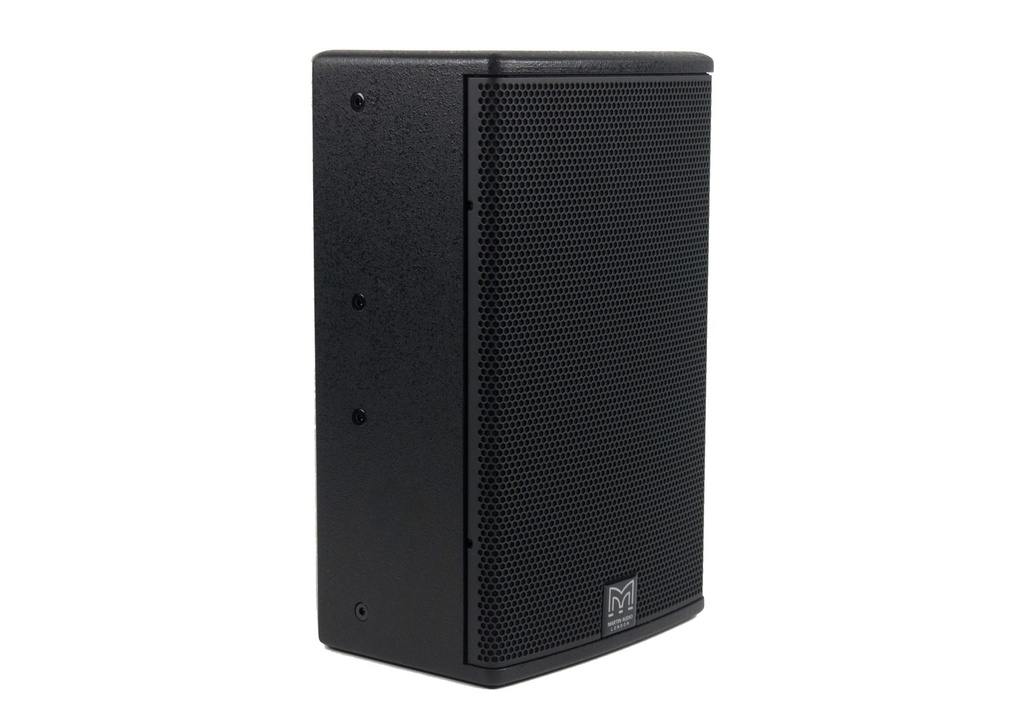

8" Passive Two-way Portable Loudspeaker

The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indication of its high output capability.
Power
200 W
Request a Quote Data Sheet Manufacturer
Reference X8B Brand Martin Audio

Overview

X8B at a Glance

8'' Blackline X Speaker Black

Description

About the X8B

Manufacturer detail for the X8B by Martin Audio.

Technical Overview

As a stand-alone loudspeaker, it has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as a micro stage monitor. Complemented by a BlacklineX subwoofer, it is the ideal, simple-to-use system for portable applications and in

Specifications

Technical Specifications

Full published figures for the X8B by Martin Audio.

TYPE
Ultra-Compact, passive two-way system
FREQUENCY RESPONSE (5)
70Hz-20kHz ± 3dB, -10dB @ 60Hz
DRIVER
LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver
RATED POWER (2)
200W AES, 800W peak
SENSITIVITY (8)
92dB
MAXIMUM SPL (9)
115dB continuous, 121dB peak
NOMINAL IMPEDANCE
8Ω
DISPERSION (-6dB)
90° H x 50° V (user-rotatable)
CROSSOVER
2.9kHz passive
ENCLOSURE
Multi-angle birch/poplar ply
FINISH
Black textured paint
PROTECTIVE GRILLE
Black perforated steel with scrim cloth backing
Show all 20 specifications Show fewer specifications
CONNECTORS
2 x NL4 type
PIN CONNECTIONS (INPUT)
1+/1-
PIN CONNECTIONS (LINK)
1+/- to 1+/-
FITTINGS
13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle
DIMENSIONS
(W) 257mm x (H) 422mm x (D) 243mm (W) 10.1ins x (H) 16.6ins x (D) 9.6ins
WEIGHT
8kg (17.6lbs)
ACCESSORIES
Wall bracket, eyebolts
Power Consumption
200 W

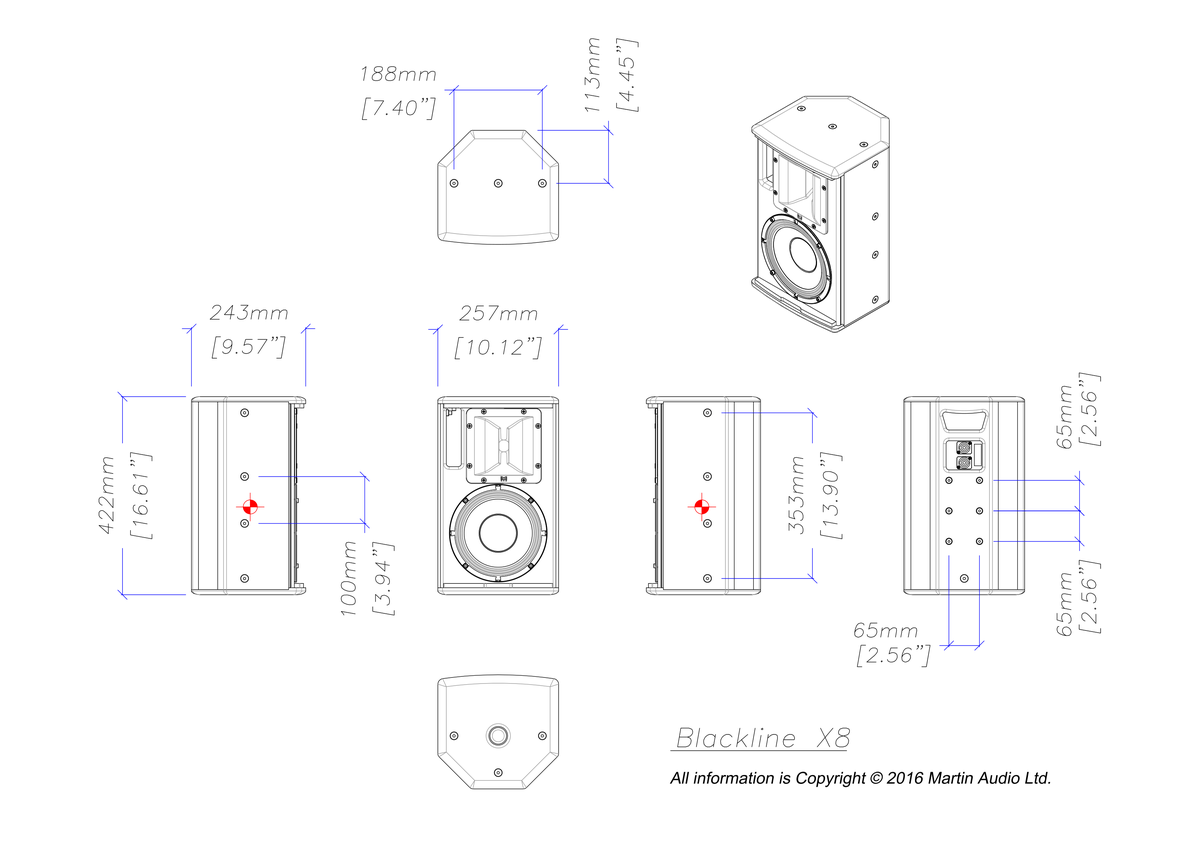

Technical Drawing

Technical drawing for X8B
Download PDF

Documentation

Downloads

Datasheets, manuals and drawings for the X8B.

Data Sheet PDF Operation & Maintenance Manual PDF Technical Drawing PDF CAD Drawing DWG
