XP12 - Professional Audio & Lighting Equipment Description
Detailed information about the XP12 by Martin Audio
Technical Overview

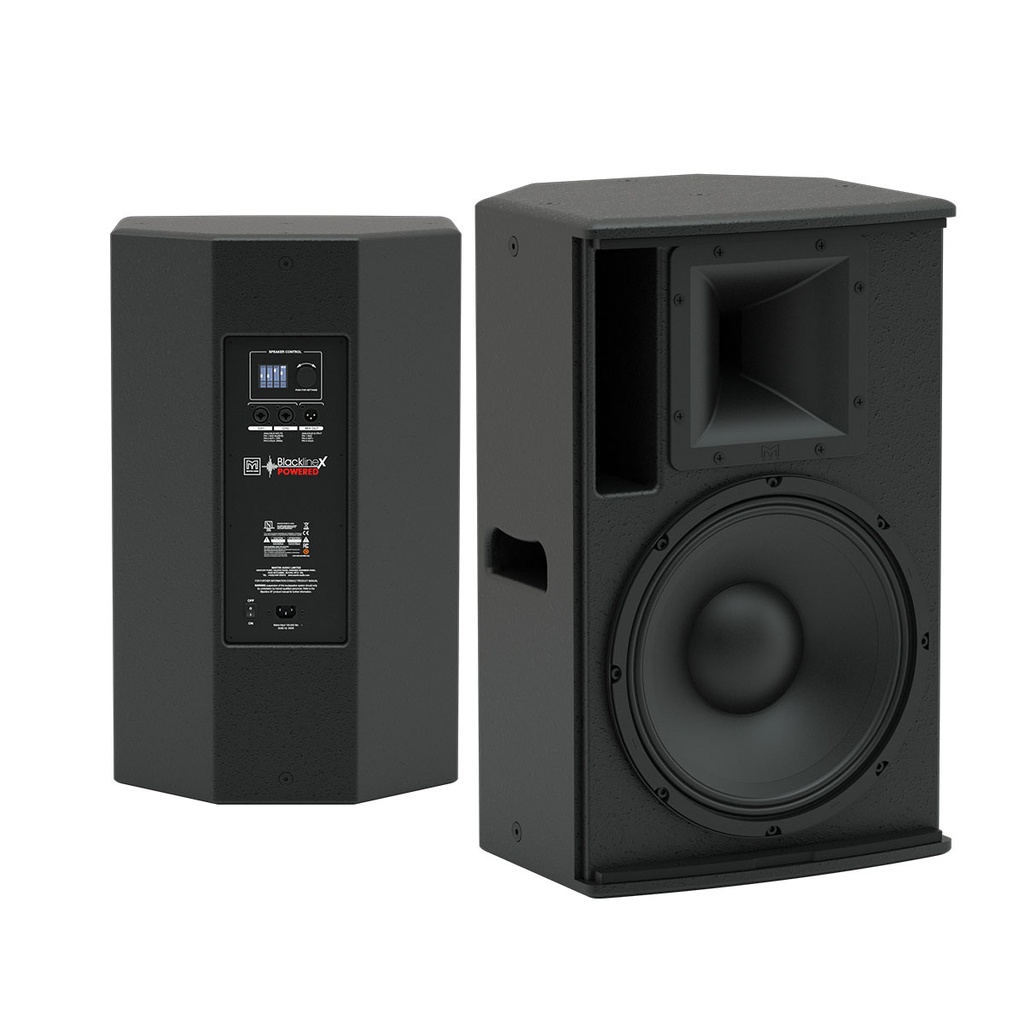

Featuring a 12” (300mm) LF drivers and a 1” (25mm) exit compression driver on an 80° x 50° rotatable horn, it is ideal for small to mid-size indoor venues requiring class-leading sound from a compact enclosure. The LF driver has a 2.5” (65mm) voice coil and powerful magnet system for the tightest ba
XP12 Technical Specifications
Complete technical specifications and documentation for the XP12 by Martin Audio

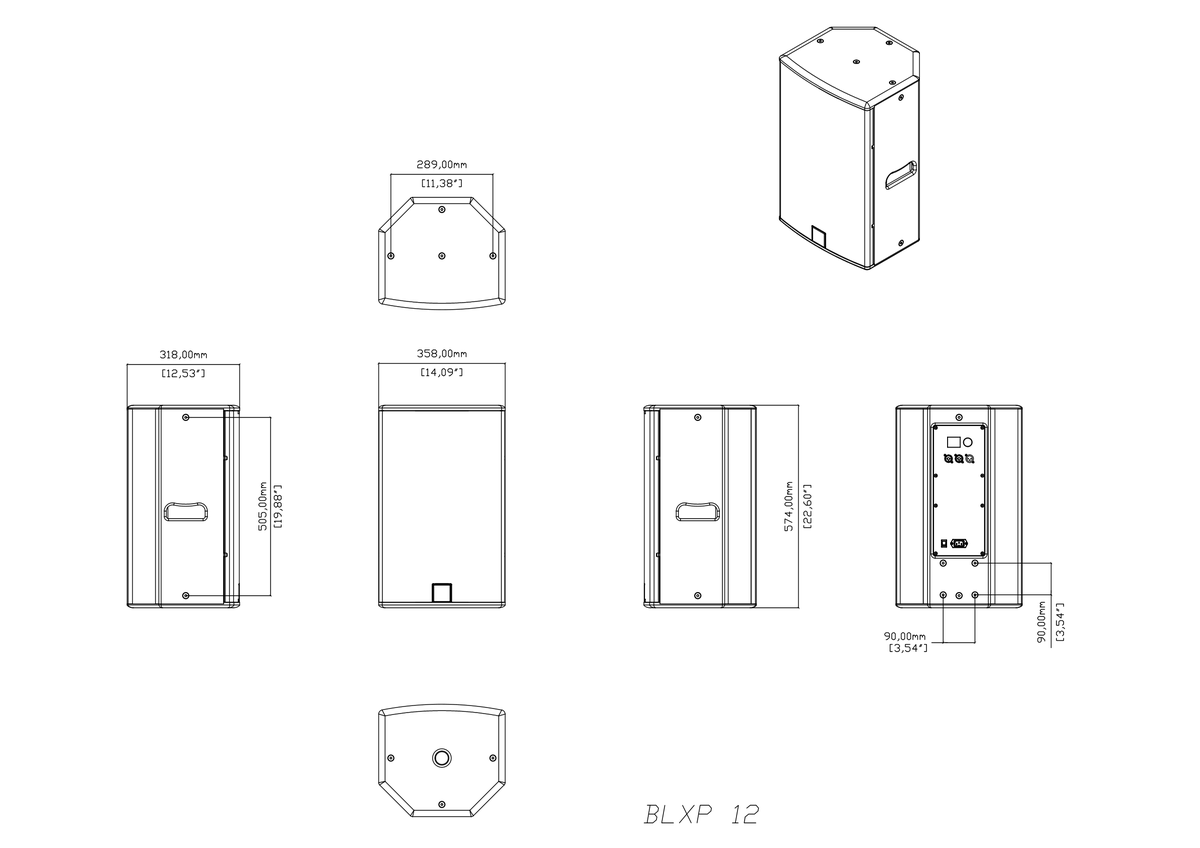

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Switch-mode, fixed frequency with PFC |
| FREQUENCY RESPONSE (5) | 62Hz – 20kHz ±3dB, -10dB @ 50Hz |
| DRIVERS | LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
| DISPERSION (-6dB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.3kHz active, 24dB/octave |
| INPUT CONNECTORS | 2 x female XLR/ 1⁄4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 kΩ balanced |
| 1⁄4” JACK TS INPUT IMPEDANCE | 1 MΩ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600Ω balanced |
| Input channel EQ | 3-band on each channel plus HPF (Ch1/2) |
| Speaker EQ | 3 speaker mode/voicing presets |
| Protection | LF and HF Peak and RMS limiting, amplifier thermal protection |
| PEAK OUTPUT POWER | 1300W total 1000W LF, 300W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled |
| MAXIMUM AMBIENT TEMPERATURE | 35°C (95°F) for full output |
| AC INPUT OPERATING RANGE | 100-240V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 550W Max |
| MAINS CONNECTOR | 3-pin IEC |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| FITTINGS | 17 x M8 inserts, pole-mount socket, 2 x pocket handle |
| DIMENSIONS | (W) 358mm x (H) 574mm x (D) 318mm (W) 14.1in x (H) 22.6in x (D) 12.5in |
| WEIGHT | 18kg (40lbs) |
