BSX TW Audio
TWAUDiO's biggest subwoofer to date, theBigSubwoofer eXtender (BSX) employs two immensely powerful 21" drivers, each delivering 7.2 kW peak, to create a massive low-end foundation for the biggest of systems.Even in the biggest of stadiums, the hybrid design of the BSX ensures that this true sub bass extension will be felt as well as heard.The use of extremely stiff yet lightweight membranes allows the BSX to deliver frequencies of up to 120 Hz with no sacrifice in fidelity.As a full range sub, the BSX is fully compatible with all TWAUDiO series.
Weight
109 kg
Dimensions
900 x 1,406 x 606 mm
Specifications
Technical Specifications
Full published figures for the BSX by TW Audio.
- Drivers
- 2 × 21"
- Frequency range
- 27 – 120 Hz
- Power capacity program / peak
- 2 × 3600 W / 2 × 7200 W
- Impedance
- 2 × 4 Ω
- Coverage
- omni
- Sensitivity 1 W / 1 m
- 99 dB
- SPLmax / 1 m
- 142 dB
- Connection
- Driver 1: NL4 2± Driver 2: NL4 1±
- Dimensions (H × W × D)
- 606 × 1406 × 900 mm (without castors) [23.86 × 55.35 × 35.43 in]
- Weight
- 109 kg [240 lbs]
- Finish
- Polyurea coating, black
- Accessories
- FDBSX, CoverBSX
Show all 14 specifications Show fewer specifications
- Options
- Warnex texture paint, RAL colors
- Dimensions (L x W x H)
- 900 x 1,406 x 606 mm
Documentation
Downloads

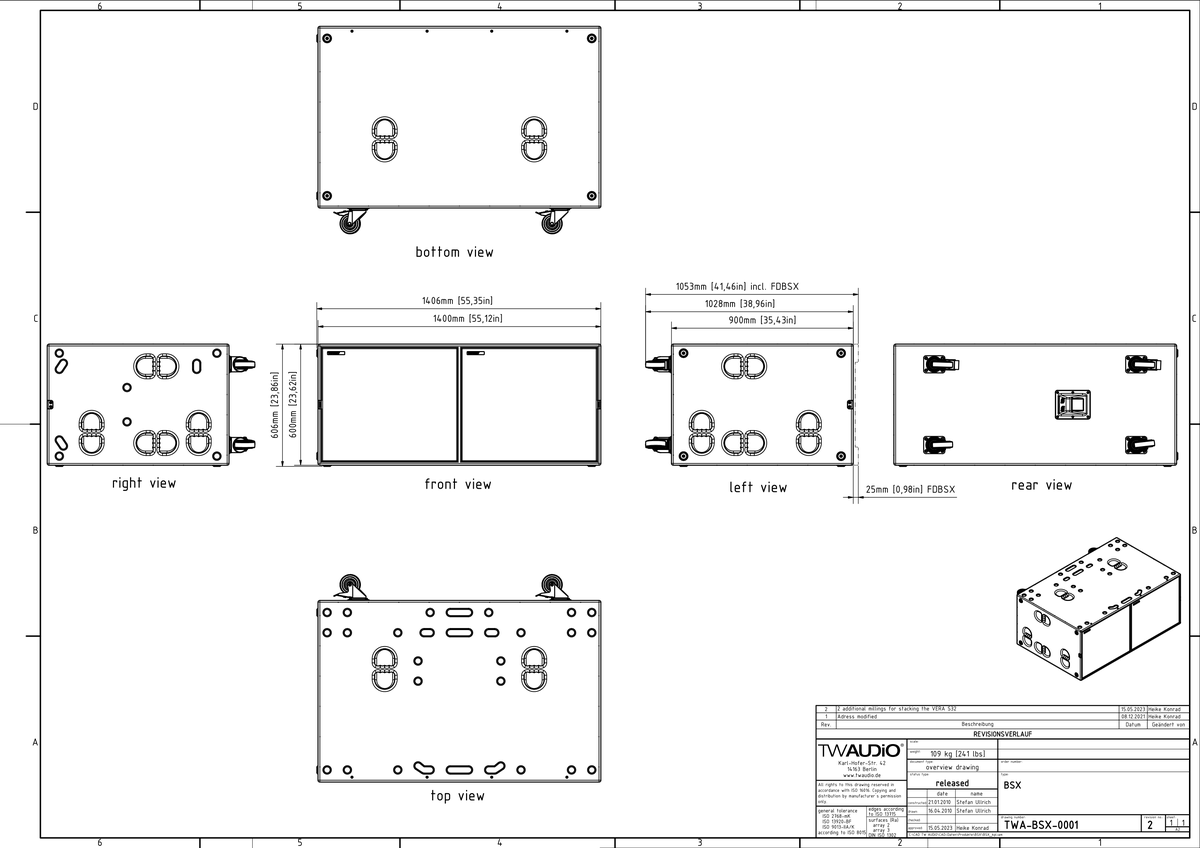

Datasheets, manuals and drawings for the BSX.
