T20i-60°-V | TW Audio Professional Audio & Lighting Equipment

Technical Overview

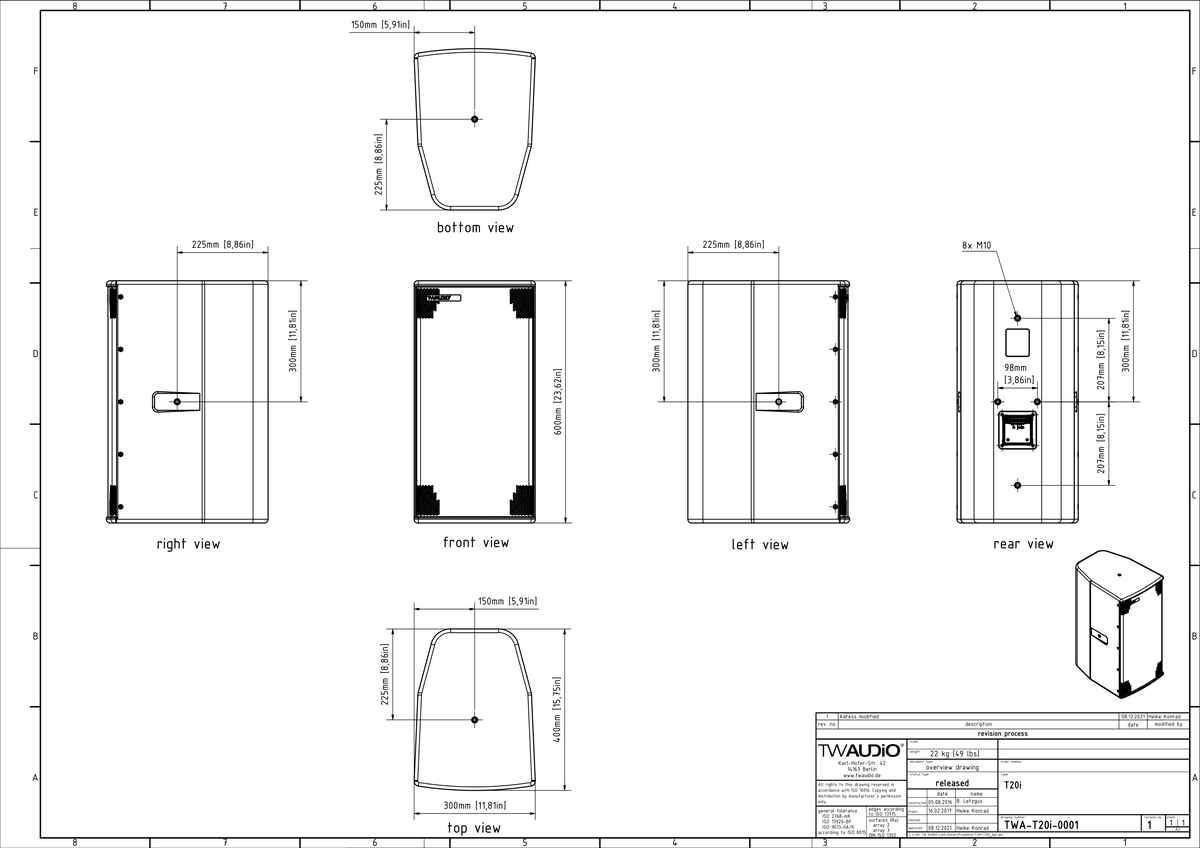

The T20i is a consequential transformation of our users requirements. A compact, 30 cm slim 2 × 10“ / 1.4“ top in a symmetric construction, perfectly suitable for use in upright and crosswise applications.Thanks to the sophisticated driver arrangement and passive crossover the T20i has a constant directivity, horizontally as well as vertically. Particularly installations where low ceilings are an issue and conventional two-way loudspeakers are a mere compromise, the T20i shows its true potential.The T20i comes standard with a rotatable 90° × 50° horn. With the optional 60° × 40° horn thus there are four different dispersion angles possible.Key featuresCompact installation loudspeaker with symmetrical driver arrangementEquipped with 2 × 10” long excursion chassisHF equipped with 1.4" compression driver with 3" diaphragm90° × 50° or 60° × 40° rotatable constant directivity HF hornHorizontal and vertical installation with symmetrical dispersion possibleIntegrated threads for numerous installation possibilitiesCoherent phase response with all TWAUDiO productsOperation with dedicated TWAUDiO presets on Dynacord TGX / IPX, Powersoft T / X or Lab.gruppen PLM / D series
