VPL-7R | Vision Professional Entertainment Lighting Equipment
Professional Entertainment Lighting solution by Vision - Available throughout the Middle East
Vision

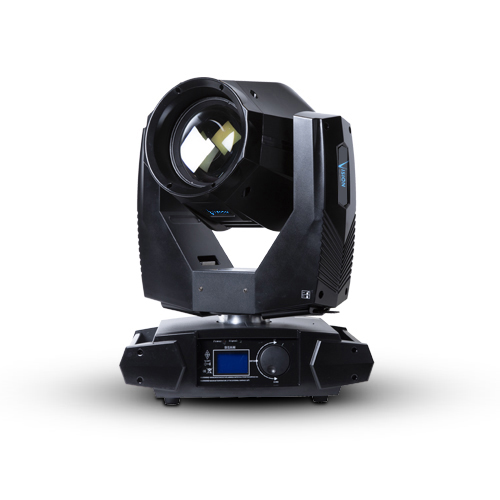

Linear focus moving head with eight-facet rotating prism, soft light effect and blue LED display + wheel control
Technical Specifications
Complete technical specifications and documentation for the VPL-7R by Vision
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| DMX channel | 16 channels |
| Control model | DMX512 auto, blue LED display and wheel control |
| Pan/tilt motor | Ultra quiet, super high speed 3-phase step motors |
| Color temperature | 8500K, life span 2000 hours |
| Optical lens | High-precision optical mirrors glued |
| Soft light effect | Angle of soft spot can be adjusted |
| Focus | Linear focus |
| Dimmer | 0-100% linear dimmer |
| Beam angle | Parallel beam 0-3.8 degrees |
| Strobe | Two-piece strobe (0.5-9/second) |
| Motor | 13 ultra-quiet motors, two piece 3-phase motors, 16bit |
| IP rating | IP20 |
| Appearance | High temperature alloy plastic with die-cast handle |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VPL-7R by Vision
