Image of TW Audio T20i-90°-H

TW Audio - T20i-90°-H

The T20i is a consequential transformation of our users requirements. A compact, 30 cm slim 2 × 10“ / 1.4“ top in a symmetric construction, perfectly suitable for use in upright and crosswise applications.Thanks to the sophisticated driver arrangement and passive crossover the T20i has a constant directivity, horizontally as well as vertically. Particularly installations where low ceilings are an issue and conventional two-way loudspeakers are a mere compromise, the T20i shows its true potential.The T20i comes standard with a rotatable 90° × 50° horn. With the optional 60° × 40° horn thus there are four different dispersion angles possible.Key featuresCompact installation loudspeaker with symmetrical driver arrangementEquipped with 2 × 10” long excursion chassisHF equipped with 1.4" compression driver with 3" diaphragm90° × 50° or 60° × 40° rotatable constant directivity HF hornHorizontal and vertical installation with symmetrical dispersion possibleIntegrated threads for numerous installation possibilitiesCoherent phase response with all TWAUDiO productsOperation with dedicated TWAUDiO presets on Dynacord TGX / IPX, Powersoft T / X or Lab.gruppen PLM / D series
TW Audio
The T20i is a consequential transformation of our users requirements. A compact, 30 cm slim 2 × 10“ / 1.4“ top in a symmetric construction, perfectly suitable for use in upright and crosswise applications.Thanks to the sophisticated driver arrangement and passive crossover the T20i has a constant directivity, horizontally as well as vertically. Particularly installations where low ceilings are an issue and conventional two-way loudspeakers are a mere compromise, the T20i shows its true potential.The T20i comes standard with a rotatable 90° × 50° horn. With th ...


Description

The T20i is a consequential transformation of our users requirements. A compact, 30 cm slim 2 × 10“ / 1.4“ top in a symmetric construction, perfectly suitable for use in upright and crosswise applications.Thanks to the sophisticated driver arrangement and passive crossover the T20i has a constant directivity, horizontally as well as vertically. Particularly installations where low ceilings are an issue and conventional two-way loudspeakers are a mere compromise, the T20i shows its true potential.The T20i comes standard with a rotatable 90° × 50° horn. With the optional 60° × 40° horn thus there are four different dispersion angles possible.Key featuresCompact installation loudspeaker with symmetrical driver arrangementEquipped with 2 × 10” long excursion chassisHF equipped with 1.4" compression driver with 3" diaphragm90° × 50° or 60° × 40° rotatable constant directivity HF hornHorizontal and vertical installation with symmetrical dispersion possibleIntegrated threads for numerous installation possibilitiesCoherent phase response with all TWAUDiO productsOperation with dedicated TWAUDiO presets on Dynacord TGX / IPX, Powersoft T / X or Lab.gruppen PLM / D series


Specifications

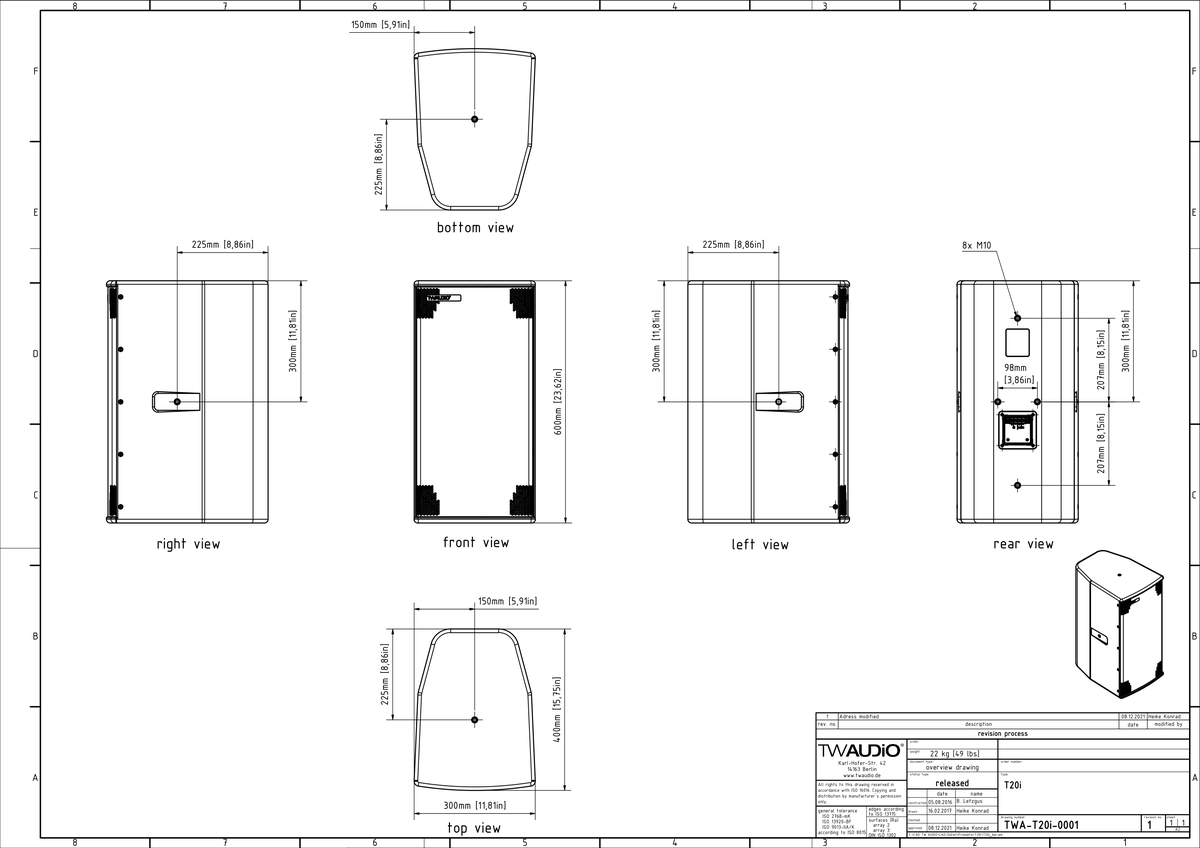

Technical Drawing
Technical drawing for T20i-90°-H
Download PDF
Product Specifications
Name Value
Drivers LF: 2 × 10“ HF: 1 × 1.4“ exit with 3" diaphragm
Frequency range 60 Hz - 18000 Hz
Power capacity program / peak 1000 / 2000 W
Impedance 8 Ω
Coverage (h × v) 90° × 50° or 60° × 40° HF-horn, exchangeable and rotatable
Sensitivity 1 W / 1 m 106 dB
SPL max / 1 m 138 dB
Connection screw terminal 1±
Optional connections speakON™-option SO-top cable gland CG
Dimensions (H × W × D) 600 × 300 × 400 mm [23.62 × 11.81 × 15.75 in]
Weight 23.4 kg [52 lbs]
Finish Warnex texture paint
Accessories SBT20i, QBT20i, RSM10, FA20i, WHT20
Options RAL colors, 60° × 40° horn

Downloads

Data Sheet
PDF
OM Manual
PDF
Quickstart Guide
PDF
Drawing (DWG)
AutoCAD
Drawing (PDF)
PDF
