Description
Detailed information about the CDD10BTX-WR by Martin Audio
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD10TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD d
Technical Specifications
Complete technical specifications and documentation for the CDD10BTX-WR by Martin Audio

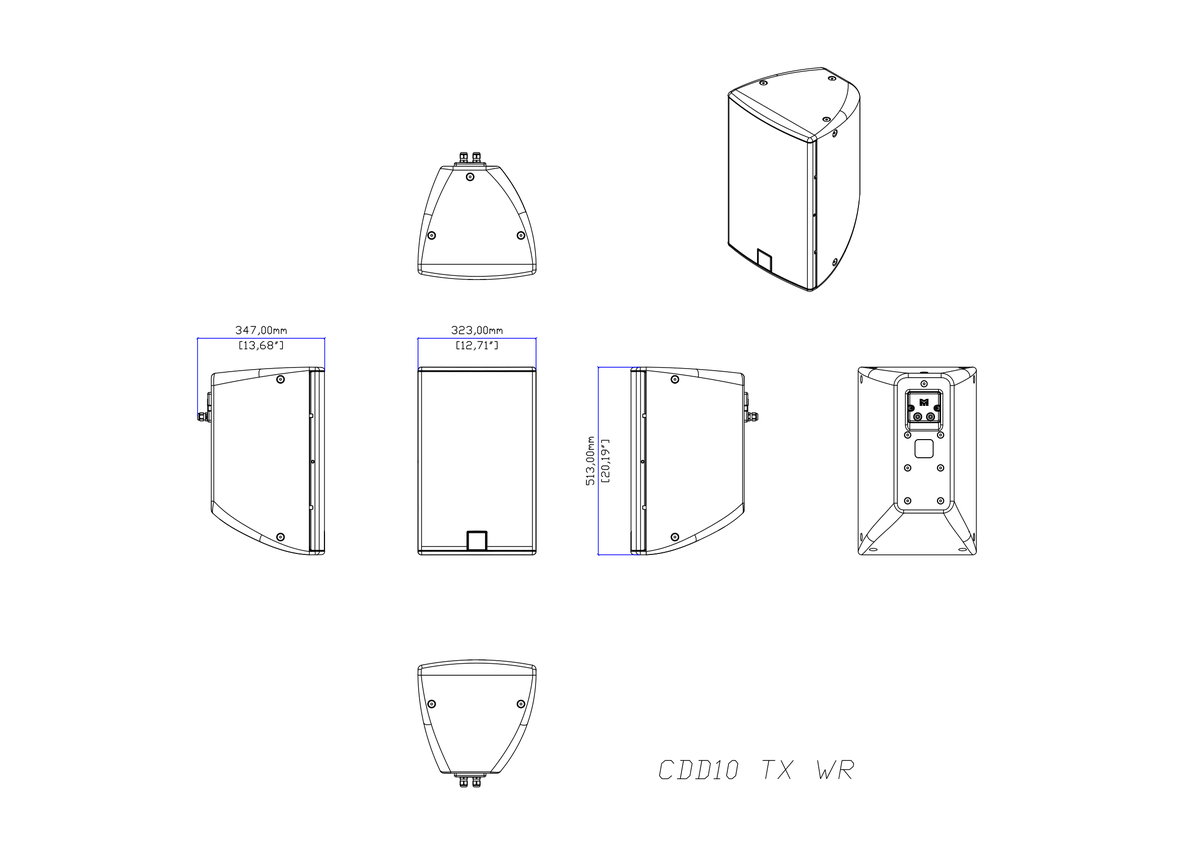

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 120W AES, 240W peak |
| TRANSFORMER SETTINGS | 70V line: 120W, 60W, 30W, 15W (no low impedance) 100V line: 120W, 60W, 30W(no low impedance) |
| SENSITIVITY (8) | 96dB |
| MAXIMUM SPL (9) | 117dB continuous, 123dB peak |
| NOMINAL IMPEDANCE | Line transformer taps: 42, 83, 166, 333 ohms |
| DISPERSION (-6dB) | 110˚-75˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2kHz passive |
| ENCLOSURE | 28 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Terminal block with spring connections, weatherproof input panel cover with cable gland |
| PHOENIX CONNECTOR 5 WAY | 70V: Common, 15W, 30W, 60W, 120W 100V: Common, 30W, 60W, 120W |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.23ins x (D) 12.2ins |
| WEIGHT | 17.1kg (37.73lbs) |
