Description
Detailed information about the CDD15B by Martin Audio
Technical Overview
The Coaxial Differential Dispersion technology employed in the CDD15 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver
Technical Specifications
Complete technical specifications and documentation for the CDD15B by Martin Audio

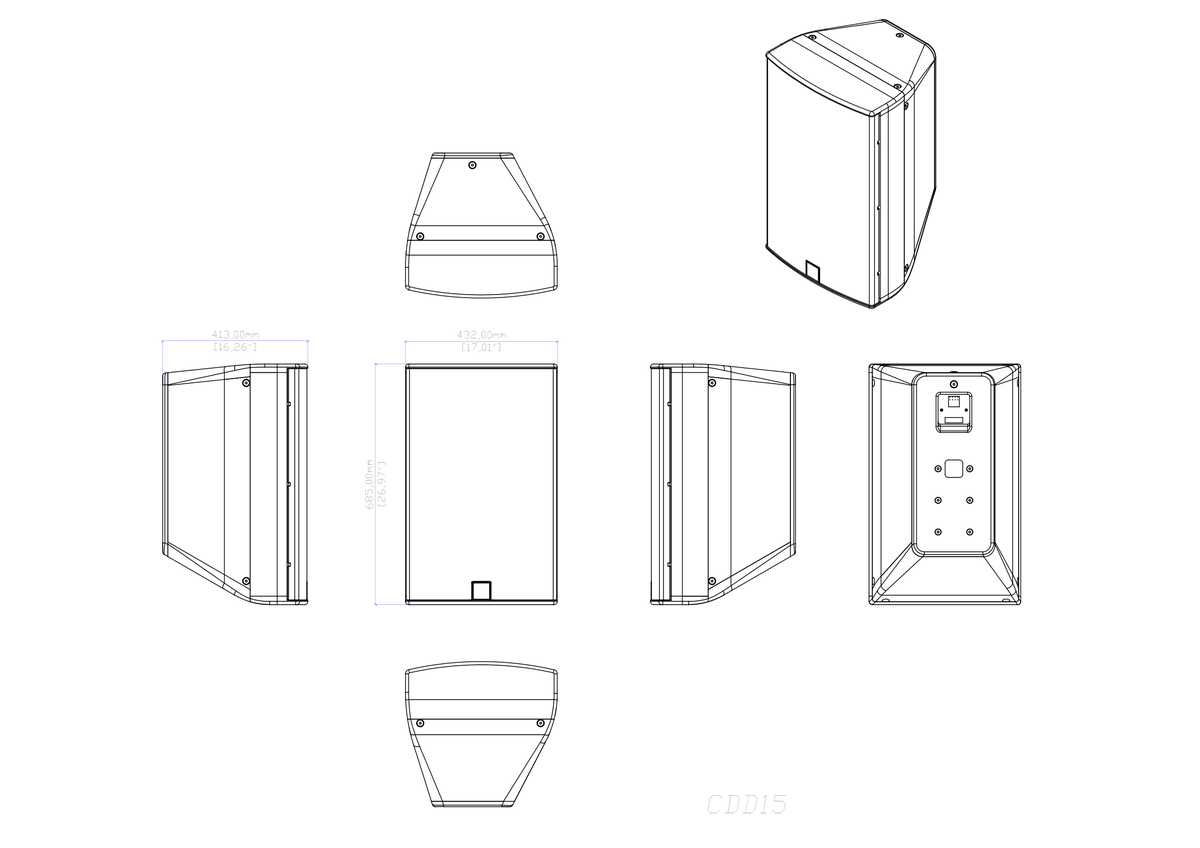

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | High-output, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 55Hz-18kHz ± 3dB, -10dB @ 45Hz |
| DRIVER | LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (8) | 100dB |
| MAXIMUM SPL (9) | 126dB continuous, 132dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 100˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | 68 litre, birch plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 20A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 10 x M8 fly points |
| DIMENSIONS | (W) 432mm x (H) 685mm x (D) 413mm (W) 17.01ins x (H) 26.97ins x (D) 16.26ins |
| WEIGHT | 26kg (57.32lbs) |
