Description

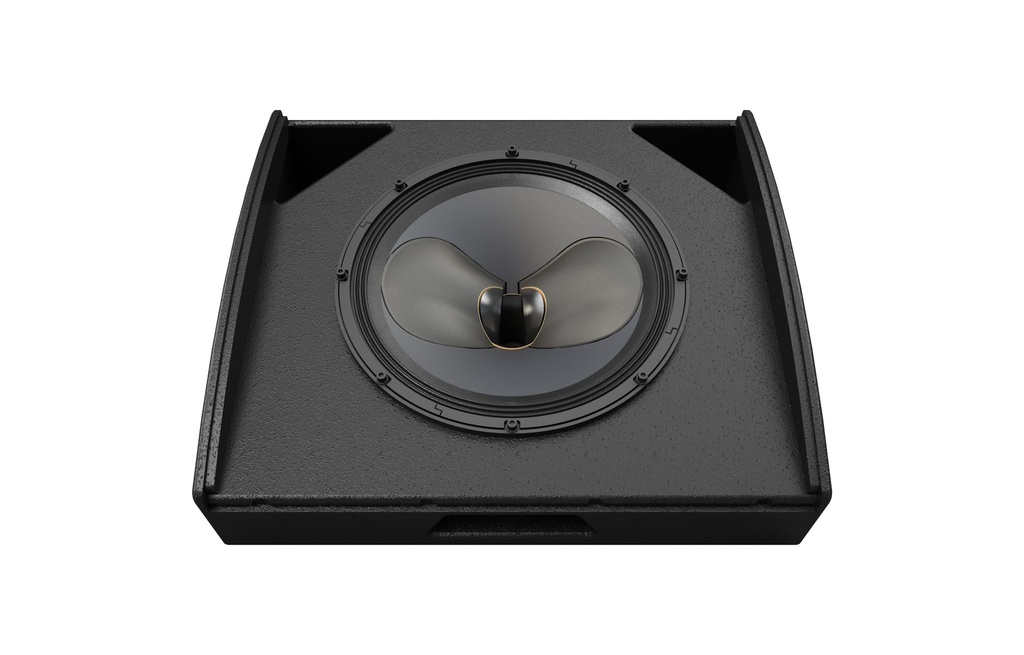

Detailed information about the LE200 by Martin Audio
Technical Overview
Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage pla
Technical Specifications
Complete technical specifications and documentation for the LE200 by Martin Audio

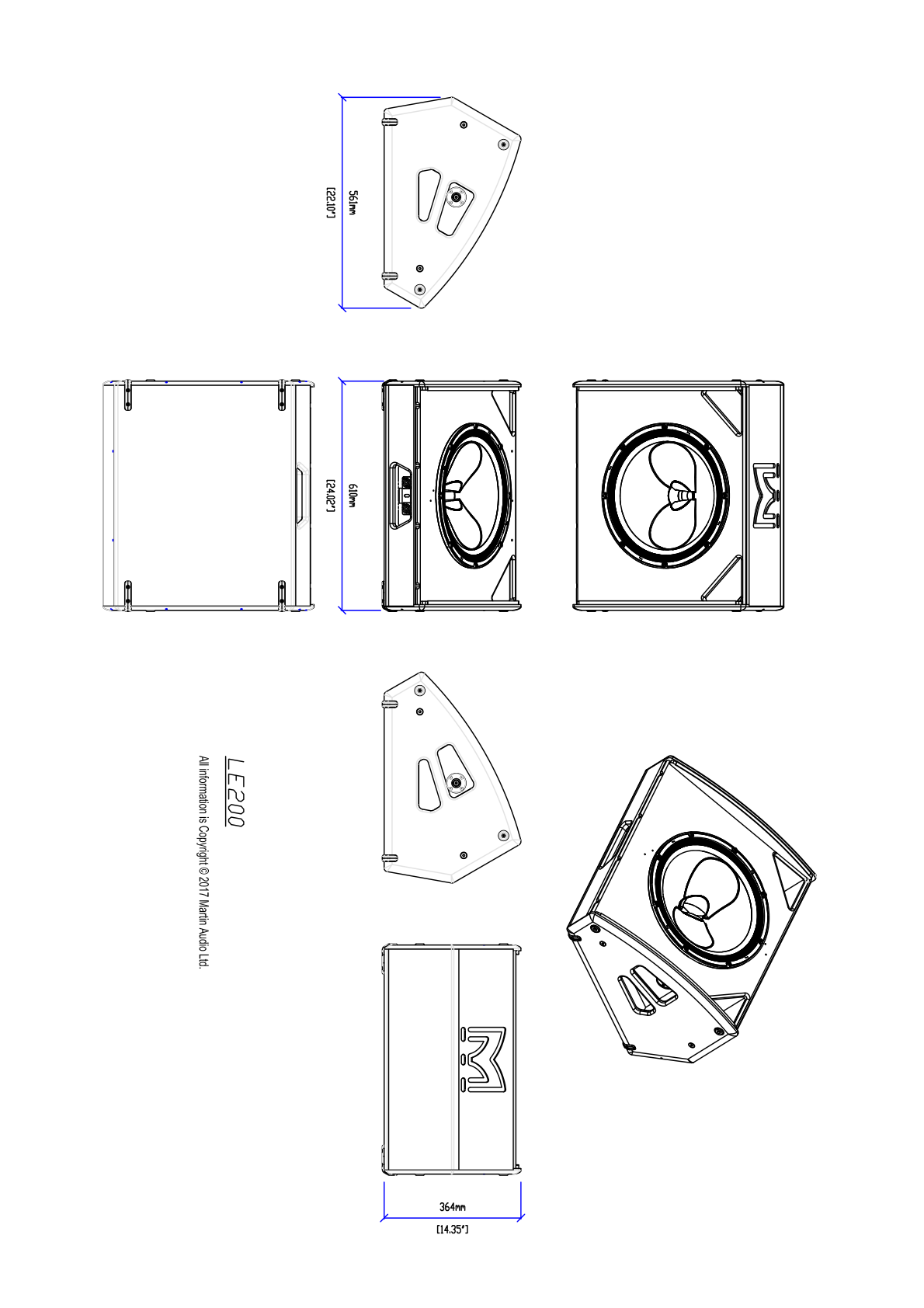

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Two-way, bi-amp/passive Coaxial Differential Dispersion |
| FREQUENCY RESPONSE (5) | 68Hz-18kHz ± 3dB, -10dB @ 50Hz |
| DRIVERS | LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (8) | LF: 100dB, HF: 103dB Passive: 100dB |
| MAXIMUM SPL (9) | 133dB peak |
| NOMINAL IMPEDANCE | LF/FR: 8Ω HF: 8Ω |
| DISPERSION (-6dB) | 100°-60° horizontal, 60° vertical |
| CROSSOVER | 1.2kHz active/passive (switchable) |
| ENCLOSURE | Birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| BAFFLE ANGLE | 30˚ |
| CONNECTORS | 4 x NL4 type |
| PIN CONNECTIONS | LF/FR: 1+/- HF: 2+/- |
| FITTINGS | 2 x pocket handles Protective rubber feet on base and sides 4 x M8 inserts |
| DIMENSIONS | (W) 610mm x (H) 364mm x (D) 562mm (W) 24.0ins x (H) 14.3ins x (D) 22.1ins |
| DIMENSIONS INCL FEET | (W) 616mm x (H) 367mm x (D) 562mm (W) 24.2ins x (H) 14.4ins x (D) 22.1ins |
| WEIGHT | 26kg (57.3lbs) |
