LE200 Martin Audio

15" Passive Coaxial Differential Dispersion Stage Monitor

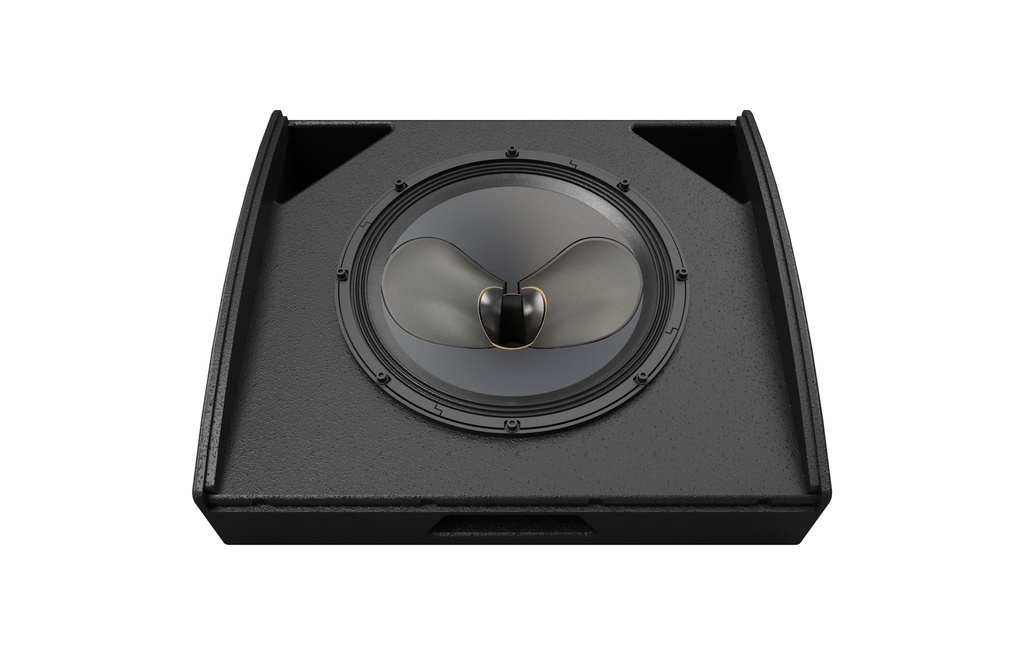

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

Power

400 W

Weight

26 kg

Dimensions

562 x 616 x 367 mm

Request a Quote Data Sheet Manufacturer

Reference LE200 Brand Martin Audio

Description

About the LE200

Manufacturer detail for the LE200 by Martin Audio.

Technical Overview

Utilising Coaxial Differential Dispersion technology, the LE200’s horizontal coverage varies from 100° directly over the monitor, narrowing to 60° further back. This maintains the sound level and balance independent of distance from the monitor and produces a consistent near-rectangular coverage pla

Specifications

Technical Specifications

Full published figures for the LE200 by Martin Audio.

TYPE: Two-way, bi-amp/passive Coaxial Differential Dispersion
FREQUENCY RESPONSE (5): 68Hz-18kHz ± 3dB, -10dB @ 50Hz
DRIVERS: LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER (2): 400W AES, 1600W peak
SENSITIVITY (8): LF: 100dB, HF: 103dB Passive: 100dB
MAXIMUM SPL (9): 133dB peak
NOMINAL IMPEDANCE: LF/FR: 8Ω HF: 8Ω
DISPERSION (-6dB): 100°-60° horizontal, 60° vertical
CROSSOVER: 1.2kHz active/passive (switchable)
ENCLOSURE: Birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing

Show all 20 specifications Show fewer specifications

BAFFLE ANGLE: 30˚
CONNECTORS: 4 x NL4 type
PIN CONNECTIONS: LF/FR: 1+/- HF: 2+/-
FITTINGS: 2 x pocket handles Protective rubber feet on base and sides 4 x M8 inserts

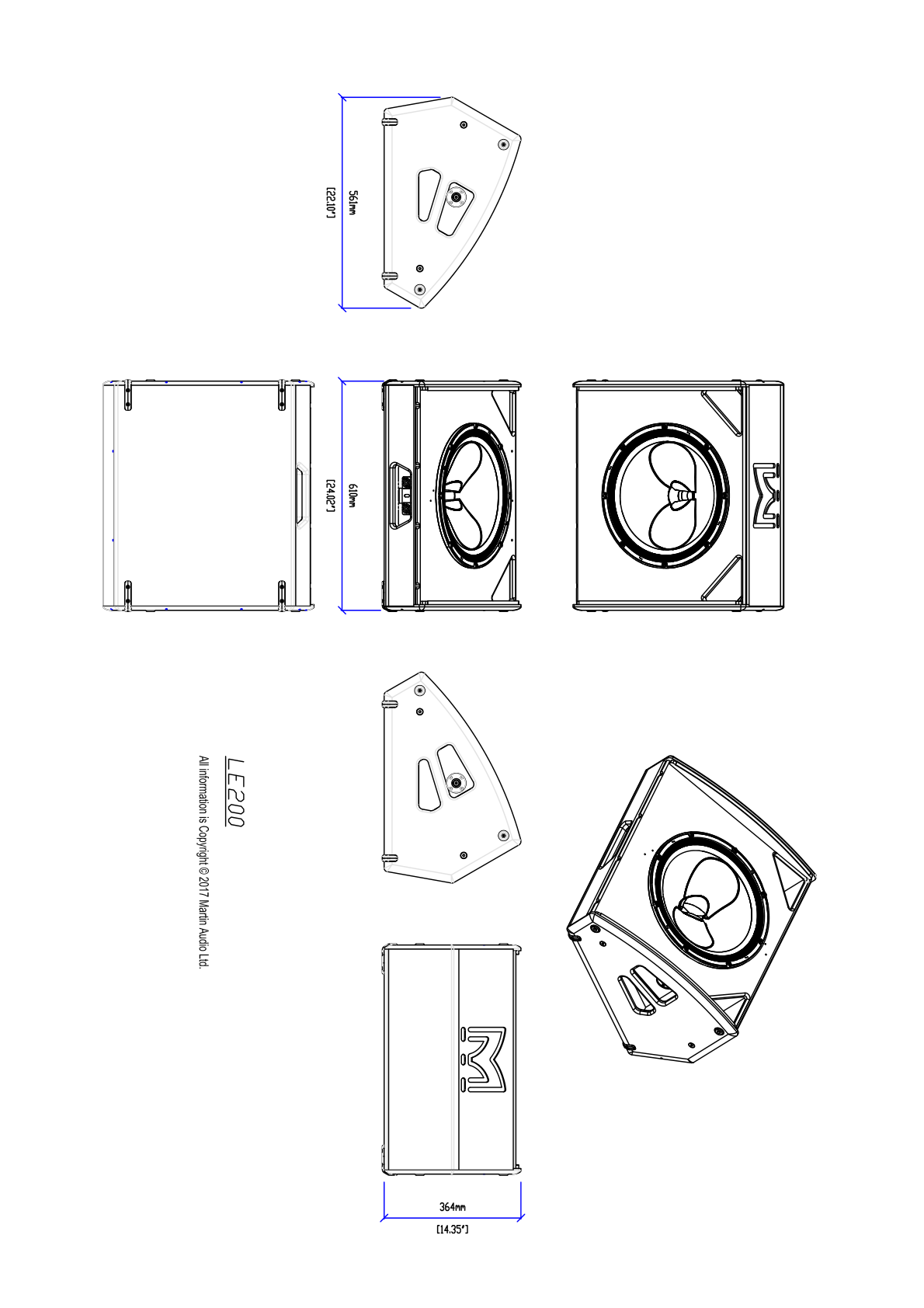

DIMENSIONS: (W) 610mm x (H) 364mm x (D) 562mm (W) 24.0ins x (H) 14.3ins x (D) 22.1ins
DIMENSIONS INCL FEET: (W) 616mm x (H) 367mm x (D) 562mm (W) 24.2ins x (H) 14.4ins x (D) 22.1ins
WEIGHT: 26kg (57.3lbs)
Power Consumption: 400 W
