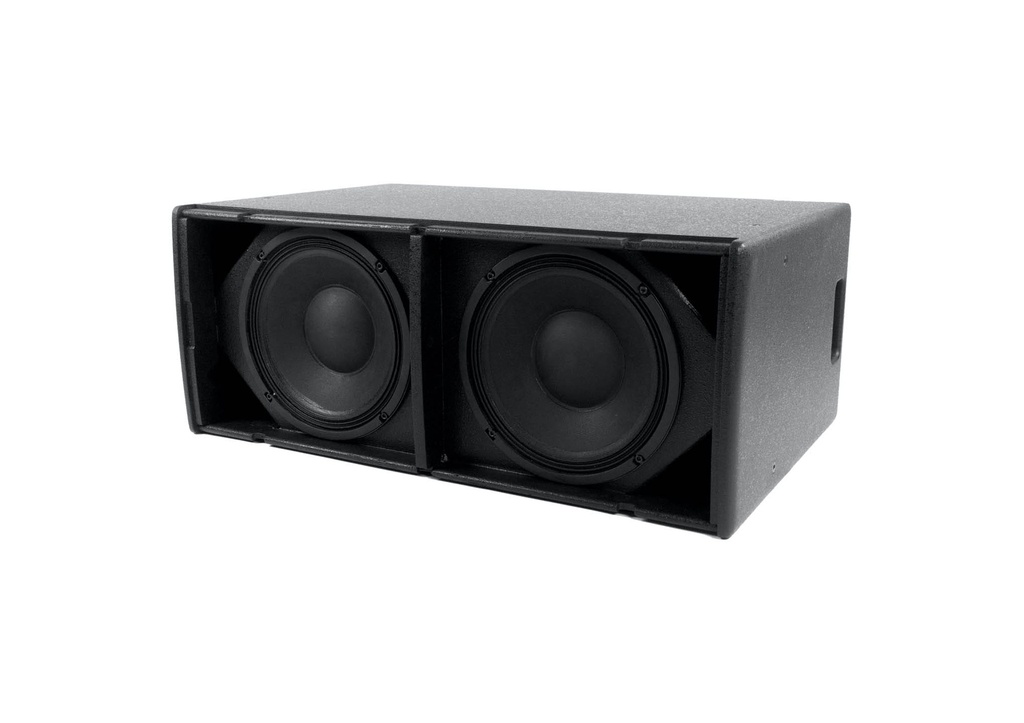

Martin Audio - SX210
Dual 10inch Subwoofer Black
Martin Audio
2 x 10'' Compact Direct Radiating Sub In Black
Description
The SX210 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finish-es available to special order. An impact-resistant perforated steel grille protects the drivers, and the enclosure has twin ergonomic handles at the rear for easy handli
Specifications

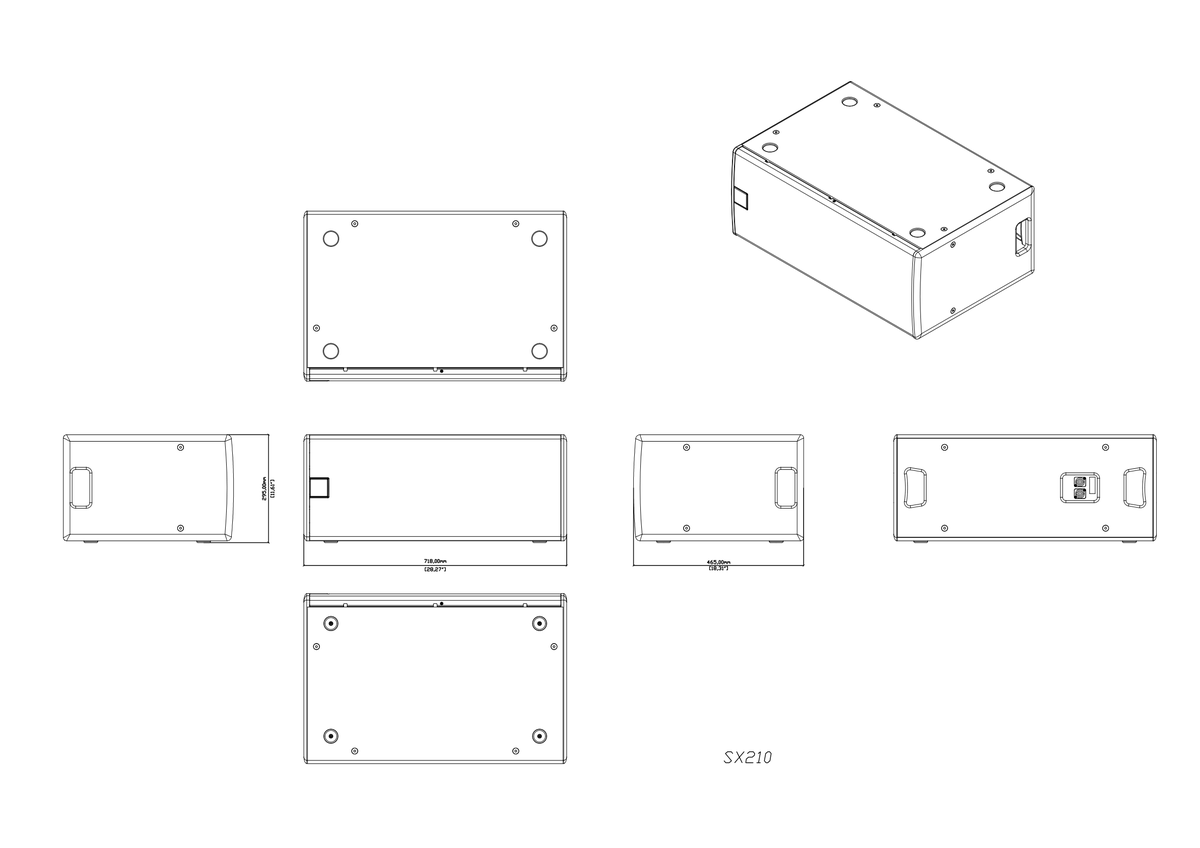

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Slimline dual, direct radiating subwoofer |
| FREQUENCY RESPONSE (5) | 50Hz-150Hz ± 3dB, -10dB @ 42Hz |
| DRIVER | 2 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet |
| RATED POWER (2) | 500W AES, 2000W peak |
| SENSITIVITY (8) | 103dB |
| MAXIMUM SPL (9) | 127dB continuous, 133dB peak (half space) |
| NOMINAL IMPEDANCE | 4Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | Birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel |
| CONNECTORS | 4 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 16 x M8 inserts, 2 x bar handles |
| DIMENSIONS | (W) 718mm x (H) 295mm x (D) 465mm (W) 28.3ins x (H) 11.4ins x (D) 18.3ins |
| WEIGHT | 20kg (44.1lbs) |
