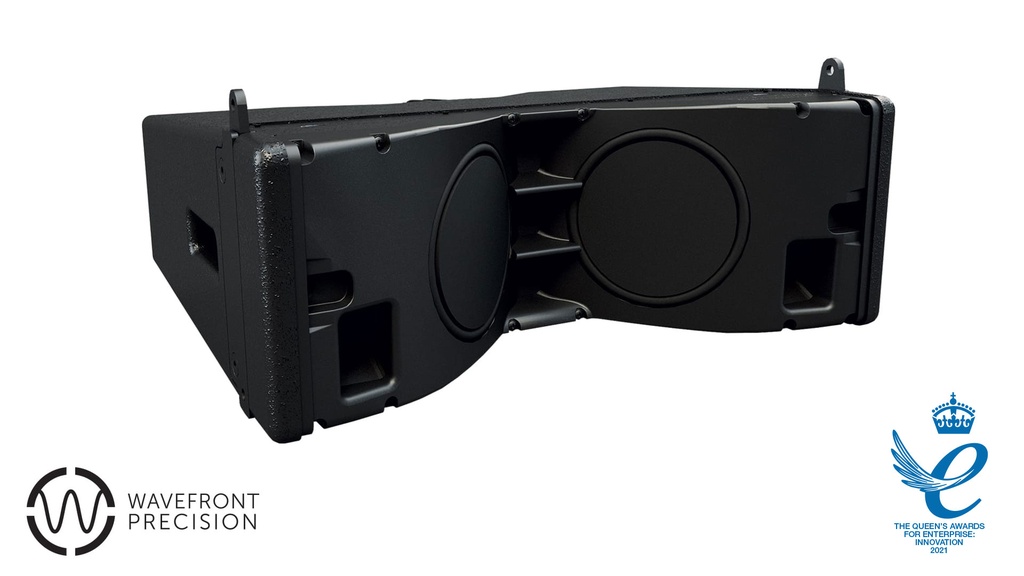

WPM - Professional Audio & Lighting Equipment Description
Detailed information about the WPM by Martin Audio
Technical Overview
WPM is incredibly versatile. Its very small footprint and light weight make it the system of choice for smaller venues which require superb fidelity, coverage consistency and control from an ultra-compact line array. With a peak SPL of 130dB peak, it is also very powerful — a 12-box array will throw
WPM Technical Specifications
Complete technical specifications and documentation for the WPM by Martin Audio

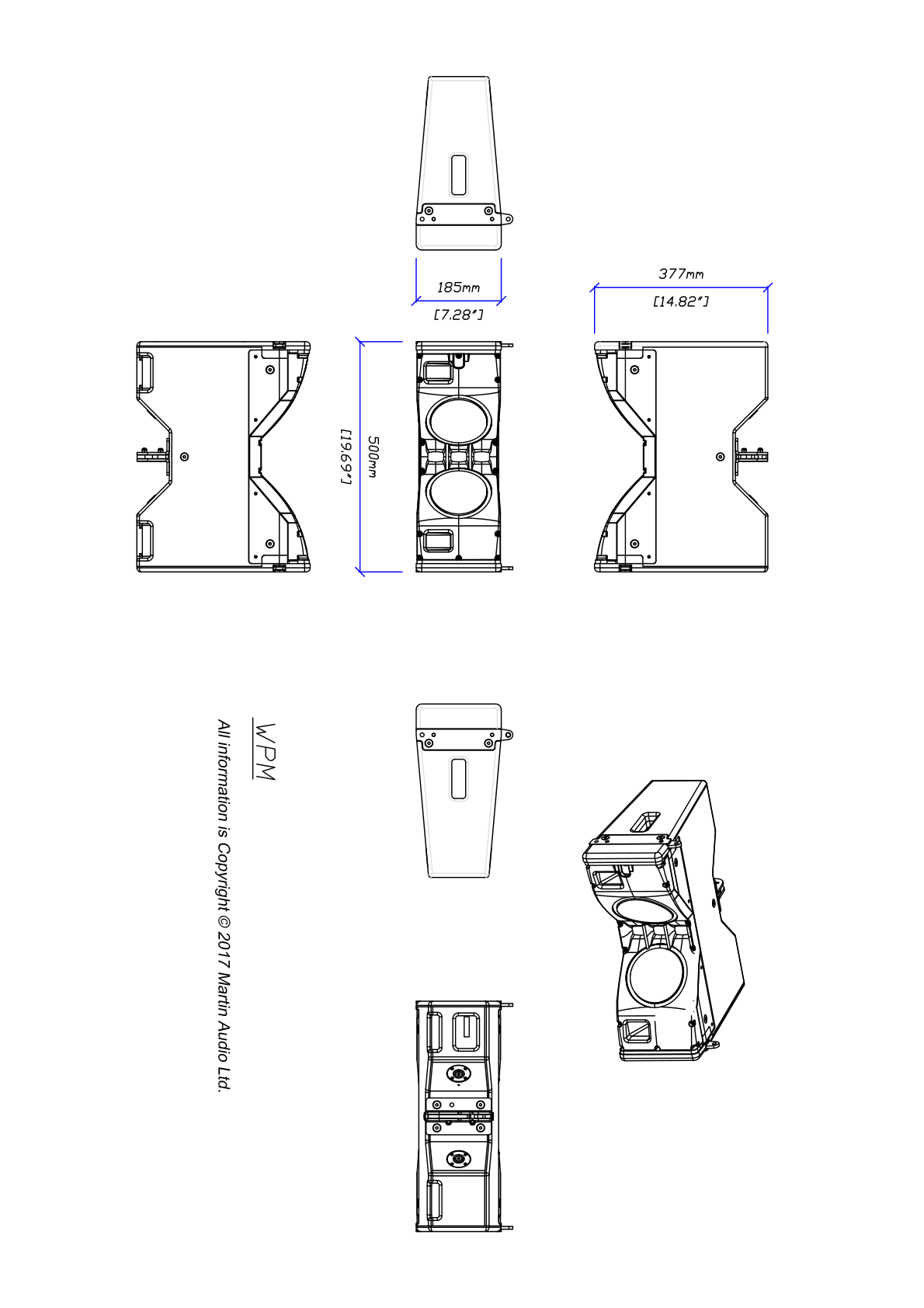

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Two-way, passive line array element |
| FREQUENCY RESPONSE (5) | 76Hz-18kHz ± 3dB |
| DRIVERS | LF: 2 x 6.5” (165mm) contoured-diaphragm /2” (50mm) edge wound CCAW voice coil, neodymium magnet drivers, reflex loaded HF: 3 x 1.4” (35mm) aluminium dome /1.4” (35mm) voice coil, neodymium magnet compression drivers on constant directivity waveguide |
| SYSTEM RESOLUTION | 1 to 4 enclosures per amplifier channel |
| MAXIMUM SPL (9) | 130dB peak (1 cabinet) |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 100º horizontal (-6dB), 125º horizontal (-10dB) 10° vertical |
| CROSSOVER | 1.2kHz passive |
| ENCLOSURE | Vertical trapezoid with 5º wall angle, Multi-laminate birch and poplar-ply construction |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black HEX perforated steel |
| CONNECTORS | 2 x NL4 type |
| INPUT CONNECTIONS | 1+/1- |
| FITTINGS | Integral 3-point rigging system 2 x side pocket handles 2 x rear grip handles |
| FLOWN ARRAY MAXIMUM | 16 enclosures in single array |
| DIMENSIONS | (W) 500mm x (H) 185mm x (D) 377mm (W) 19.7in x (H) 7.3in x (D) 14.8in |
| WEIGHT | 14kg (30.9lbs) |
