Description
Detailed information about the XP118 by Martin Audio
Technical Overview

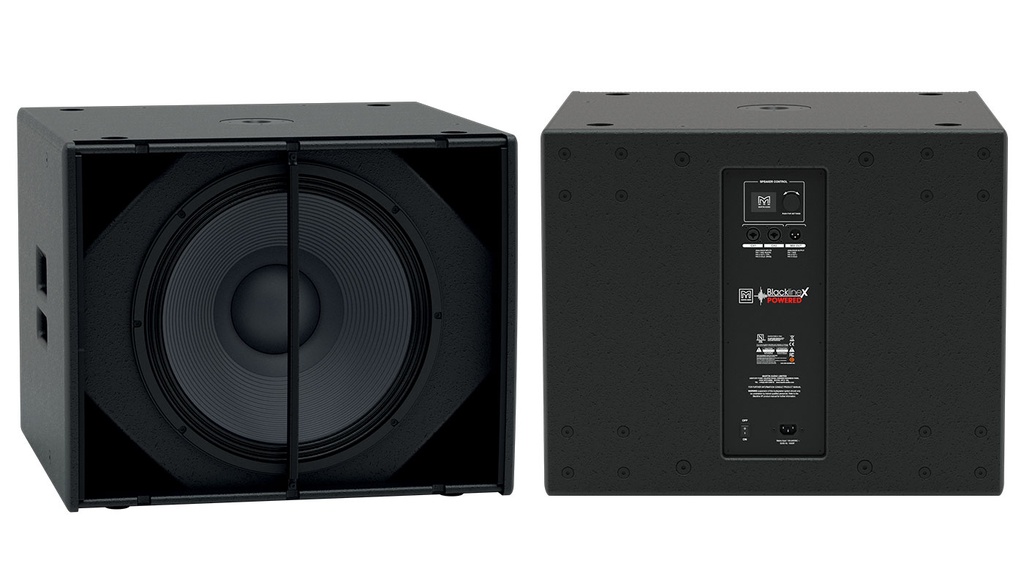

Featuring a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels. A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low fr
Technical Specifications
Complete technical specifications and documentation for the XP118 by Martin Audio

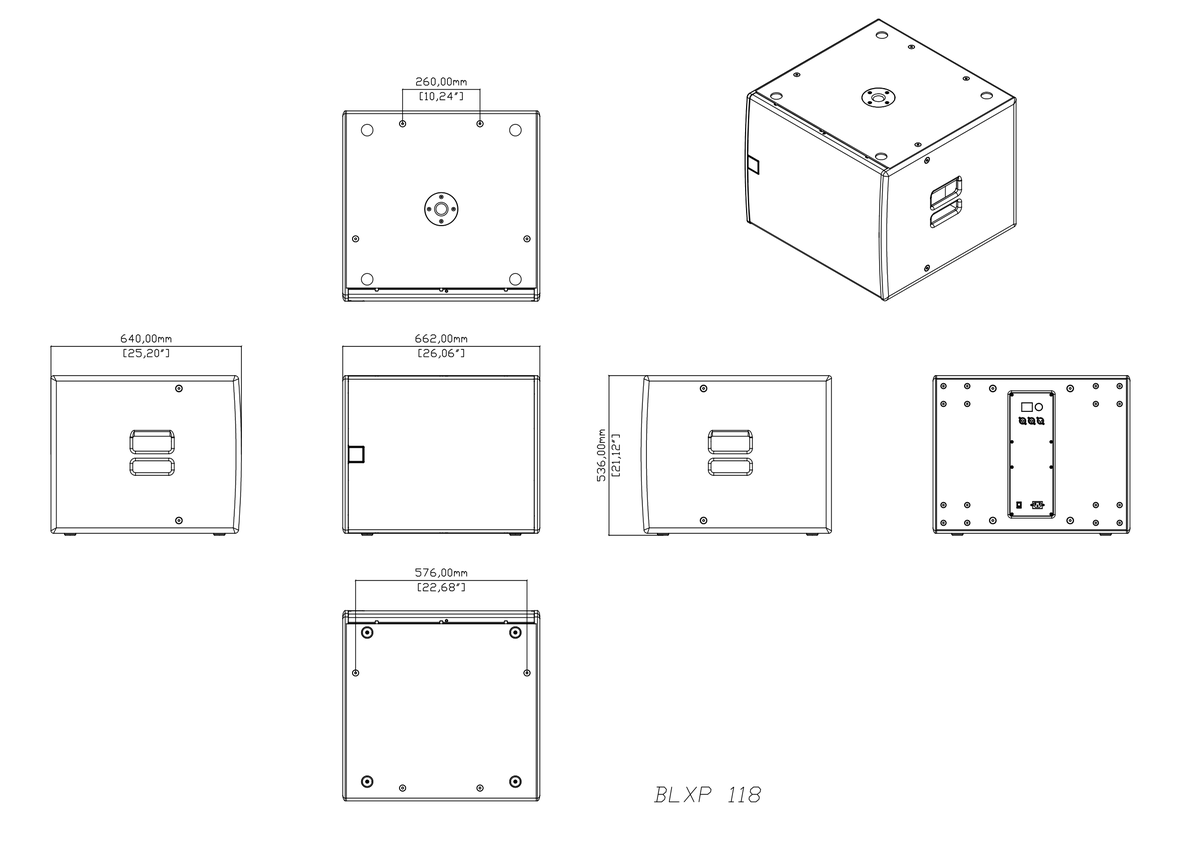

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Switch-mode, fixed frequency with PFC |
| FREQUENCY RESPONSE (5) | 42Hz –150Hz ±3dB -10dB @ 38Hz |
| DRIVER | 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet |
| MAXIMUM SPL (9) | 131dB continuous, 137dB peak (half space) |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 100Hz, active |
| INPUT CONNECTORS | 2 x female XLR/ 1⁄4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 kΩ balanced |
| 1⁄4” JACK TS INPUT IMPEDANCE | 1 MΩ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600Ω balanced |
| Input channel EQ | 3 band |
| Speaker EQ | 4 presets, including cardioid mode |
| Protection | Peak and RMS limiting, amplifier thermal protection |
| PEAK OUTPUT POWER | 2000W total |
| AVERAGE EFFICIENCY | 89% |
| COOLING | Convection |
| MAXIMUM AMBIENT TEMPERATURE | 35°C (95°F) for full output |
| AC INPUT OPERATING RANGE | 100 – 240V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 1000W Max |
| MAINS CONNECTOR | 3-pin IEC |
| ENCLOSURE | Birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel |
| FITTINGS | 16 x M10 inserts, pole-mount socket 2 x bar handles, provision for castors |
| DIMENSIONS | (W) 662mm x (H) 536mm x (D) 640mm (W) 26.1in x (H) 21.1in x (D) 25.2in |
| WEIGHT | 44kg (97lbs) |
