XP118 Martin Audio

18" Powered Portable Subwoofer

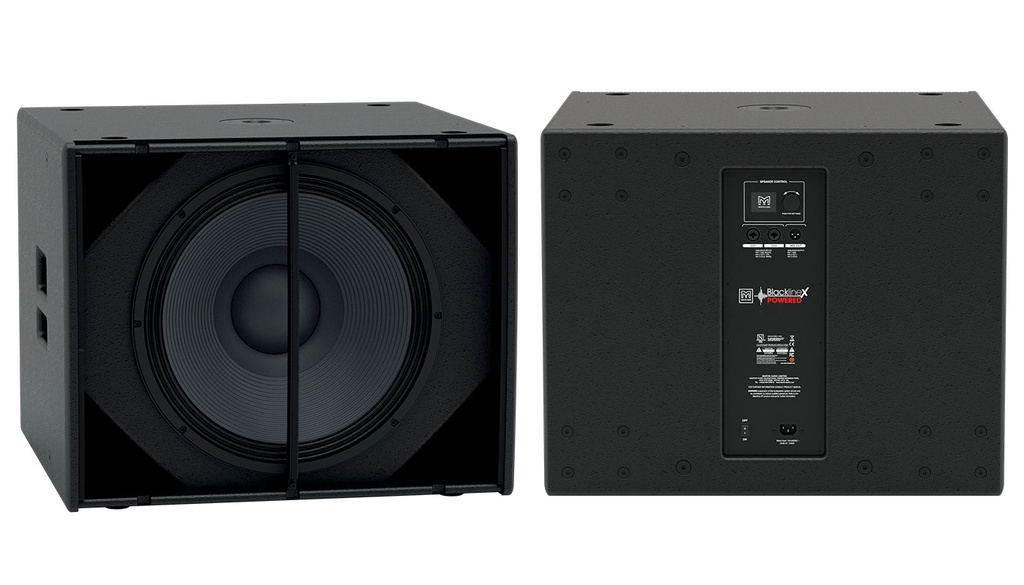

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.

Power

2,000 W

Weight

44 kg

Dimensions

640 x 662 x 536 mm

Request a Quote Data Sheet Manufacturer

Reference XP118 Brand Martin Audio

Description

About the XP118

Manufacturer detail for the XP118 by Martin Audio.

Technical Overview

Featuring a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels. A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low fr

Specifications

Technical Specifications

Full published figures for the XP118 by Martin Audio.

TYPE: Switch-mode, fixed frequency with PFC
FREQUENCY RESPONSE (5): 42Hz –150Hz ±3dB -10dB @ 38Hz
DRIVER: 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
MAXIMUM SPL (9): 131dB continuous, 137dB peak (half space)
DISPERSION (-6dB): Omnidirectional
CROSSOVER: 100Hz, active
INPUT CONNECTORS: 2 x female XLR/ 1⁄4” jack combo
MIC/LINE INPUT IMPEDANCE: 8 kΩ balanced
1⁄4” JACK TS INPUT IMPEDANCE: 1 MΩ unbalanced
MIX OUTPUT CONNECTOR: 1 x male XLR
MIX OUTPUT IMPEDANCE: 600Ω balanced
Input channel EQ: 3 band

Show all 29 specifications Show fewer specifications

Speaker EQ: 4 presets, including cardioid mode
Protection: Peak and RMS limiting, amplifier thermal protection
PEAK OUTPUT POWER: 2000W total
AVERAGE EFFICIENCY: 89%
COOLING: Convection
MAXIMUM AMBIENT TEMPERATURE: 35°C (95°F) for full output
AC INPUT OPERATING RANGE: 100 – 240V ~ AC, 50 - 60Hz
POWER FACTOR: > 0.98
NOMINAL POWER CONSUMPTION: 1000W Max
MAINS CONNECTOR: 3-pin IEC
ENCLOSURE: Birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel
FITTINGS: 16 x M10 inserts, pole-mount socket 2 x bar handles, provision for castors

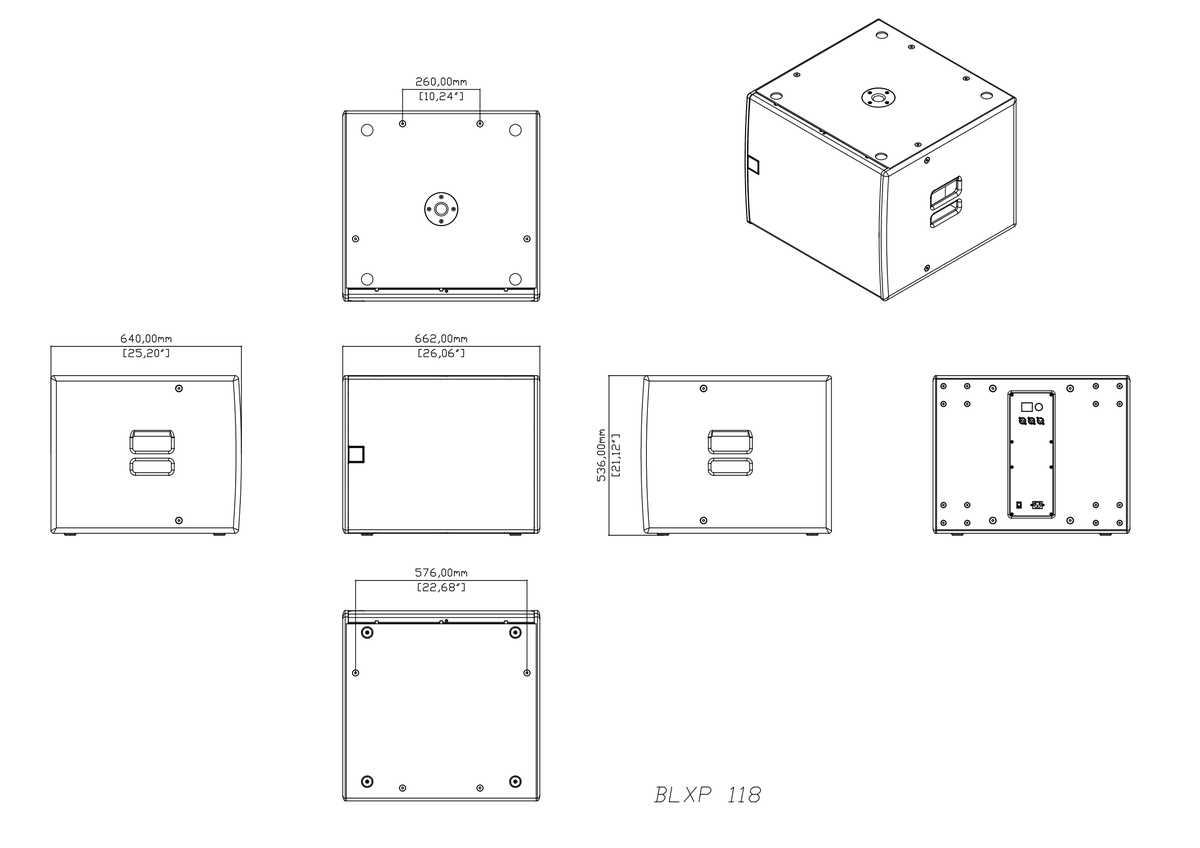

DIMENSIONS: (W) 662mm x (H) 536mm x (D) 640mm (W) 26.1in x (H) 21.1in x (D) 25.2in
WEIGHT: 44kg (97lbs)
Power Consumption: 2,000 W
