VPL-Extreme | Vision Professional Entertainment Lighting Equipment
Professional Entertainment Lighting solution by Vision - Available throughout the Middle East
Vision
Sophisticated moving head with broad color palette and RGBW color mixing with electronic shutter applications on beam and wash effect
VPL-Extreme Technical Specifications
Complete technical specifications and documentation for the VPL-Extreme by Vision

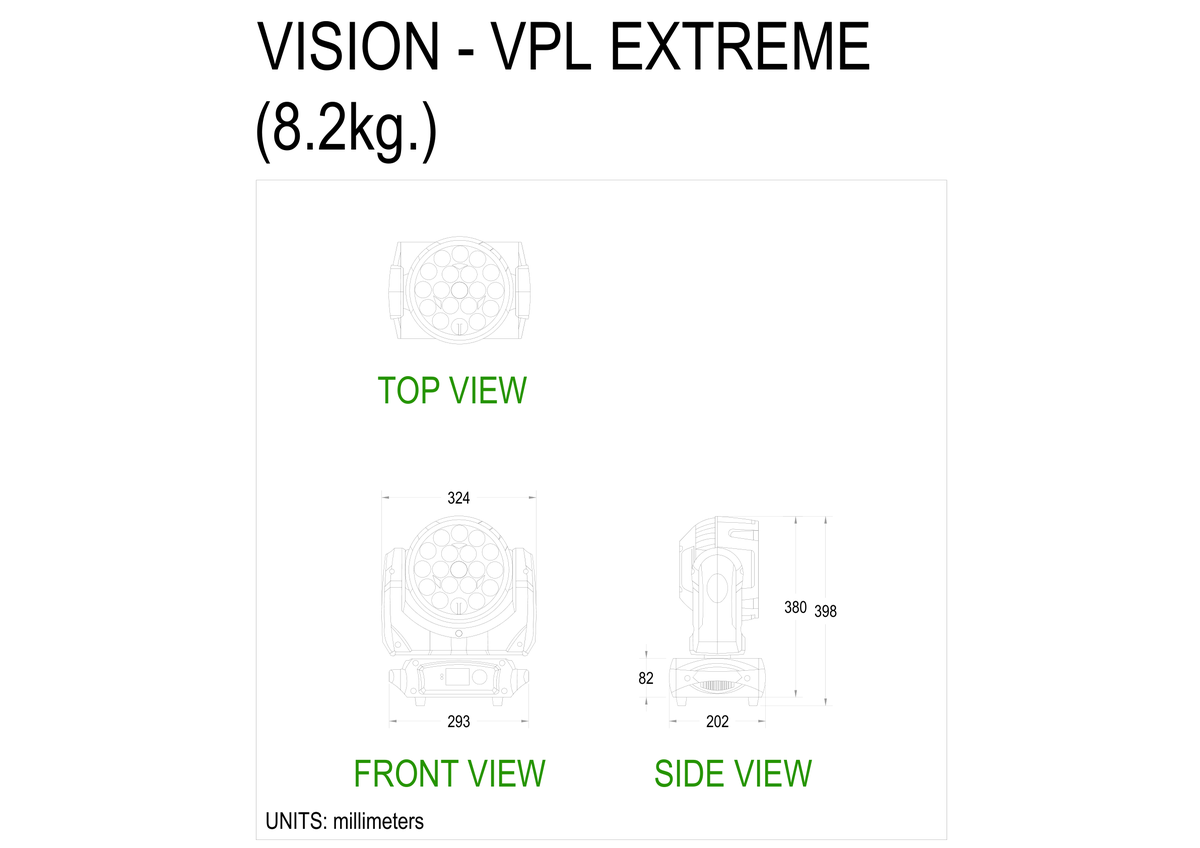

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Beam angle | 11° to 58° zoom |
| Color mixing | Broad color palette, RGBW color mixing |
| Beam color | RGBW wash color, mixing RGB |
| Color features | Eye-candy effects |
| Total output | 2000 lux at 2 meters for maximum beam angle 58°; 22600 lux at 2 meters for minimum beam angle 11° |
| Dimming | 0 - 100% smooth electronic dimming adjustment |
| Strobe | Electronic shutter apply in beam and wash effect |
| Control mode | DMX 512, auto, master-slave |
| DMX channels | 14CH or 25CH for selection |
| Movement | Pan 0 - 540°; tilt 0 - 212° |
| Pan/tilt motors | Three-phase step Motors, rapid movement and ultra quiet, ultra-high-speed 3-phase motors |
| IP rating | IP20 |
VPL-Extreme Downloads & Documentation
Access technical documentation, manuals, and resources for the VPL-Extreme by Vision
