VPL-Extreme · Vision Entertainment Lighting
Professional Entertainment Lighting solution by Vision - Available throughout the Middle East
Vision
Sophisticated moving head with broad color palette and RGBW color mixing with electronic shutter applications on beam and wash effect
VPL-Extreme at a Glance
Sophisticated moving head with broad color palette and RGBW color mixing with electronic shutter applications on beam and wash effect
Technical Specifications
Complete technical specifications and documentation for the VPL-Extreme by Vision

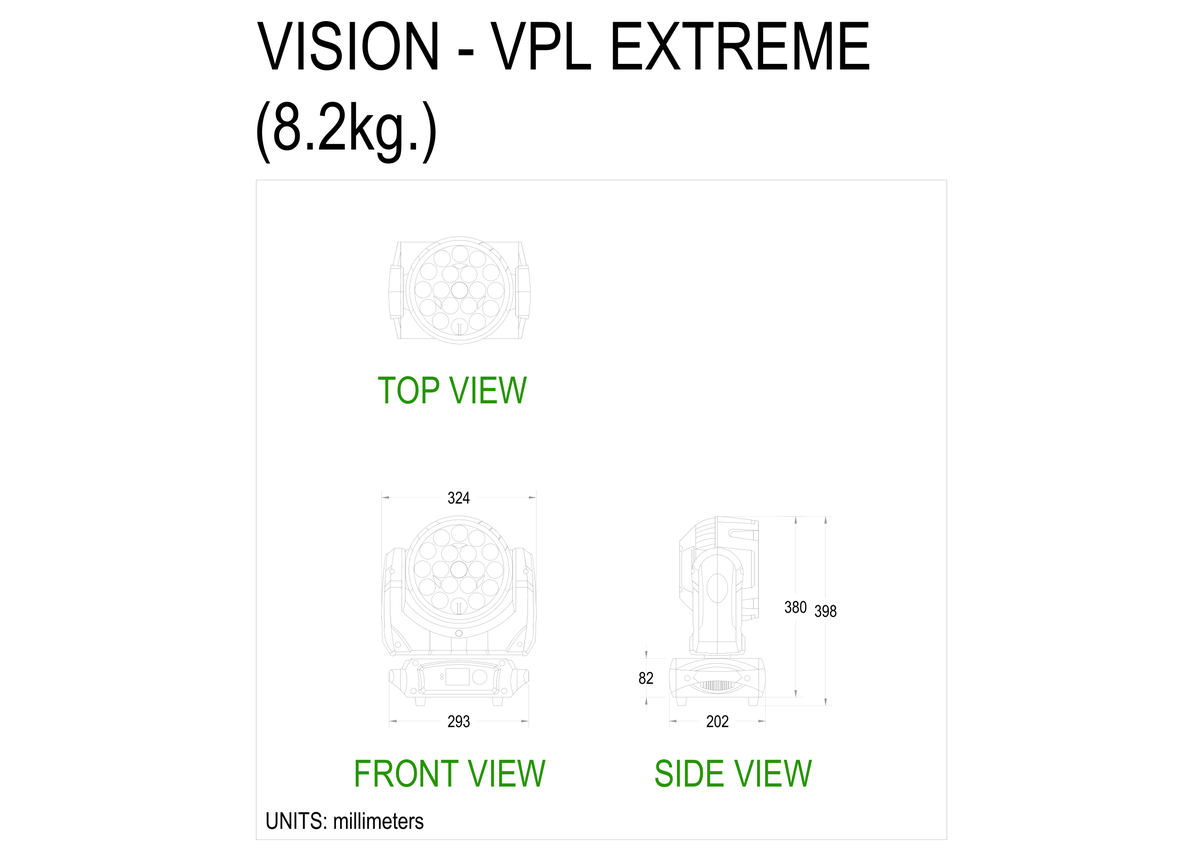

Technical Drawing
Product Specifications
| Specification | Value |
|---|---|
| Beam angle | 11° to 58° zoom |
| Color mixing | Broad color palette, RGBW color mixing |
| Beam color | RGBW wash color, mixing RGB |
| Color features | Eye-candy effects |
| Total output | 2000 lux at 2 meters for maximum beam angle 58°; 22600 lux at 2 meters for minimum beam angle 11° |
| Dimming | 0 - 100% smooth electronic dimming adjustment |
| Strobe | Electronic shutter apply in beam and wash effect |
| Control mode | DMX 512, auto, master-slave |
| DMX channels | 14CH or 25CH for selection |
| Movement | Pan 0 - 540°; tilt 0 - 212° |
| Pan/tilt motors | Three-phase step Motors, rapid movement and ultra quiet, ultra-high-speed 3-phase motors |
| IP rating | IP20 |
| Power Consumption | 245 W |
Downloads & Documentation
Access technical documentation, manuals, and resources for the VPL-Extreme by Vision
