Technical Overview
The ACP-55Tbrings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotel atriums and exhibition spaces to retail outlets, bars and restaurants. Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACP-55T
Technical Specifications
Complete technical specifications and documentation for the ACP-55TB by Martin Audio

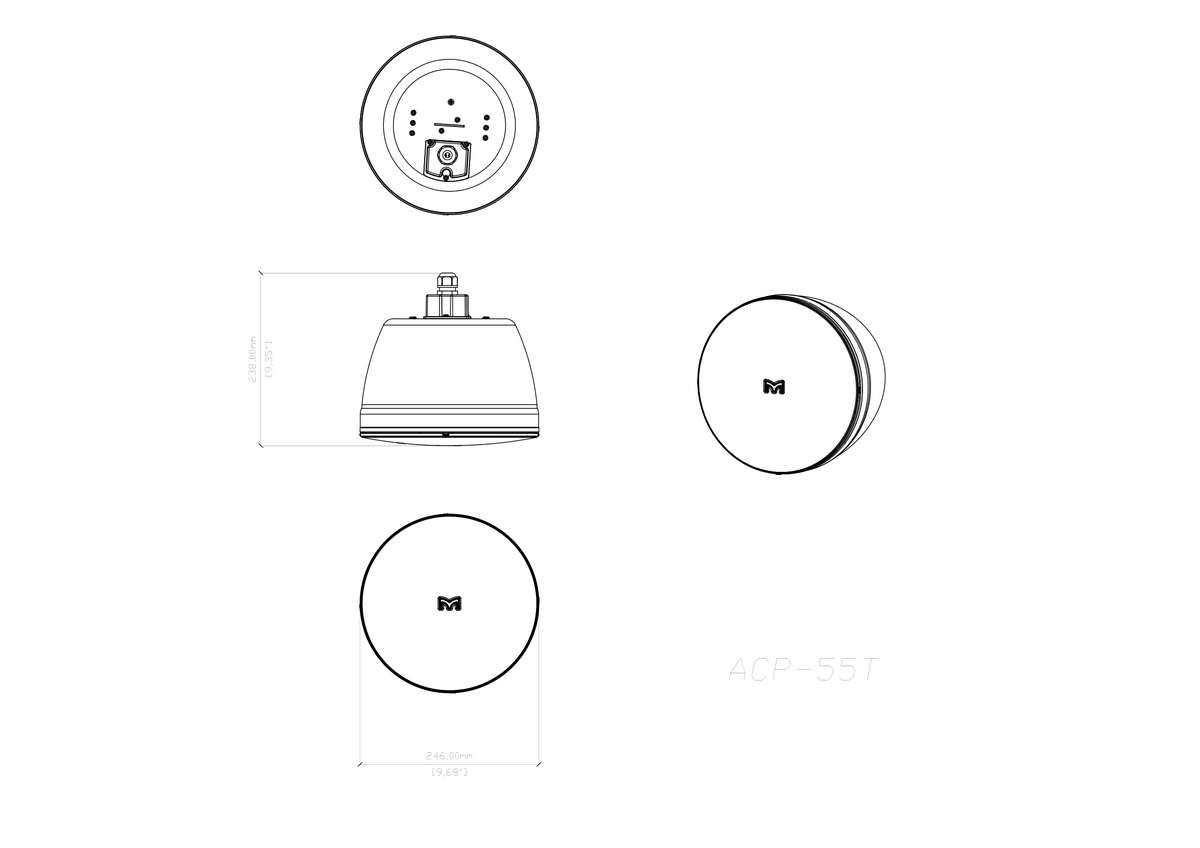

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Passive two-way pendant speaker, ported bass reflex |
| FREQUENCY RESPONSE (1) | 98Hz-20kHz ± 3dB -10dB @ 56Hz |
| DRIVERS | LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor |
| RATED POWER (2) | 50W AES, 200W peak |
| RECOMMENDED AMPLIFIER | VIA2004 (for low-impedance operation) |
| SENSITIVITY (4) | 86dB / 1W(4V) / 1m (full space) |
| MAXIMUM SPL (9) | 109dB peak |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 150° conical up to 7kHz |
| CROSSOVER | 3kHz passive (LF and HF auto-resetting fuses |
| TRANSFORMER TAPS | 70V: 30w / 15w / 7.5w / 3.75w 100V: 30w / 15w / 7.5w |
| RECOMMENDED HIGH-PASS FILTER | 60Hz 24dB/oct |
| ENCLOSURE | UL 94V-0 rated ABS baffle and enclosure |
| FINISH | Black or white |
| GRILLE | Perforated steel, powder-coated, bayonet fitting |
| CONNECTORS | Ceramic connector (in and link) |
| DIMENSIONS | (OD) 246mm x (D) 238mm (OD) 9.7in x (D) 9.35in |
| WEIGHT | 3.46kg (7.62lbs) |
