CDD15B-WR | Martin Audio Professional Passive Loudspeakers Equipment

Name: CDD15B-WR
Brand: Martin Audio
SKU: CDD15B-WR

Professional Passive Loudspeakers solution by Martin Audio - Available throughout the Middle East

15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker

15'' CDD Speaker WR Black

Description

Detailed information about the CDD15B-WR by Martin Audio

15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker - Black

Complete technical specifications and documentation for the CDD15B-WR by Martin Audio

Download PDF

Name	Value
TYPE	High-output, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5)	55Hz-18kHz ± 3dB -10dB @ 45Hz
DRIVER	LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER (2)	400W AES, 1600W peak
SENSITIVITY (8)	100dB
MAXIMUM SPL (9)	126dB continuous, 132dB peak
NOMINAL IMPEDANCE	8Ω
DISPERSION (-6dB)	100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER	1.6kHz passive
ENCLOSURE	68 litre, composite material
FINISH	Black or white as standard
PROTECTIVE GRILLE	Zinc plated mild steel with powder coated finish and weatherised backing
ENVIRONMENTAL	Rated at IP54
CONNECTORS	Low profile 20A push-lock, weatherproof input panel cover with cable gland
PIN CONNECTIONS	Left to right: Input+, Input -, Link -, Link+
FITTINGS	10 x M8 fly points

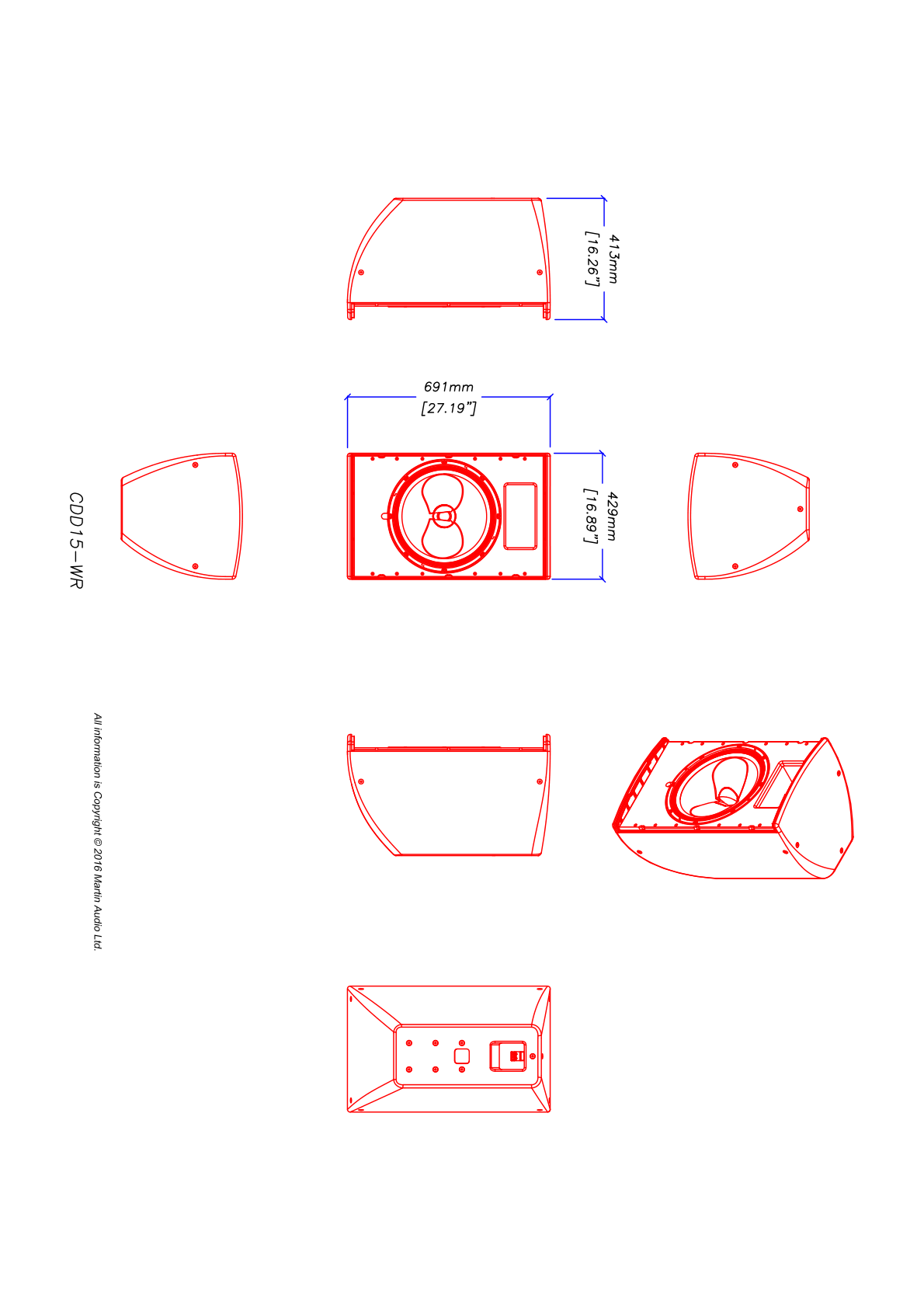

DIMENSIONS	(W) 429mm x (H) 691mm x (D) 413mm (W) 16.9ins x (H) 27.2ins x (D) 16.3ins
WEIGHT	28.3kg (62.4lbs)
