Description
Detailed information about the FP8 by Martin Audio
Technical Overview
Its multi-angle enclosure with flexible mounting options makes for discreet integration within architectural spaces — from churches, museums and galleries to theatres, bars and restaurants. It is also the perfect ultra-compact solution for rental companies and professional applications which benefit
Technical Specifications
Complete technical specifications and documentation for the FP8 by Martin Audio

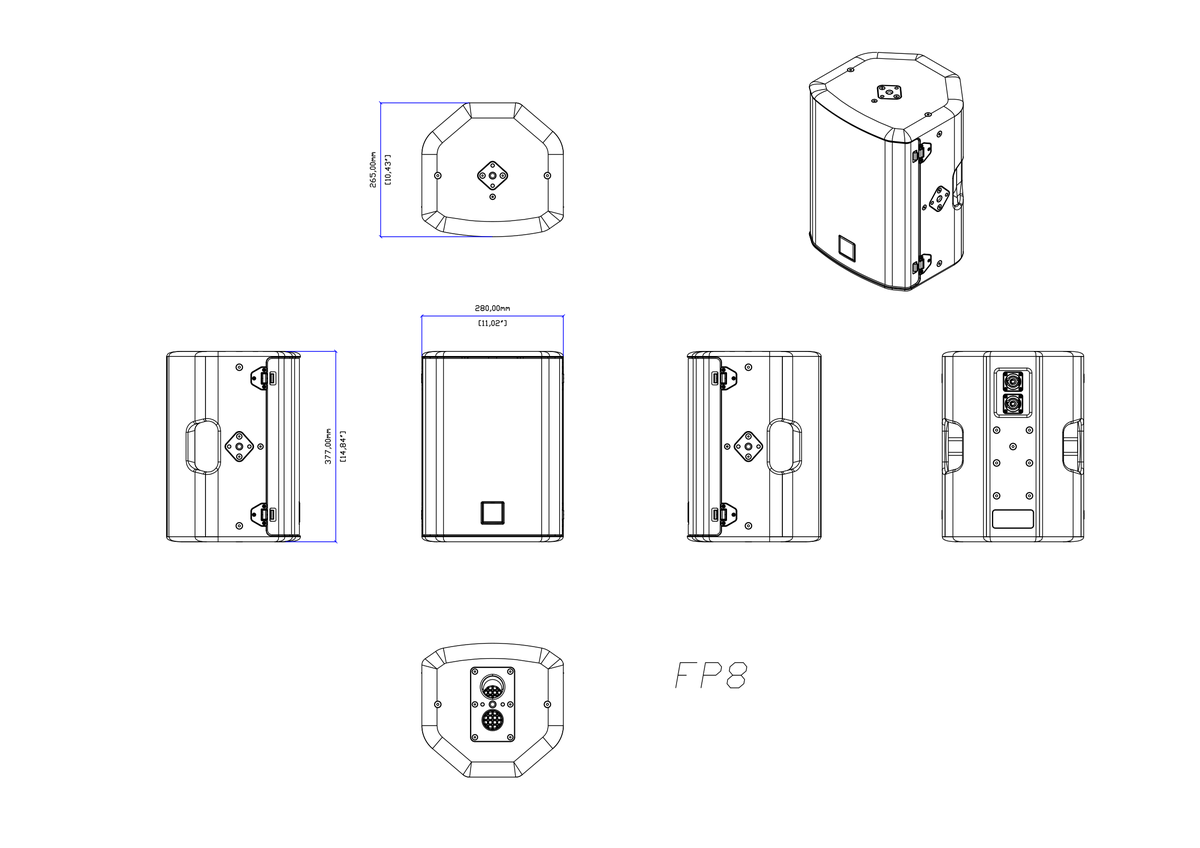

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| PRODUCT NAME | FP8 |
| TYPE | Coaxial passive 2-way |
| CROSSOVER FREQUENCY | 2.0kHz |
| FREQUENCY RESPONSE - 4 π (5) | 63Hz - 18kHz ± 3dB , -10dB @ 50Hz with preset |
| DRIVERS | LF: 8", 2" Voice coil, Neodymium Motor with flux stabilising rings HF: 1" exit, 1.7" Voice coil, Coaxial HT polymer dome compression driver |
| SENSITIVITY (2.83V 1m free-field) | 94dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | 250W AES, 1000W peak |
| MAXIMUM SPL | 118dB Cont, 124dB Peak (6dB) |
| DISPERSION (-6dB) | 90° H, 70° V |
| CONNECTORS | NLT4MPXX-BAG speakons (pair) |
| PIN CONNECTIONS (INPUT) | 1+ / 1- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| ENCLOSURE | Durable birch plywood |
| FINISH | Black hardwearing paint |
| GRILLE | Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver |
| IP RATING | IP54 when fitted with two speakON NLT4FXX connectors |
| FITTINGS | 4 x M10, 15 x M6 fixing points, dual pole-mount socket, 2 x handle pockets |
| DIMENSIONS | (W) 376mm, (H) 280mm, (D) 265mm (W) 14.8ins, (H) 11.0ins, (D) 10.4ins |
| WEIGHT | 9.3kg (20.5lbs) |
| VOLUME | 13L |
| ACCESSORIES | Separate landscape and portrait touring and install yokes, wall bracket, rigging bar and transit cover |
